125
ELECTRO-HYDRAULIC SYSTEM

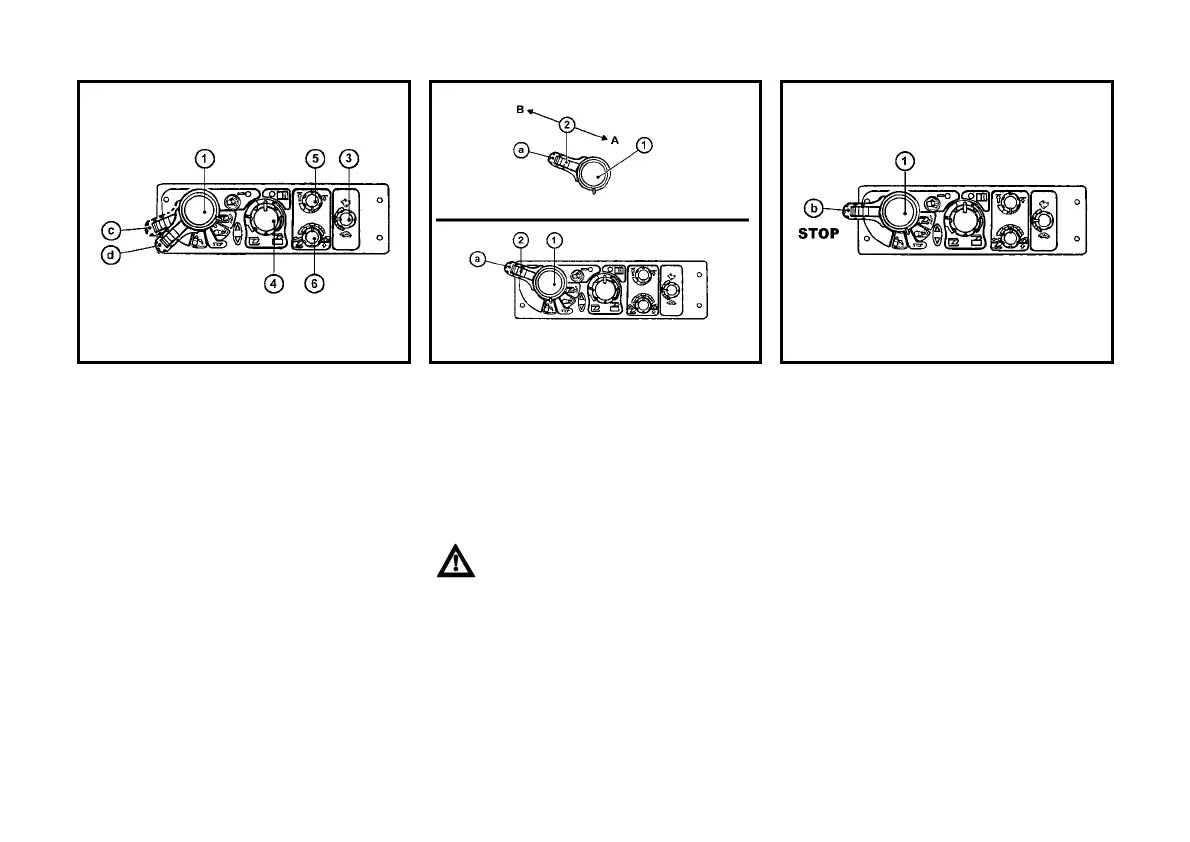

F_02_165 F_02_166 F_02_167
QUICK SINKING
Lever (1) in position (d) - free position.
You must hold the lever in this position;
after releasing the lever will return to po-
sition (c) - the system works in accor-
dance with the setting of controls (3), (4),
(5) and (6).
TRANSPORT OF IMPLEMENTS
Shift the lifting lever (1) to position "a"
and block it with the moving latch (2).
Blocking the lifting lever (1) by the mov-
ing latch (2) in position (a):
A - Lever movement blocked
B - Lever movement not blocked
When the tractor with an attached
implement is stopped, the imple-
ment must be lowered onto the
ground (it must not be left in the
lifted position).
STOP POSITION
By moving the lever (1) to position (b) -
STOP position - you will immediately
stop the movement of the three-point
hitch.
