164
ELECTRIC INSTALLATION

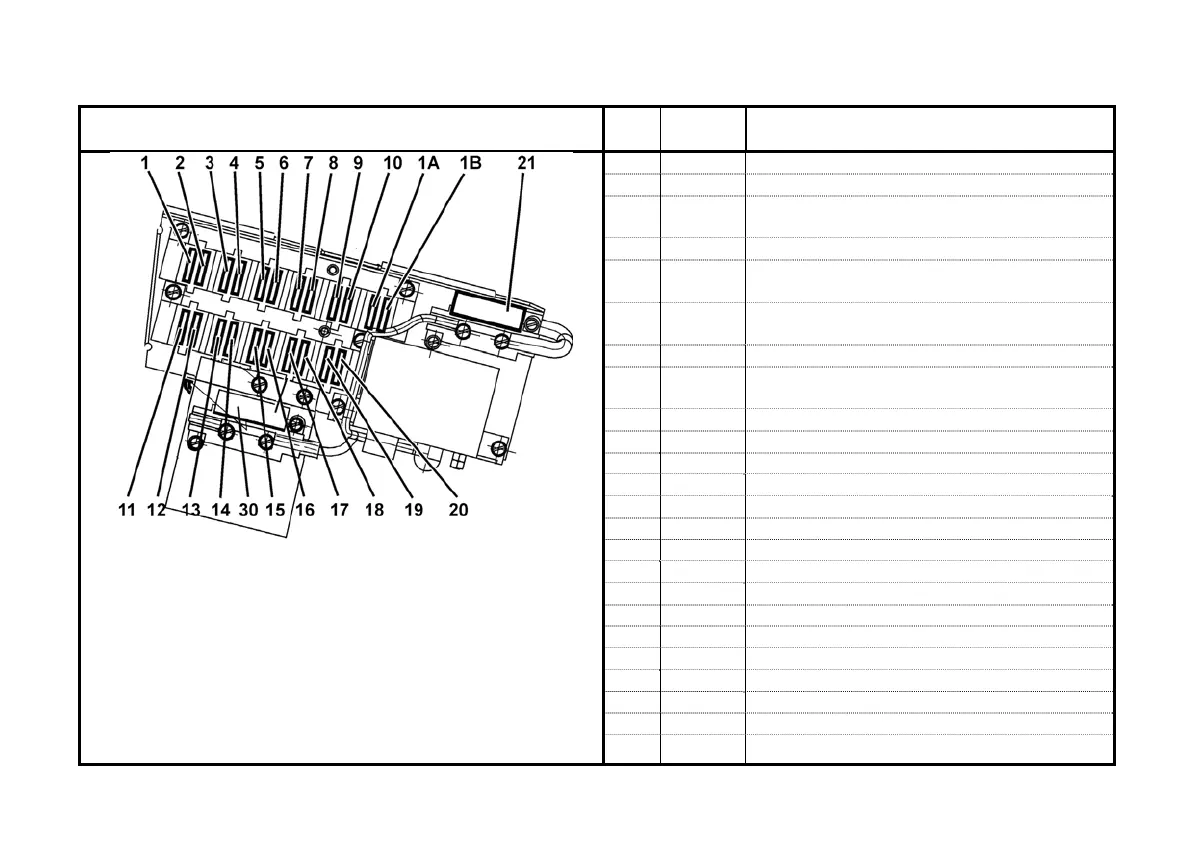

LAYOUT OF FUSES IN THE FUSE BOX
Pos. Fuse
rating
Protected system
1 15A Interrupter of warning lights, Stop lights
2 15A Horn, beacon, EHR
3 15A Control of front driving axle, control of differ-
ential lock, dashboard power supply,
4 15A High beams with indicator
5 15A Left marker lights, dashboard illumina- tion,
registration plate illumination
6 15A Right marker lights, rear working headlight
with indicator
7 15A Right low beams, fog light + indicator
8 7,5A Left low beams, indicator of lights in the
mask/on the roof of the tractor
9 15A Working lights in the front mask
10 3A Front VH Zuidberg
1A 15A Diesel particle filter
1B 20A
11 15A Front and rear wipers, washer, radio “15“
12 20A Heating fan, radio “30“
13 15A Recirculation, cigarette lighter
14 7,5A Air-conditioning (compressor clutch)
15 15A mirror heating
16 15A rear window defroster
17 15A Driver’s seat compressor
18 20A 3-pin socket
19 15A Front working headlamps on the roof
20 15A Rear working headlamps on the roof
F13BN028
21 80A Heating plug
30 30A Heating
