33
GETTING TO KNOW THE TRACTOR
E110 E111 E112

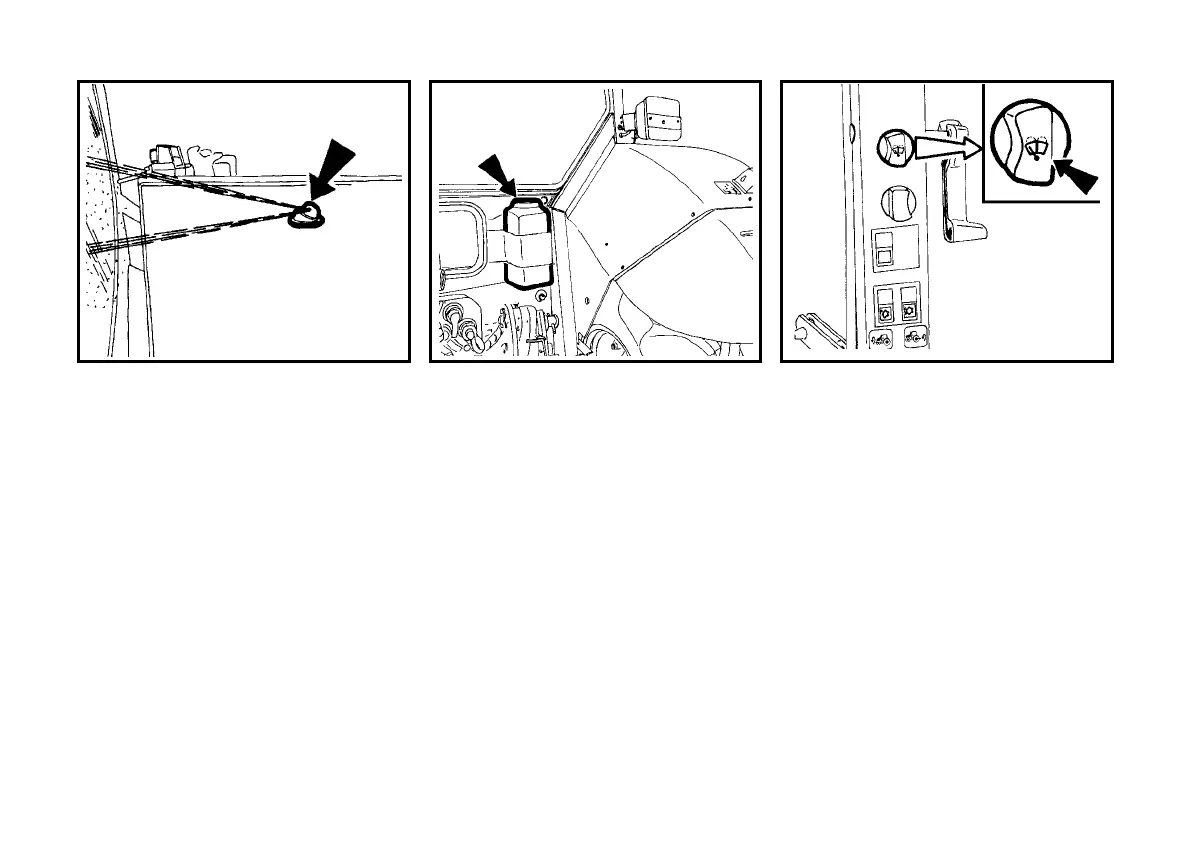

WASHER NOZZLE
The nozzle is installed on the bonnet in
front of the windscreen and adjustable
using a needle or steel wire with diame-
ter 0.8mm.
WASHER TANK
The tank is installed on the rear wall of the
cabin on the outer side.
Volume of the tank is 2.5 litres. In winter
season it is necessary to fill it with anti-
freeze mixture for windscreen washers.
WASHER ACTIVATION
The key in the ignition box shall be in
position II. The windscreen washer can
be activated after pressing of the front
two-speed wiper on the right column of
the cabin. The maximum time of con-
tinuous run of the washer pump is 20 s.
