ELECTRIC INSTALLATION
QQQ_G612

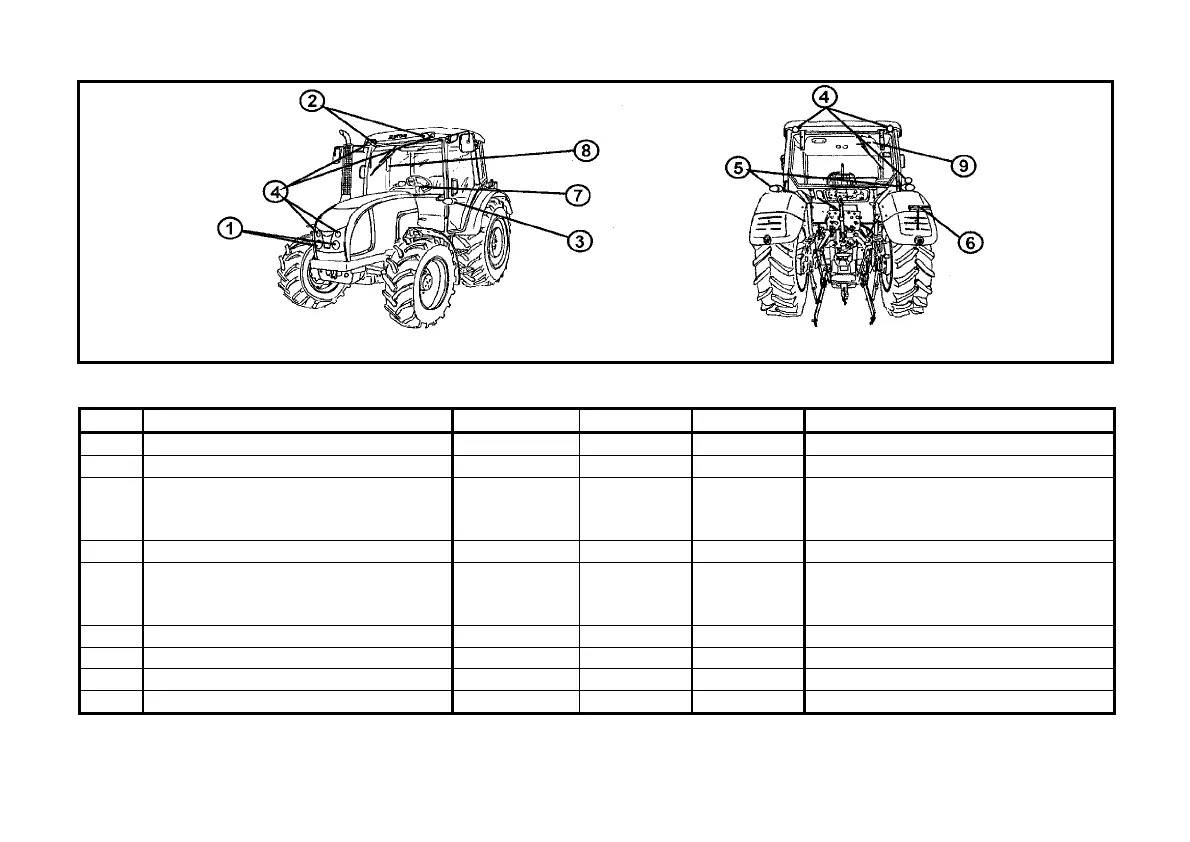

LIST OF LAMPS
Pos. Locations of lamps Voltage Power Socket Note
1 Main headlights H4 12V 55/60W P 43t
2 Roof low beams H7 12V 55W PX26d
3 Front combined lights
Direction indicators P21W 12V 21W BA 15s
Marker lights R5W 12V 5W BA 15s
4 Working and ploughing headlamps 12V 65W PGJ19-5
5 Rear combined lights
Tail and stop lamps 12V 5 /21W BAY 15d
Direction indicators 12V 21W BA 15s
6 Registration plate illumination C5W 12V 2x5W SV 8,5-8
7 Dashboard 12V 2W W2x4,6d Illumination
8 Lighting of the cabin 12V 5W SV 8,5-8
9 Illumination of the heating panel 12V 1,2W W2x4,6d
