ZIEHL-ABEGG ECblue BASIC-MODBUS - Electrical Installation; Version with Connection Cables

•
Motors are not balanced as standard, a complete balancing with mounted fan impeller is necessary.
The balancing must be done on the fan impeller. The pertinent regulations must be observed.
Permissible tightening torques M
A
Motor size
D G
Thread size M6 M8
Property class 8.8, friction coefcient µges = 0.12
9.5 Nm 23 Nm
Screw penetration
≥ 0.83 x d ≥ 0.83 x d
Max. permissible screw overhang
1.0 mm 1.5 mm
5 Electrical installation
5.1 Version with connection cables
Information
•
In versions with connecting leads the connection is made to the colour coded wires. Note the cable
bands on the connecting leads and the respective connection diagram.
•
The type, length, colour coding and connection assignment of the connecting leads may vary
depending on the version.
•
Read the following chapter “Version without connection cables” for a new connection to the
terminals in the terminal compartment.

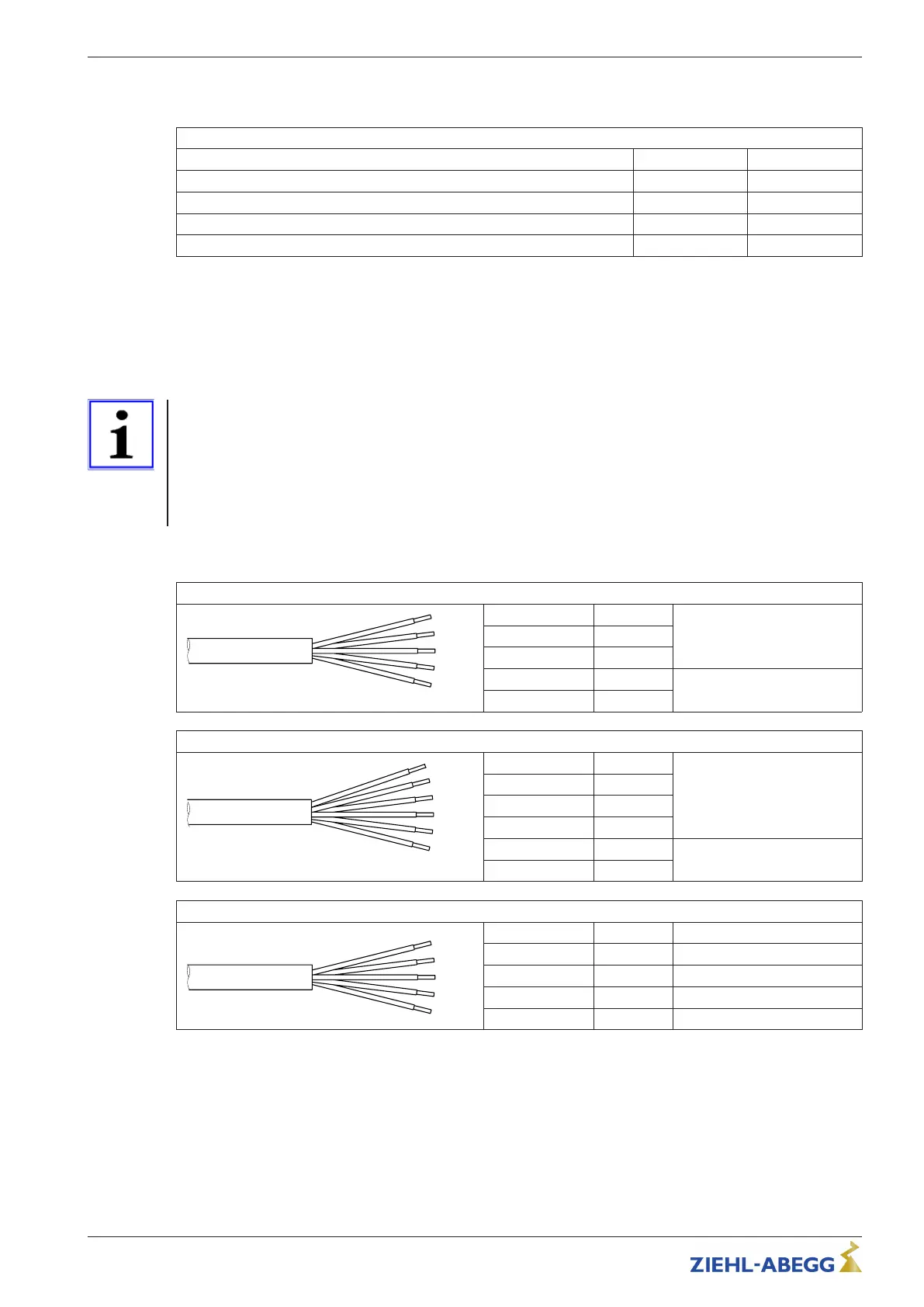

ECblue BASIC connection version example
1 ~ ECblue, for line and relay: hose cable 5 x 1.5 mm
2
(LiF9Y11Y-JB)
BN
BU
GNYE
WH
WH
brown L1
Lineblue N
green-yellow PE
white 11
Relay
white 14 K1
3 ~ ECblue, for line and relay: hose cable 6 x 1.5 mm
2
(LiF9Y11Y-JB)
BK
GNYE
WH
WH
BN
BU or GY
brown L1
Line
blue or grey L2
black L3
green-yellow PE
white 11
Relay
white 14 K1
1 ~ and 3 ~ ECblue, for control: hose cable 5 x 0.5 mm
2
(LiF9Y11Y-0B)
YE
BU
GN
RD
BN
yellow E1 Analog In 1
blue GND
green D1 Digital In 1
red 10V DC Out
brown 24V DC Out
Quick Start Guide ECblue BASIC-MODBUS, ECblue BASIC Electrical installation
L-BAL-F078-GB 2024 Index 005 Part.-No. 00706648-GB
10/32
