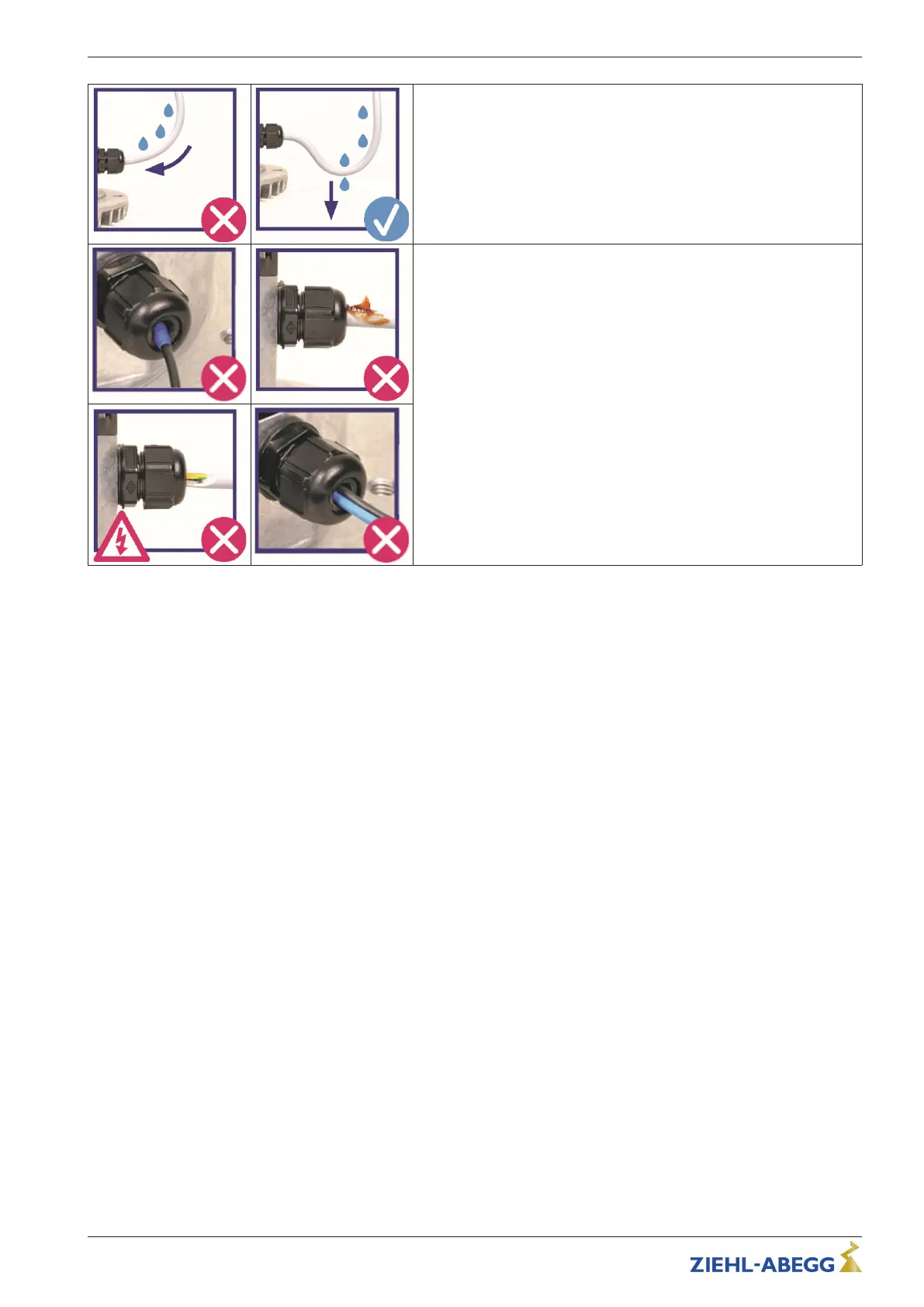

Cables and installation position
" Depending on the installation position and load, run the connecting
cables to the cable gland from below or fit a water draining pipe elbow.
Note
" Do not use any additional cable sheathing (e.g. with insulating tape or
shrink hose) in the area of the sealing ring.
" The cable must be dry and free of contamination (grease, dust or
other impurities).
" Use of a damaged cable is not allowed.
" Two lines may only be fed through one cable gland with the sealing
insert for two lines.
" When using the seal insert for two cables it is not permissible to use
the corresponding cable gland with only one cable.
" Only use cables with a cylindrical cross-section. For other cross-
sections (e.g. ribbon cables), special seal inserts are required.
Quick Start Guide ECblue BASIC-MODBUS, ECblue BASIC Electrical installation
