Zippie Salsa - Page 23

ZIPPIE SALSA & SALSA 23

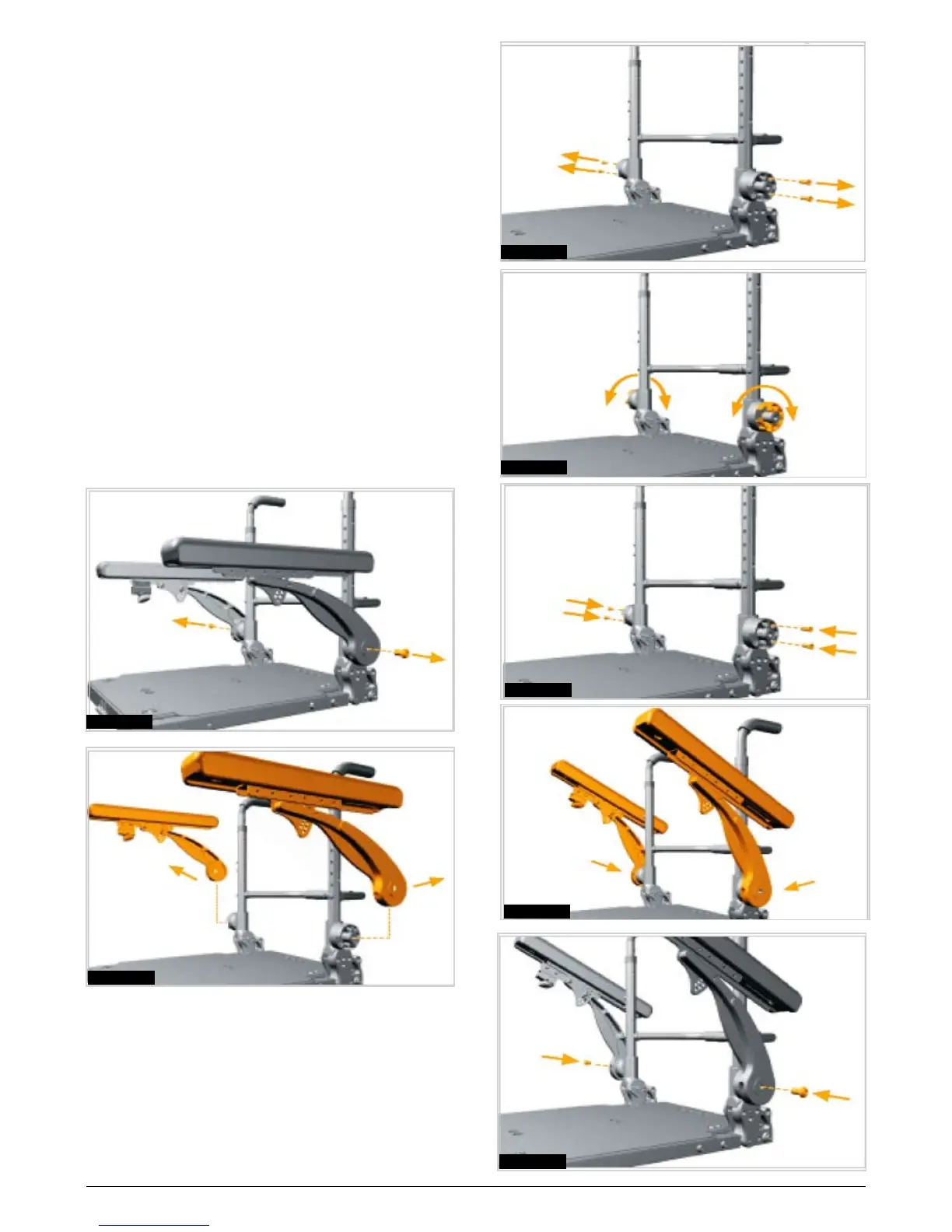

2. Basic coarse adjustment.
PART 1
To achieve more than one inch of adjustment, remove 1.
the 6mm armrest rotation bolts on both sides of the
seat (Fig. 5.23).
Remove both armrest assemblies. (Fig. 5.24)2.
Remove both sets of 4 mm armrest adjustment ring 3.
bolts (Fig. 5.25).
Rotate the armrest height adjustment rings (Fig. 4.
5.26) to match the desired height designated in the
Configuration Chart (Fig. 5.35) on page 25.
Replace both sets of armrest adjustment ring bolts 5.
according to the Configuration Chart. (Fig. 5.27)
Use 10 N/m or 88.5 in/lb of torque.6.
Replace both armrest assemblies. (Fig. 5.28) 7.
Replace the armrest pivot bolts on both sides of the 8.
seat, but do not tighten completely. (Fig. 5.29)
Fig. 5.23
Fig. 5.24
Fig. 5.25
Fig. 5.26
Fig. 5.27
Fig. 5.28
Fig. 5.29
