Zippie Salsa - 16 ZIPPIE SALSA - SALSA M Battery Wiring

70 ZIPPIE SALSA & SALSA M

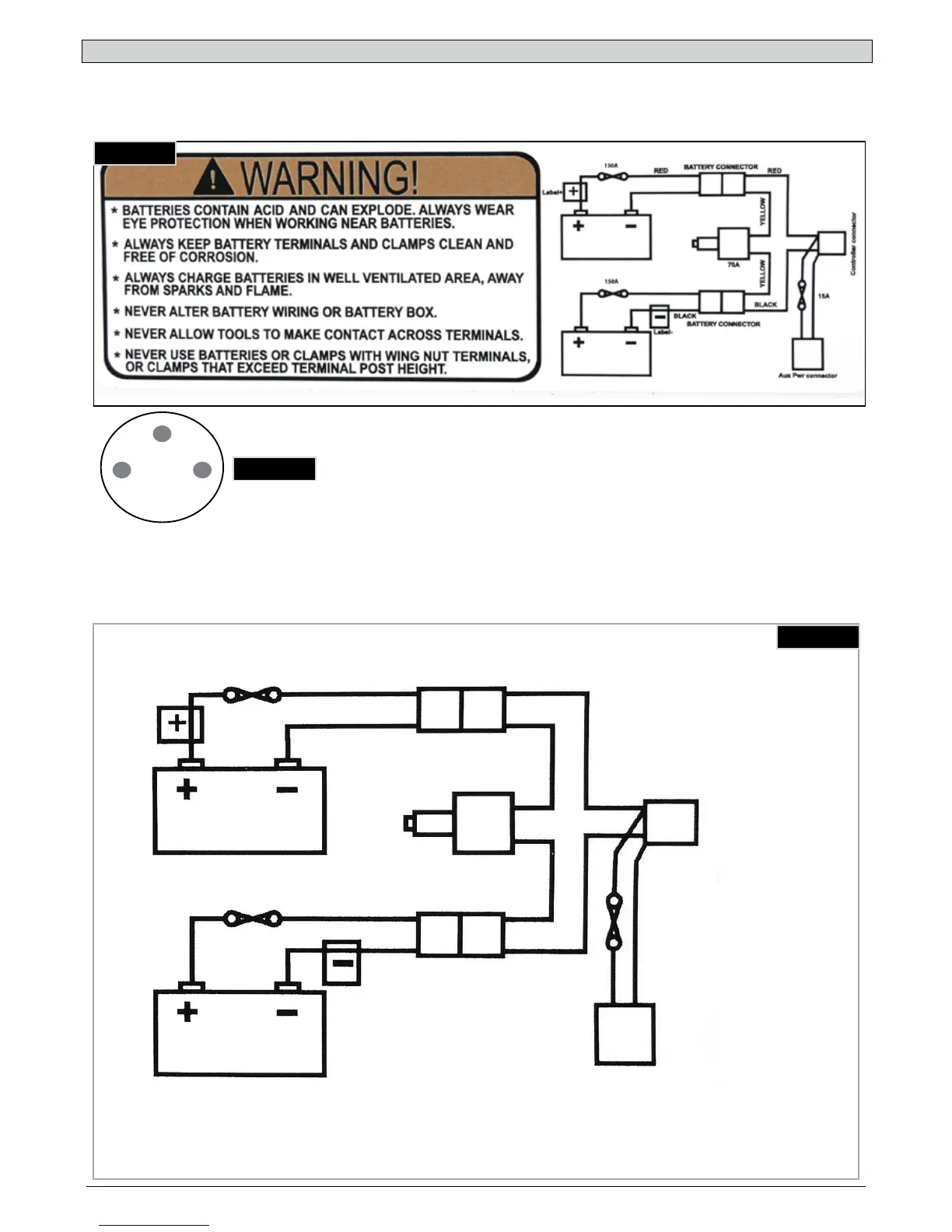

16 ZIPPIE SALSA - SALSA M Battery Wiring Diagram
Charger Socket:
Pin 1: Battery Positive
Pin 2: Battery Negative
Pin 3: Inhibit
1 2
3
150 A
150 A
BLACK
BLACK
RED
RED
YELLOW
BATTERY CONNECTOR
BATTERY CONNECTOR
Fig. 16.1
Fig. 16.2
Fig. 16.3
AUXILIARY POWER CONNECTOR
CONTROLLER CONNECTOR
15 A
70 A
