3. Move the right side seat rail , armrest and backrest
assembly to the desired position. Replicate position
settings used for the left side (Fig. 6.9).
4. Replace the width adjustment bolts (A) and the towel bar
adjustment bolt (B). (Use 10 N/m or 88.5 in/lb of torque for
A and B) (Fig. 6.10).
6.8 Seat Depth Adjustment
Remove the 5mm depth adjustment bolts from both 1.
sides of the seat (Fig. 6.11).
2. Slide the rear backrest and armrests into the desired
seat depth position. Reference seat depth position
patterns (A) (Fig. 6.12).
3. Replace both sets of depth adjustment bolts.
Use 20 N/m or 177 in/lb of torque (Fig. 6.13).
6.9 Backrest Angle Adjustment
Remove the 5mm backrest bracket index bolts (A) on 1.
both sides of the backrest. Loosen the 5mm backrest
bracket pivot bolts (B) on both sides of the backrest.
NOTE: The index bolt (A) may be in a different starting
position than shown below in Fig. 6.14.

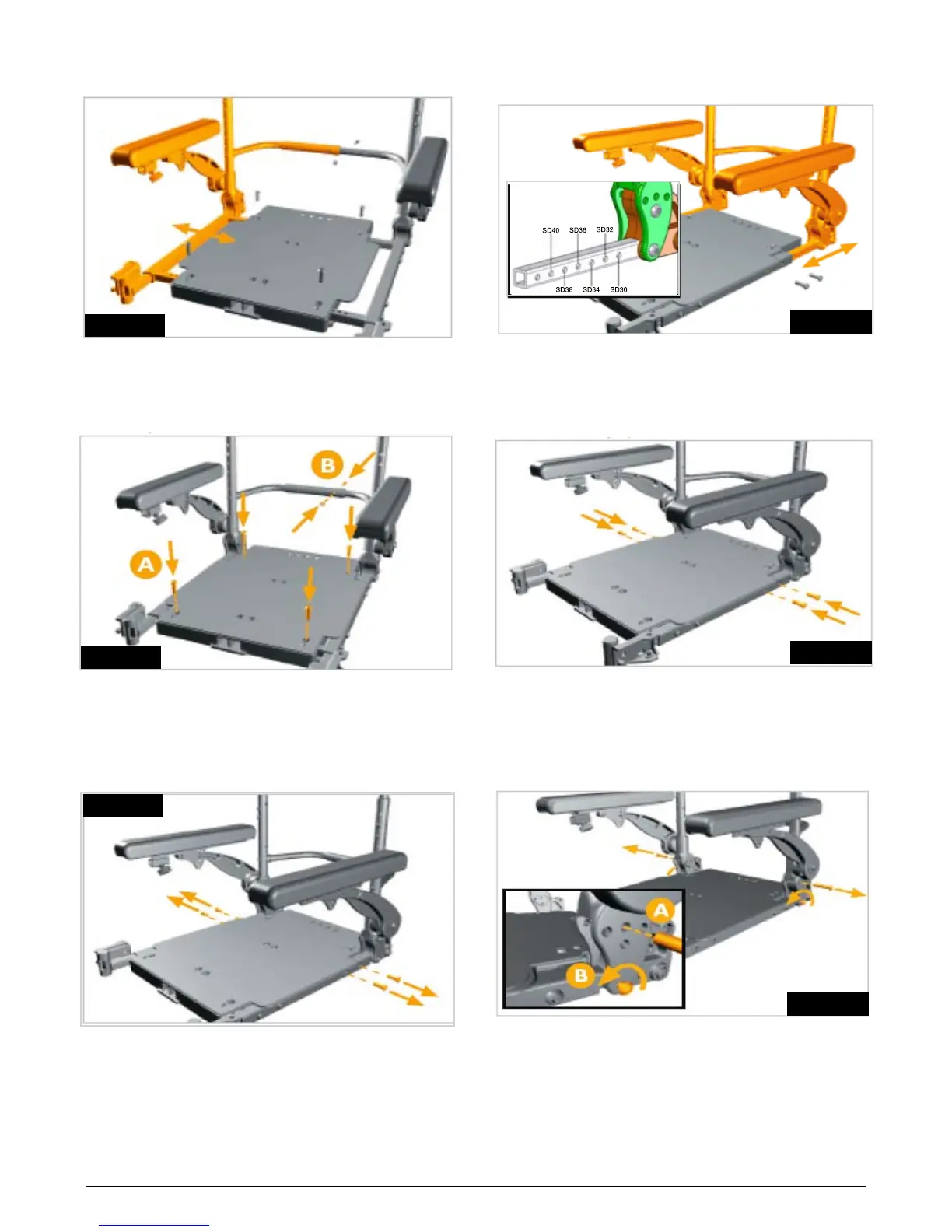

Fig. 6.9
Fig. 6.10
Fig. 6.11
Fig. 6.13
Fig. 6.12
Fig. 6.14
