Zippie Salsa - Back Height Adjustment

ZIPPIE SALSA & SALSA 33

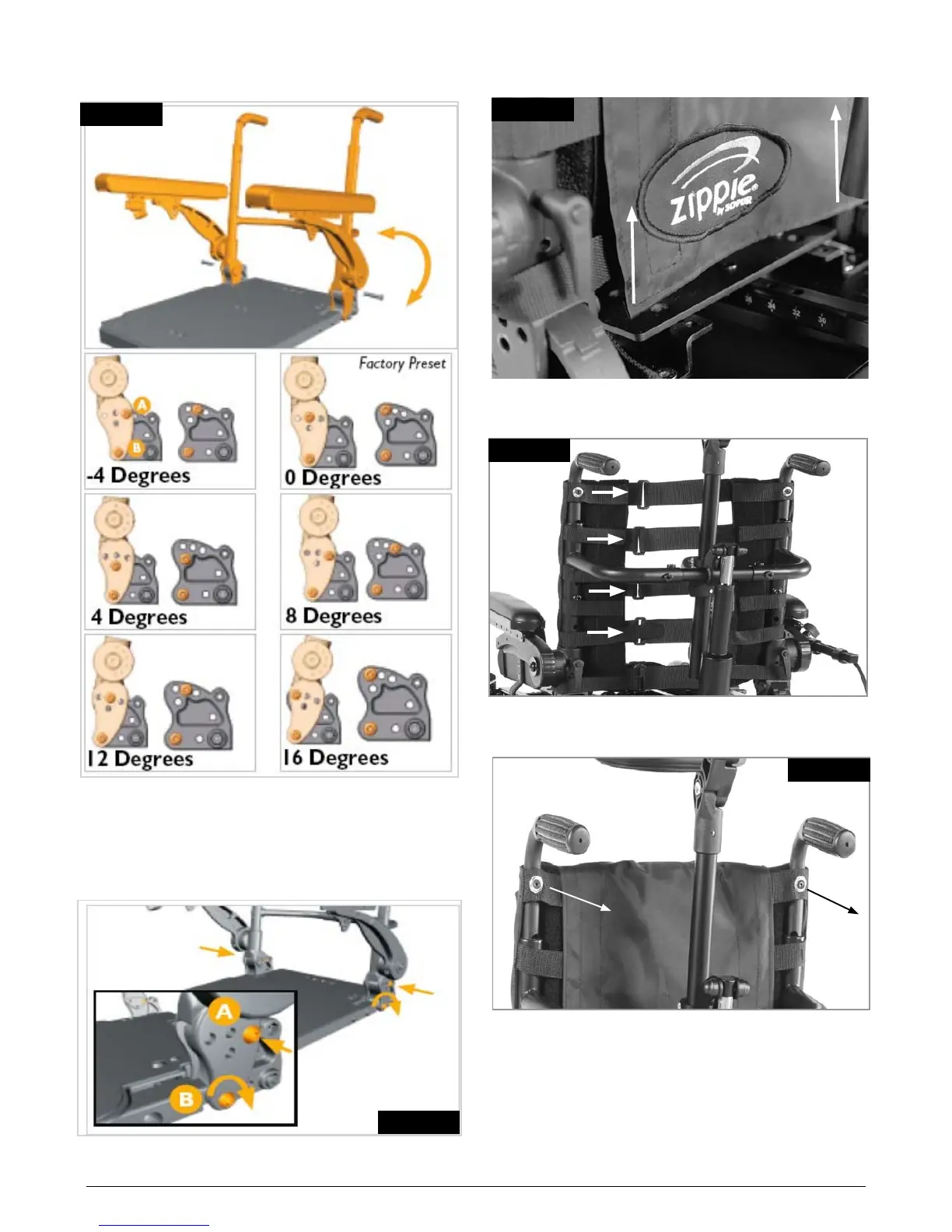

2. Tilt the backrest assembly forward or backward to the
desired angle. See angle configurations below (Fig.
6.15).
3. Reinsert and tighten both backrest bracket index bolts
and bracket bolts (A & B). Use 20 N/m or 177 in/lb of
torque (Fig. 6.16).
NOTE: The figures below represent the 8°angle.
6.10 Back Height Adjustment
Begin by removing the upholstery cover (Fig. 6.17).1.
Loosen the upholstery straps. It is not necessary to 2.
remove the upholstery (Fig. 6.18).
Remove the top upholstery screws. The upholstery can 3.
now be moved and vertically compressed to provide
access to the hidden Phillips-head bolts (Fig. 6.19).
Fig. 6.16
Fig. 6.15
Fig. 6.17
Fig. 6.18
Fig. 6.19
