Zippie Salsa - 6 Seating

ZIPPIE SALSA & SALSA 29

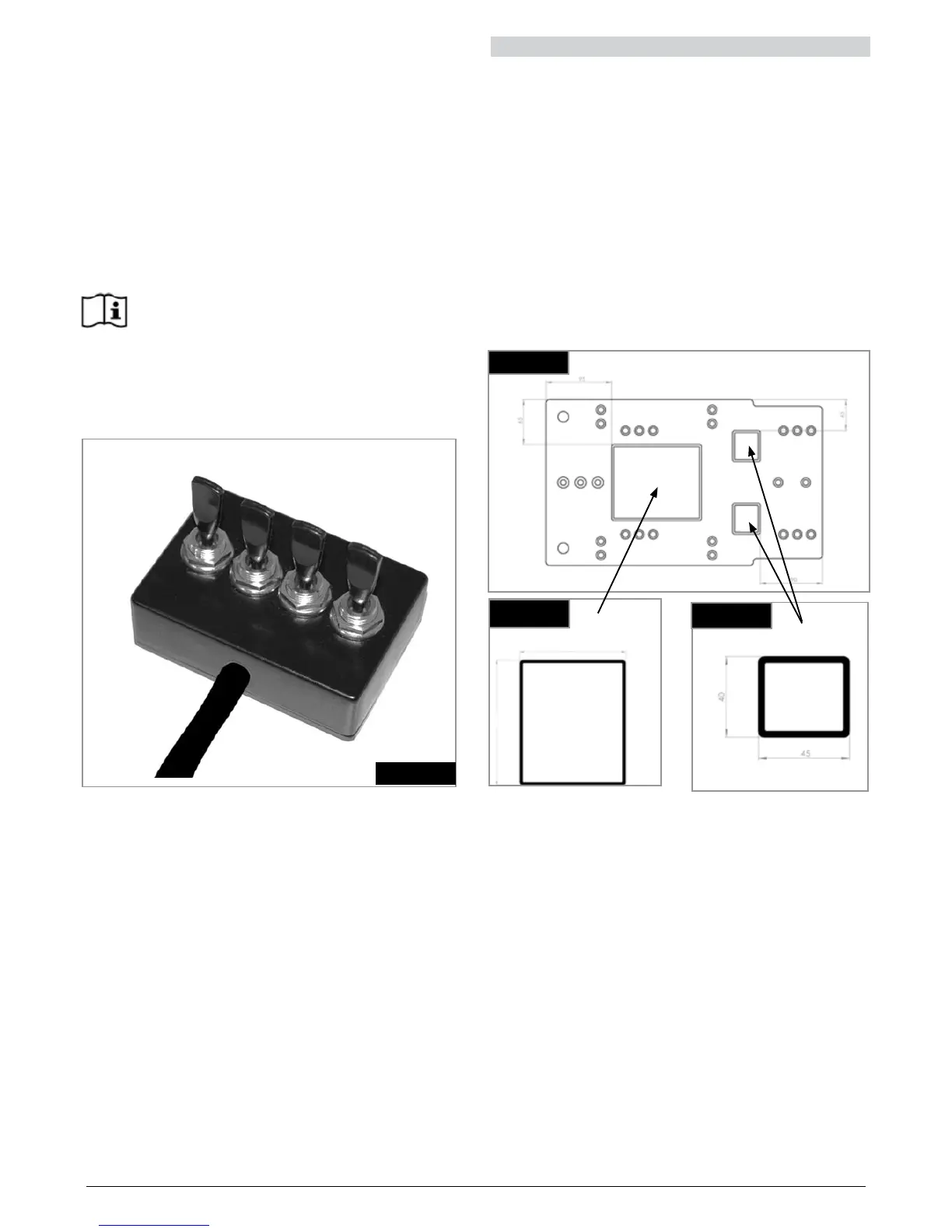

Quickie Direct Actuator Control Box:
The direct actuator switches can operate any factory
approved actuator. Operation is dependent on what options
are fitted to your wheelchair. To operate the legrests, seat
tilt, seat lift or back rest recline.
• Pushthetoggleswitchfortherelevantactuatorforward
until you reach the required angle/height.
• Releasethetoggleswitchandtheactuatorwillstop.
When the actuator reaches its maximum/minimum position
do not hold the toggle switch in its operating position as
this could damage the actuator. (Fig. 5.49)
R-net Control
Please refer to your R-net Owner’s Manual for
details.
Fig. 5.49
6.0 Seating
6.1.1 Solid seat.
Theareasdenedbylabelsontheseatplatecanbeused
tohelptathirdpartyseatingsystem.
In the base plate, drill holes with a minimum gap of 20
mm should be positioned in the small area 1 (Fig. 6.01) or
in the large area 4 (Fig. 6.02) (max. Ø 7 mm). The areas
inwhichdrillholesmaybemadearedenedinFig.6.0-
6.02.
Fig. 6.0
Fig. 6.01
1 DRILLING
Max. Ø = 7m
Fig. 6.02
130
110
4 DRILLINGS
Max. Ø = 7m
Min. Hole
Distance 20mm
