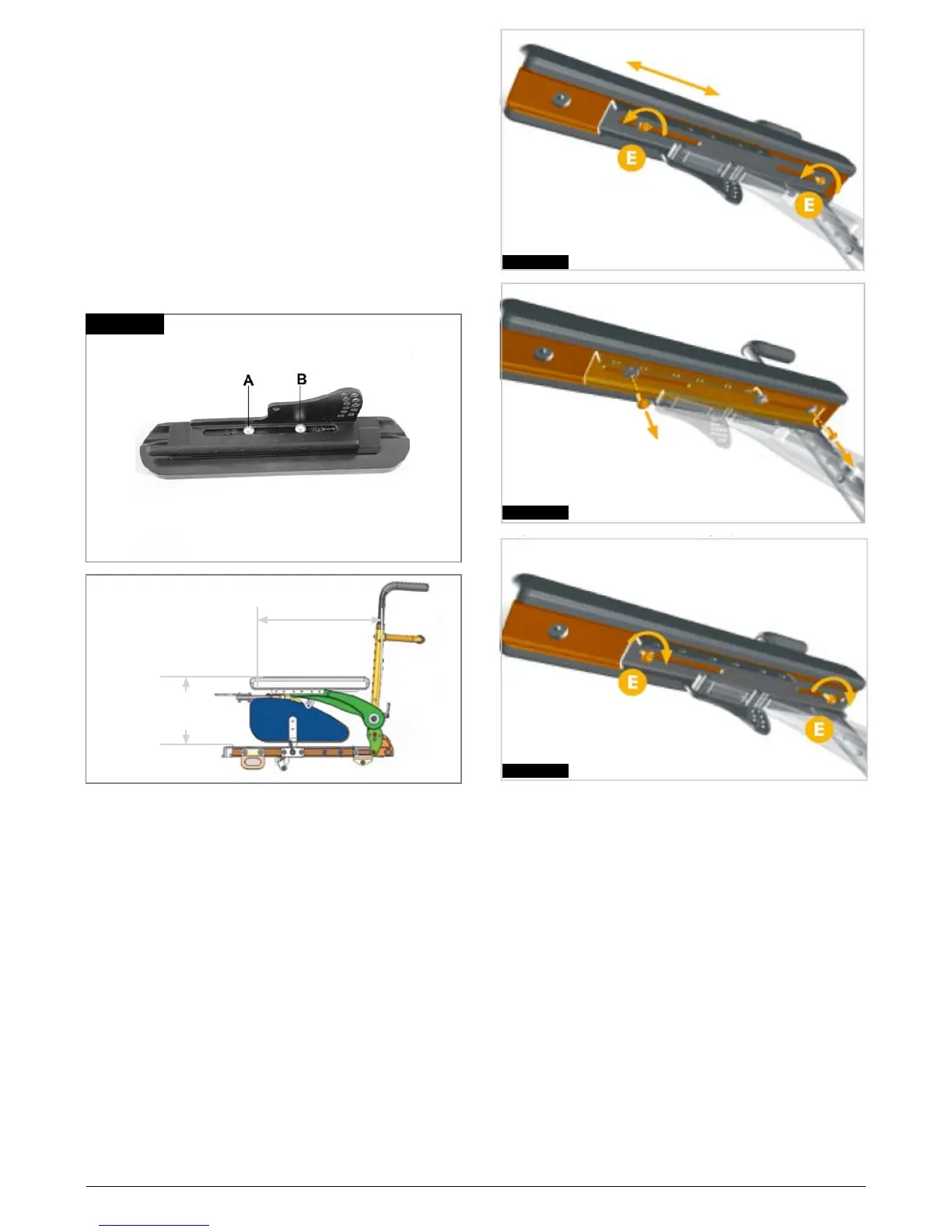

5.8.3 Arm pad Position Adjustment (Fig. 45 - 48)
Fine arm pad position adjustments (one to two 1.
inches) are possible by loosening the 4mm arm pad
adjustment bolts (E) and sliding the arm pad forward or
backward as required (Fig. 5.36, 5.37). Access to the
rear adjustment bolt may require pivoting the arm pad
Retighten both adjustment bolts (E). Use 10 N/m or 2.
88.5 in/lb of torque (Fig. 5.38).
NOTE: If more than one to two inches of adjustment is
required, refer to chart below (Fig. 5.39).
For larger adjustments, remove both sets of arm pad 3.
adjustment bolts. Slide both arm pads to the next set
of attachment holes (refer to the chart). Retighten both
sets of armpad adjustment bolts (Fig. 5.36 - 5.39). Use
10 N/m or 88.5 in/lb of torque.
Arm-pad depth = min. 235 mm to max. 300 mm
(back tube to front edge of arm-pad)
Fig. 5.36
Fig. 5.37
Fig. 5.38
ARMREST
HEIGHT
ARM PAD DEPTH
Fig. 5.39
