D3 Series User Manual
Page | 11 Copyright©2023 ZKTECO CO., LTD. All rights reserved.
Terminal and Wiring Description 2.2
2.2.1 Terminal Description

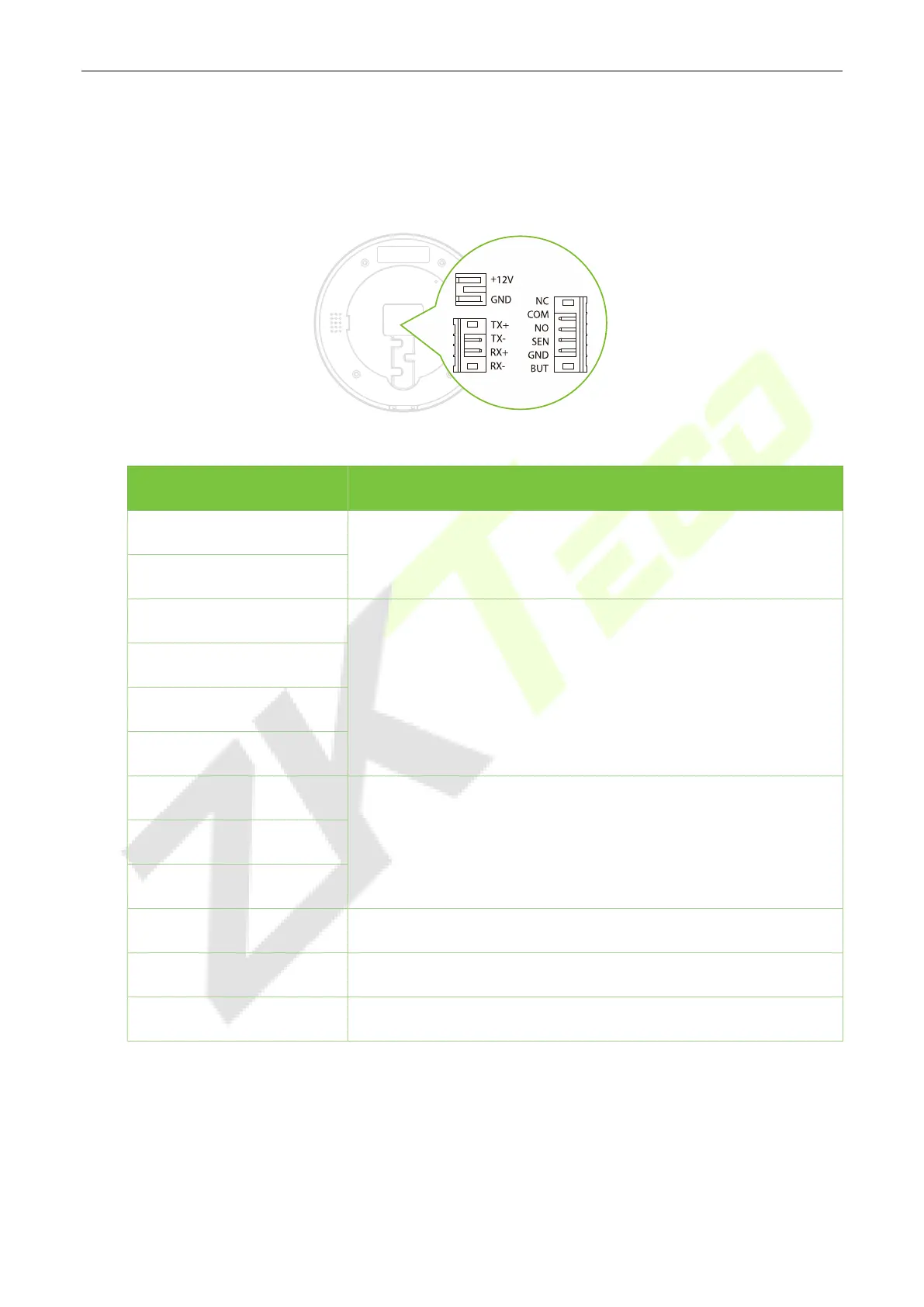

Interface Description
+12V
12V Power In
GND
TX+
Network Interface
TX-
RX+
RX-
NC
Lock
COM
NO
SEN Sensor
GND Power
BUT Exit Button
