ZKTeco F18 User Manual

F18 User Manual V1.0
- 26 -

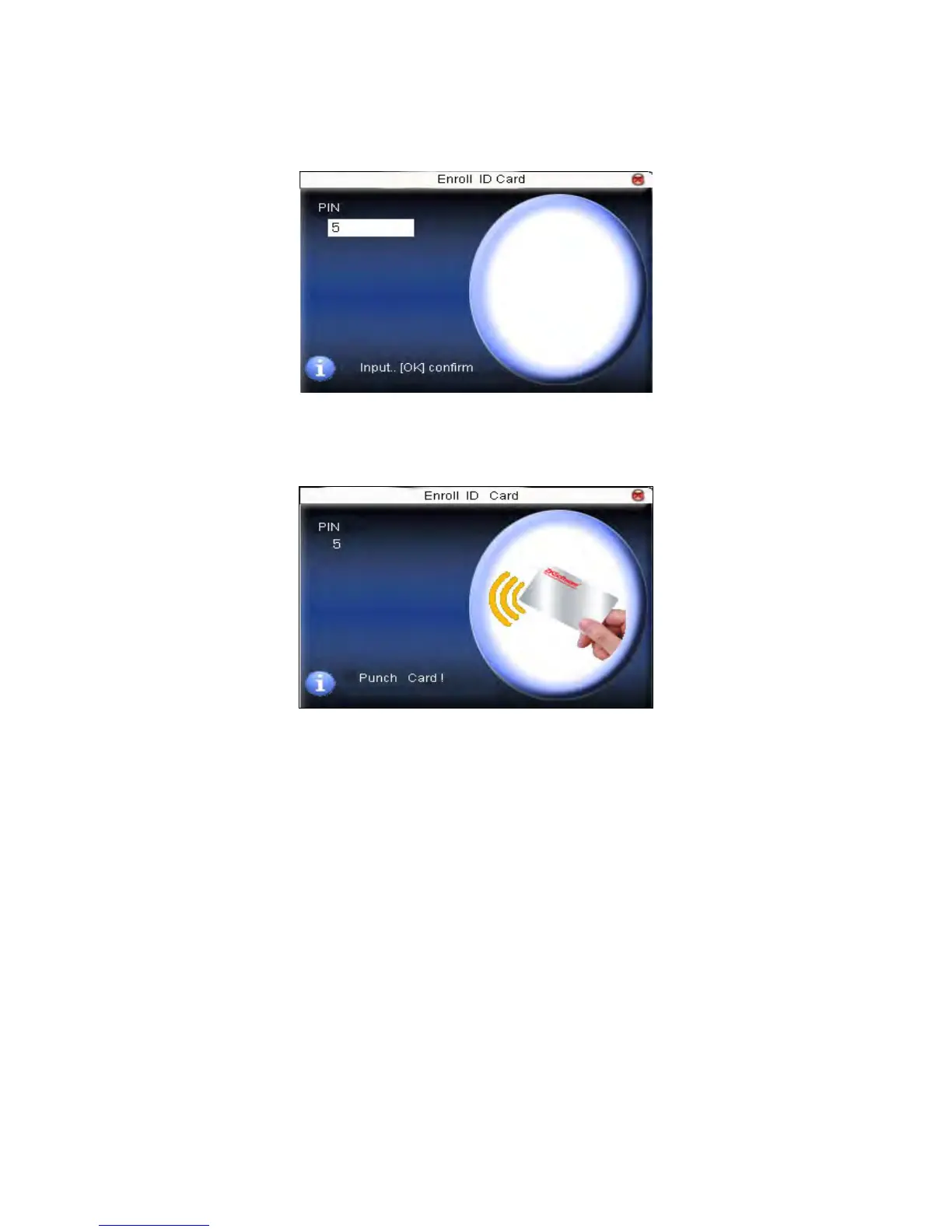

1. Enrollment
Step 1: Select enroll card and then press OK.
Step 2: press keyboard to input the number to be enrolled（if the number
has been there already, the device will prompt you to copy the
information to the card.), and then press OK.
Step 3: The device prompts to show card.
Step 4: Put the card in the induction area until the operation is
successful.
2. Verification:

ZKTeco F18 Specifications

General

Type	Basic access control reader
Product color	Gray
Number of users	1 user(s)
Access code reader	-
Fingerprint reader	Yes
Authentication type	Biometric
Display type	TFT-LCD
DC voltage range	0 - 12 V
Operating relative humidity (H-H)	20 - 80 %

Weight and Dimensions

Depth	183 mm
Width	80 mm
Height	42 mm
