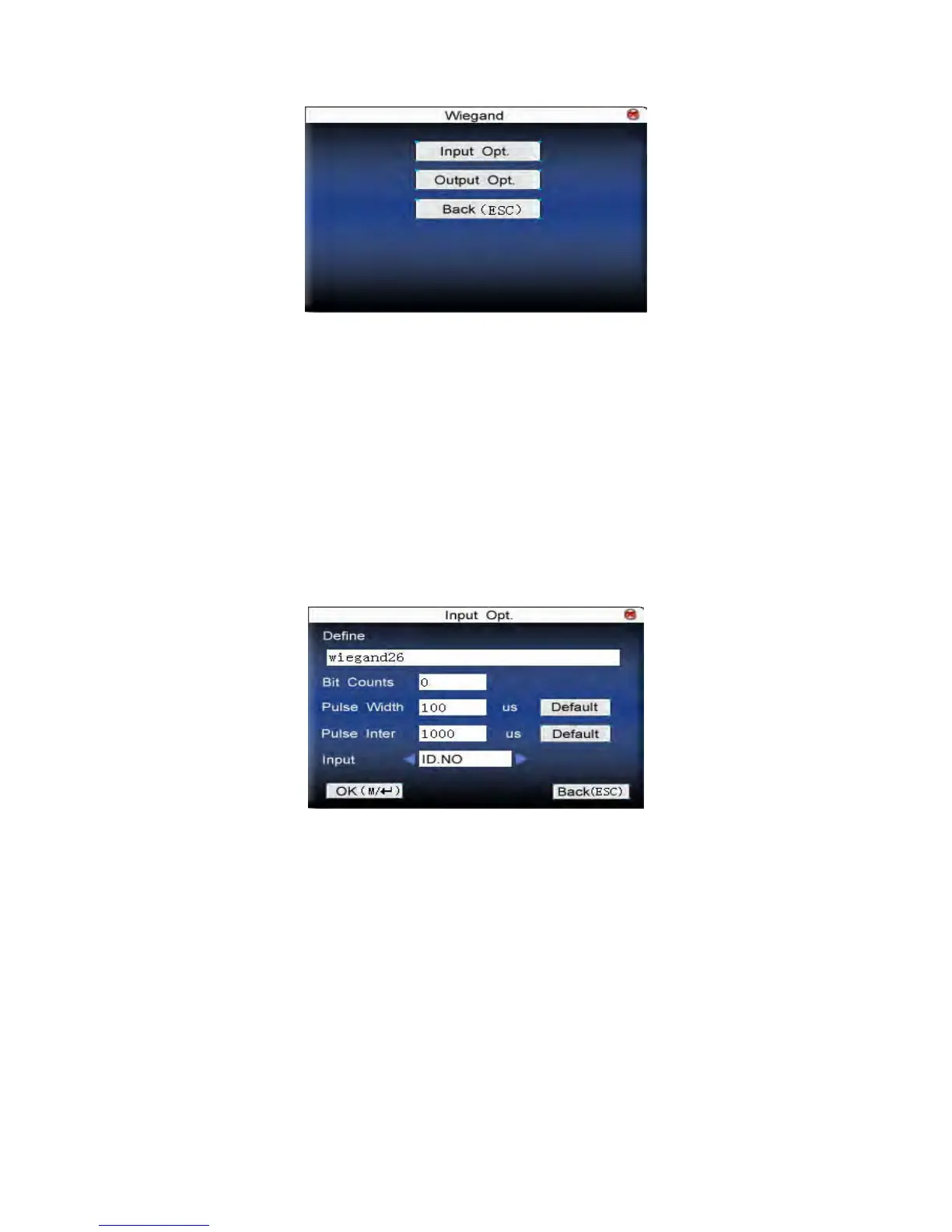

3.4.1 Input configuration
User defined format: User defined Wiegand input format
Bit digit: Wiegand data digit length
Pulse width: Pulse width is 100 microseconds by default, which can be
adjusted from 20 to 800.
Pulse interval: It is 900 microseconds by default, which can adjusted
between 200 and 20000.
Input content: Content contained in Wiegand input signal, including
User ID or card number.
Operation:

ZKTeco F18 Specifications

General

Type	Basic access control reader
Product color	Gray
Number of users	1 user(s)
Access code reader	-
Fingerprint reader	Yes
Authentication type	Biometric
Display type	TFT-LCD
DC voltage range	0 - 12 V
Operating relative humidity (H-H)	20 - 80 %

Weight and Dimensions

Depth	183 mm
Width	80 mm
Height	42 mm
