2.2.3 DM10 Wiring

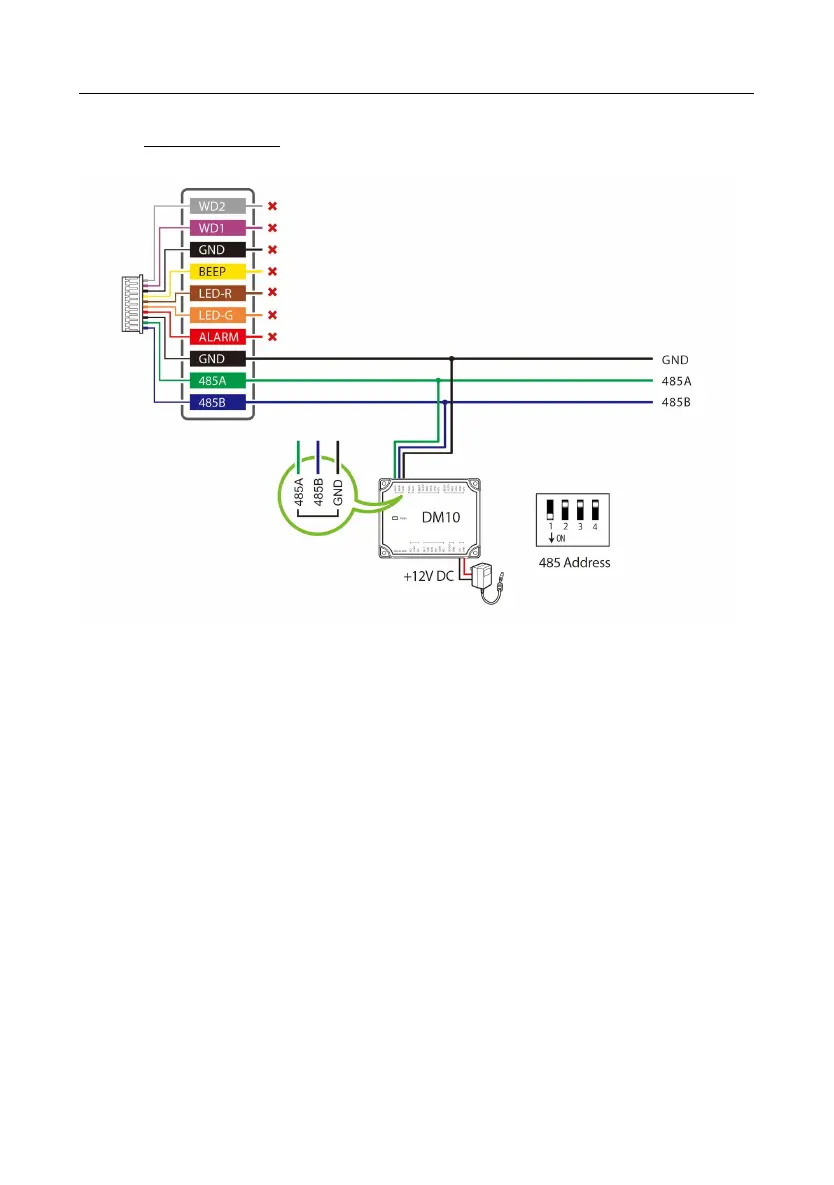

Figure 1-4 DM10 Wiring
Notes:
 The DM10 can only be used in software if it is connected to the KF1000 series
via RS485.

You need to manually enable the DM10 function on the Webserver to access
it. It can be turned on via the following path: [Advanced Settings] > [Serial
Comm] > [Serial Port] > [DM10].
 Set the 485 address of DM10 to 1.
 A KF1000 series only supports connecting one DM10.

Each device requires a separate power supply.
 The DM10 can be extended to connect the smoke detector, Wiegand Reader,
Door Sensor, Exit Button and Alarm.
