ZKTeco MA500 User Manual

Access Control System Installation Guide
i
1. Equipment Installation

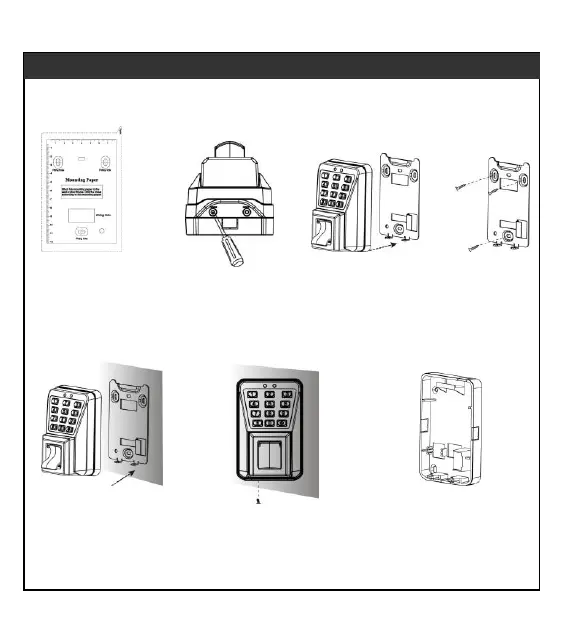

Wall mount installation
(5)Fix the device to the back plate.
(6)Tighten the screws at the
bottom of the device.
(2)Remove the screws on
the bottom of device.
(4)Fix the back plate on
the solid wall according
to the mounting paper.
Note: If it is not possible to drill
on the hollow wall, please select
a plastic box instead of iron plate.
(1)Paste the mounting template
On the wall. Drill the holes
accordingto the marks on the
template.
(holes for screws and wiring).
(3)Take away the back plate.
(1)Paste the mounting template
On the wall. Drill the holes
According to the marks on the
template.
(holes for screws and wiring).
(2)Remove the screws on
the bottom of device.

ZKTeco MA500 Specifications

General

Type	Basic access control reader
Log capacity	100000
Product color	Black, Silver
Cards capacity	30000 cards
Number of users	3000 user(s)
Fingerprint reader	Yes
Authentication type	Access chip/card, Biometric, Password
Keypad number of keys	12
International Protection (IP) code	IP65
Sensor type	-
Operating temperature (T-T)	0 - 45 °C
DC current (max)	3 A
RS-485 ports	1
PC connection	RS-485/RJ-45
Built-in display	No

Weight and Dimensions

Depth	127 mm
Width	83 mm
Height	74 mm
