ZKTeco MA500 User Manual

Access Control System Installation Guide
iv

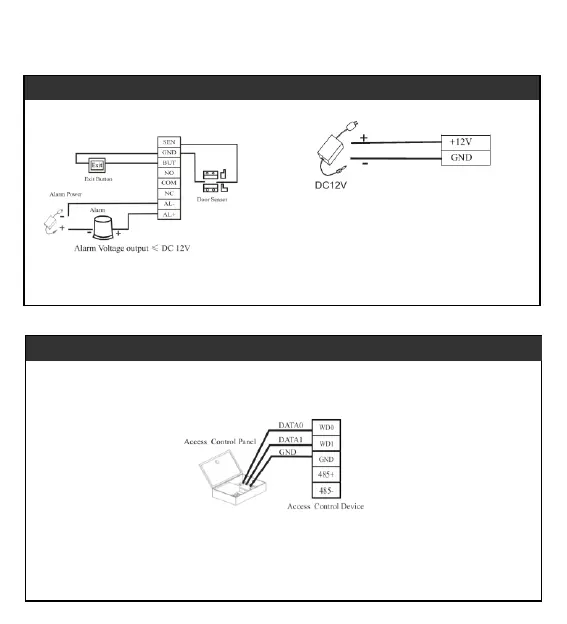

4. Connected with Other Parts 5. Connected with Power
The device supports standard Wiegand output, it is able to connect with various third party
access control panel, which has Wiegand input.
(1)Do not exceed 90m (meters) distance between the Device and Access Control Lock OR Card
reader. (In the case of long distance installation, use the Wiegand Signal Extender, to minimise
interference.)
(2)To keep a balanced and stable Wiegand signal, connect the device, access control lock or card
reader on the same "GND"(ground) port.
The device working voltage is DC 12V,
electric current is 500mA (50mA for standby
current). Positive is connected with ‘+12V’,
negative is connect with ‘GND’.
(Do not reverse the polarities).
6. Wiegand Output

ZKTeco MA500 Specifications

General

Type	Basic access control reader
Log capacity	100000
Product color	Black, Silver
Cards capacity	30000 cards
Number of users	3000 user(s)
Fingerprint reader	Yes
Authentication type	Access chip/card, Biometric, Password
Keypad number of keys	12
International Protection (IP) code	IP65
Sensor type	-
Operating temperature (T-T)	0 - 45 °C
DC current (max)	3 A
RS-485 ports	1
PC connection	RS-485/RJ-45
Built-in display	No

Weight and Dimensions

Depth	127 mm
Width	83 mm
Height	74 mm
