Triac Screws
The triac screws are the 3 screws at the base of the power PCB. It is imperative that these screws be tightened all the
way. The triac tabs are used to transfer heat from the power PCB to the back panel of the chlorinator.
If the triac screws are NOT tight, the power PCB will overheat and be damaged.
It is also imperative to have screw “C” insulated with the special washer and pad. This special washer and pad insulates
this triac tab while still allowing heat to transfer.

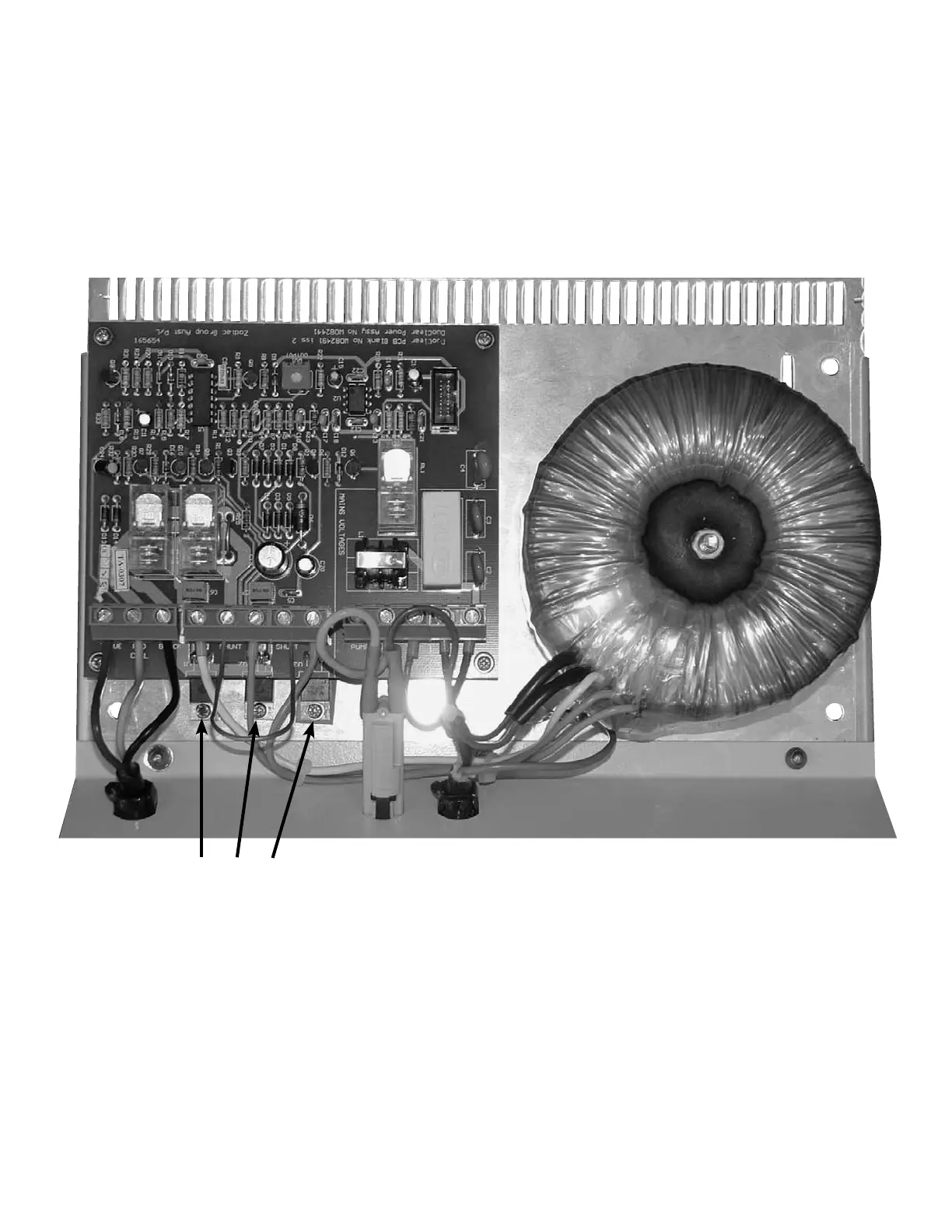

Triac screws “A”, “B”, & “C”. Note that screw
“C” has an insulating pad and washer that MUST
be replaced when the PC board is changed.
These screws must be tight in order to dissipate
heat from the board.
