Zodiac DuoClear - Initial Troubleshooting Checks; Look;Feel System Check; Cover Removal and Inspection

3
Table of Contents
Safety Instructions .............................2
Look /Feel....................................3
Circuit Breaker ................................4
Power Cord...................................4
Testing Power Path ............................5
Chlorinator Not Operating........................6
No chlorine reading ............................7
Output Lights will Not go to 100% .................8
Output Lights will Not go Down ...................9
Amber Output Light Blinking......................9
Transformer ..................................9
No Flow Light Is On ...........................10
Add Salt Light Is On ...........................11
Add Salt Light and/or No Flow Light Are On ........11
Chlorine reading too high .......................12
Calcium Build-up On Cell .......................12
Reversing Polarity ............................13
Cleaning/Replacing Cell ........................13
Touch Pad PCB ..............................14
To Replace the Clear Cover.....................15
PCB Replacement for DuoClear..................16
Triac Screws.................................17
Exploded Diagram ............................18
Parts List....................................19
Look/Feel
Before removing chlorinator cover, check the following:
1. Is the pool pump on?
2. Is the chlorinator turned on?
3. Do the indicator lights function? (If NO, see Output Lights pg. 8-9)
(If all of the above answers are “YES”, there is no problem with the chlorinator. Have the consumer bring a water
sample to their dealer for analysis.)
4. Is the circuit breaker tripped? (see Circuit Breaker pg. 4)
5. Is the output cord damaged or the plug cap not properly attached?
(see No Flow Light Is On pg. 10)
6. Is there calcium built-up on the cell? (see Calcium Build-up
on Cell pg. 12)
After checking the above items:
1. Turn off power supply.

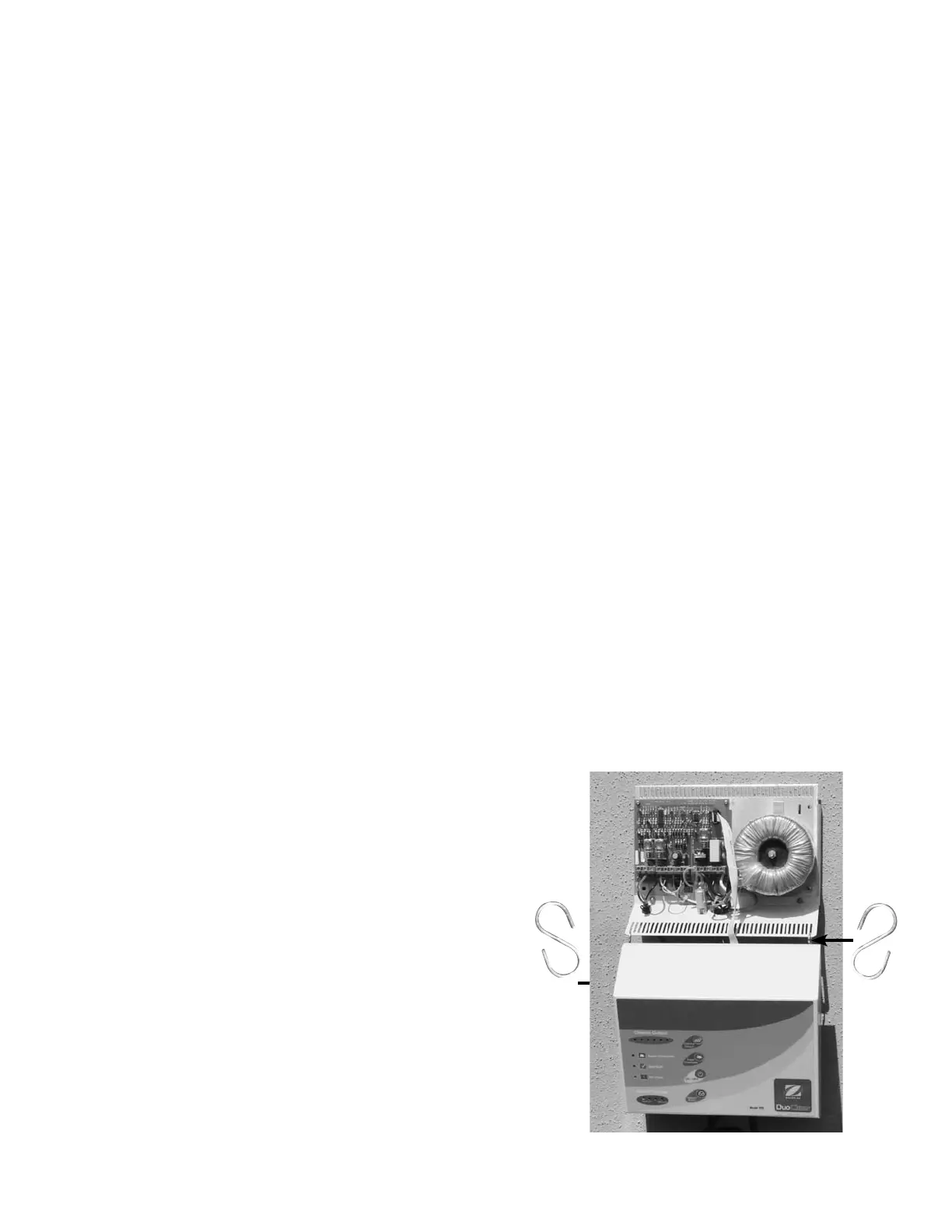

2. Remove 4 screws to remove cover and hang cover
from venting with “S” hooks provided in kit.
Do not disconnect ribbon wire. Check the following:
• Arethereanyvisibleburnmarks?
• Isthereanyvisiblewaterdamage?
• Arethereanyloosewiresorscrews?
