ZOLL M Series Service Manual

M Series Service Manual
5-14 9650-0450-01 Rev. U

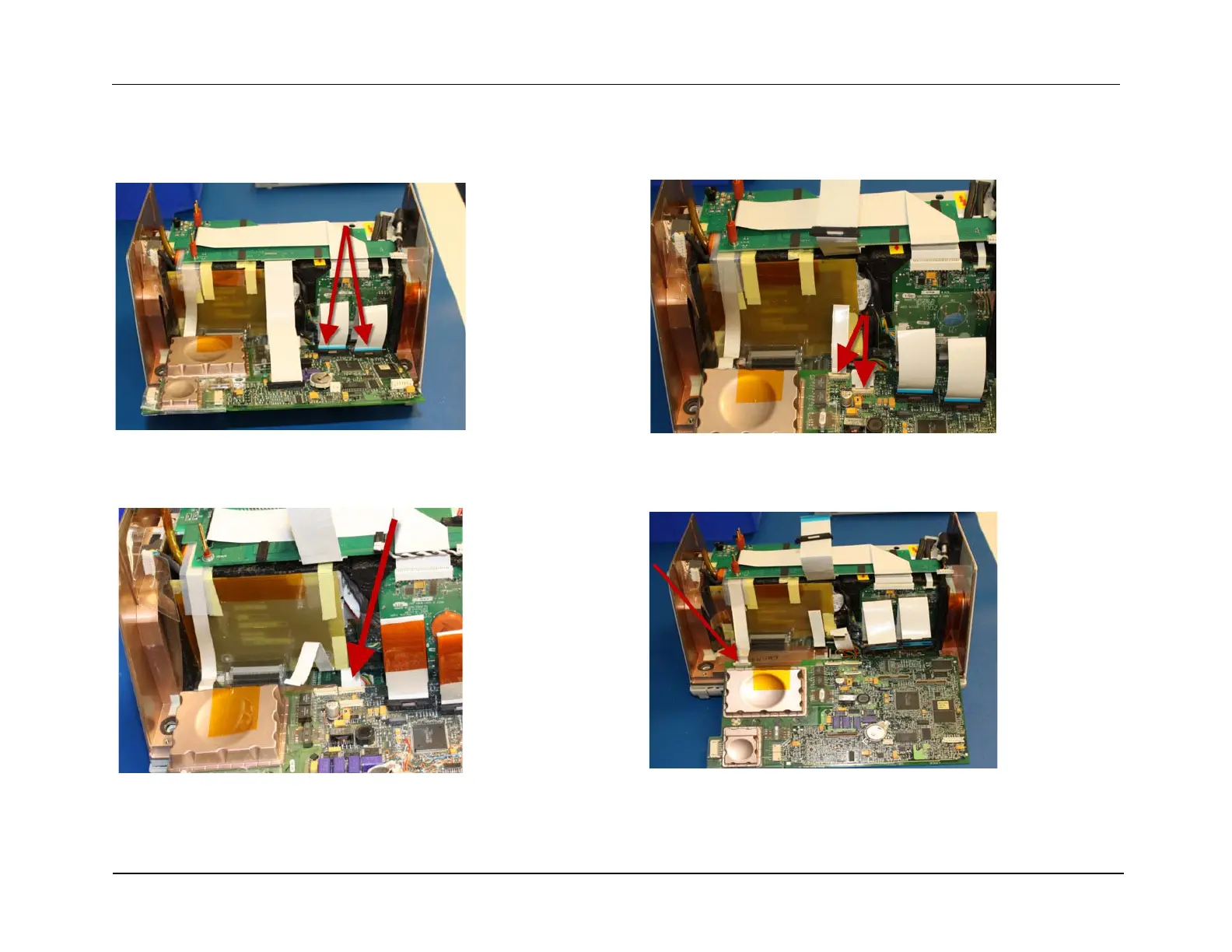

5. Remove the 2 system interconnect cables, by lifting ZIF
connectors.
6. Remove biphasic flex cable and EtCO
2
/SPO
2
cable by
lifting up on tabs, and pulling straight out.
7. Remove NIBP flex cable by lifting up on tabs and pulling straight
out.
8. Remove ECG flex cable by lifting up on tabs, and pulling
straight out.

ZOLL M Series Specifications

General

Pacer Rate	30 - 180 ppm
Display Type	LCD
Defibrillator Type	Manual and AED
Monitor Display	High-resolution LCD
ECG Monitoring	3-lead
Pacing	Demand
Battery Type	Lithium-ion
Display	High-resolution LCD
Waveform	Biphasic Truncated Exponential (BTE)
Monitoring Parameters	ECG, SpO2, EtCO2, NIBP, temperature
Connectivity	Data port for data transfer
Pacer Type	Transcutaneous
Pacer Output	0 - 140 mA
Printer	Integrated thermal
Energy Selection	2, 3, 5, 7, 10, 15, 20, 30, 50, 70, 100, 120, 150, 200 Joules
