ZOLL M Series Service Manual

M Series Service Manual
5-30 9650-0450-01 Rev. U

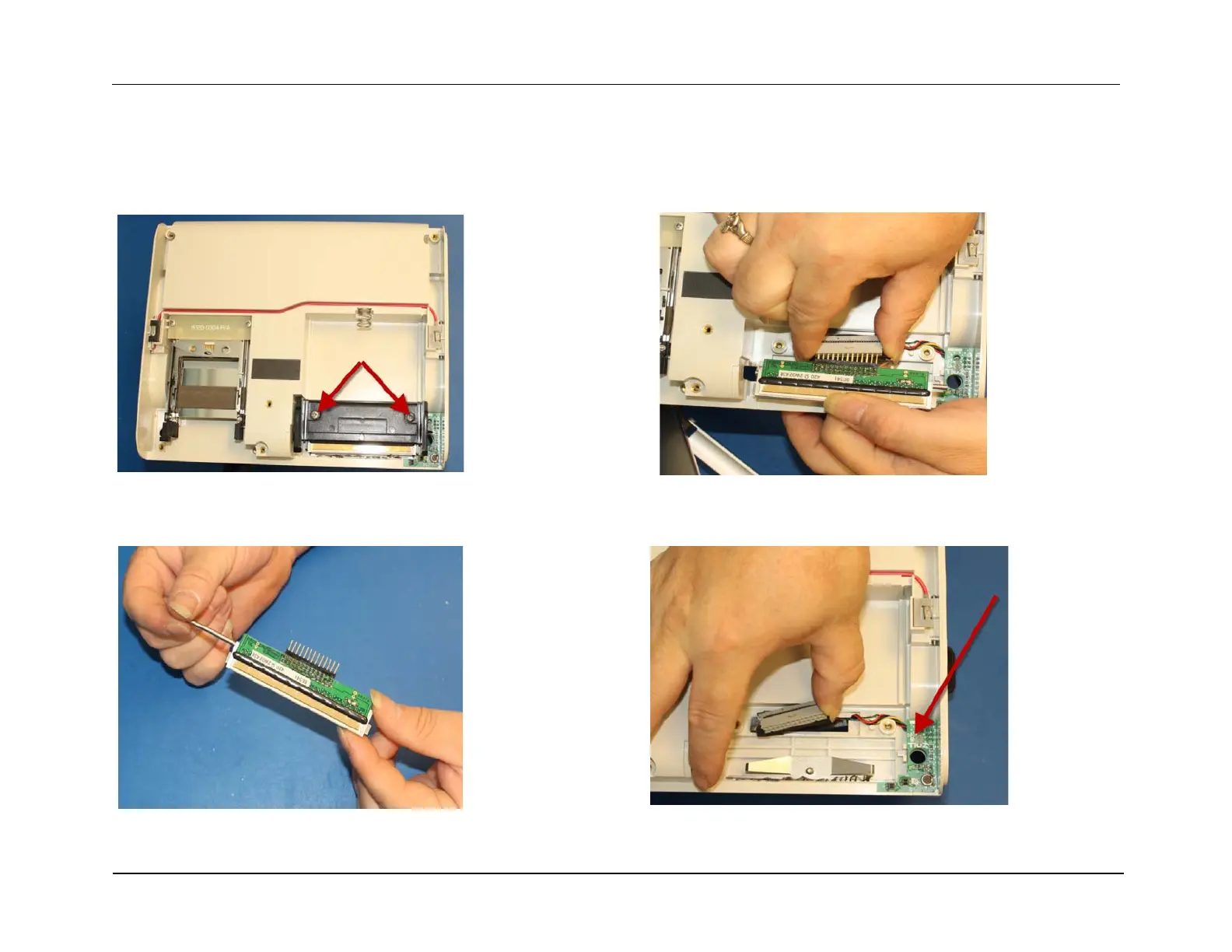

Print Head Assembly Removal
1. Remove 2 screws from print head support, and lift support
straight out.
2. Lift up on print head and disconnect print head cable.
3. Remove pivot pin for reuse. 4. Lift the paper sensor board out, and pull wire through the
access hole.

ZOLL M Series Specifications

General

Pacer Rate	30 - 180 ppm
Display Type	LCD
Defibrillator Type	Manual and AED
Monitor Display	High-resolution LCD
ECG Monitoring	3-lead
Pacing	Demand
Battery Type	Lithium-ion
Display	High-resolution LCD
Waveform	Biphasic Truncated Exponential (BTE)
Monitoring Parameters	ECG, SpO2, EtCO2, NIBP, temperature
Connectivity	Data port for data transfer
Pacer Type	Transcutaneous
Pacer Output	0 - 140 mA
Printer	Integrated thermal
Energy Selection	2, 3, 5, 7, 10, 15, 20, 30, 50, 70, 100, 120, 150, 200 Joules
