ZOLL M Series Service Manual

M Series Service Manual
9650-0450-01 Rev. U 5-25
Monophasic: High Voltage Capacitor Disassembly
WARNING! This unit may contain lethal voltages. You MUST completely discharge the high voltage capacitor before removing from unit. DO NOT SHORT
THE TERMINAL ENDS OF THE CAPACITOR UNTIL AFTER DISCHARGED.

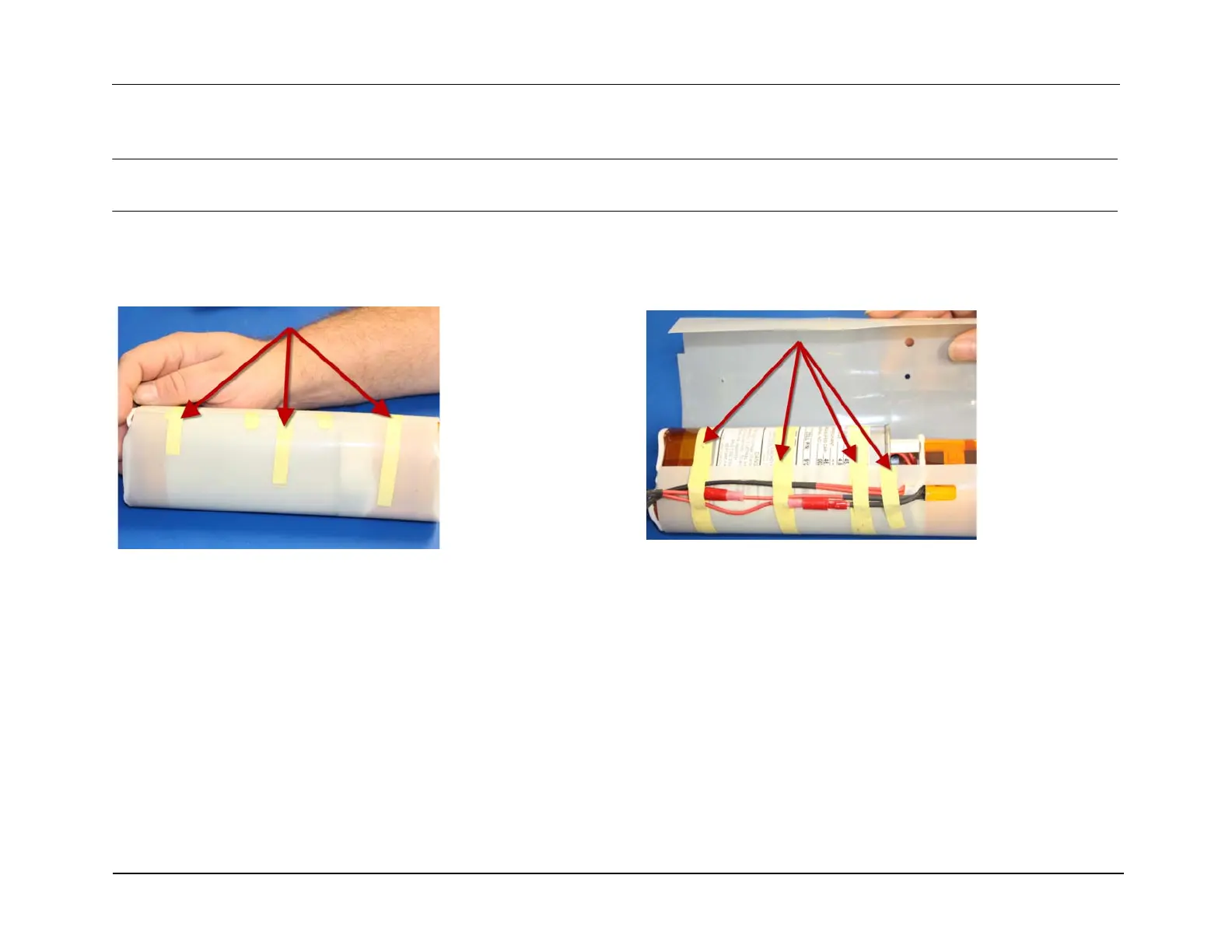

1. Remove 3 pieces of tape. 2. Peel back isolator and remove 4 pieces of tape.

ZOLL M Series Specifications

General

Pacer Rate	30 - 180 ppm
Display Type	LCD
Defibrillator Type	Manual and AED
Monitor Display	High-resolution LCD
ECG Monitoring	3-lead
Pacing	Demand
Battery Type	Lithium-ion
Display	High-resolution LCD
Waveform	Biphasic Truncated Exponential (BTE)
Monitoring Parameters	ECG, SpO2, EtCO2, NIBP, temperature
Connectivity	Data port for data transfer
Pacer Type	Transcutaneous
Pacer Output	0 - 140 mA
Printer	Integrated thermal
Energy Selection	2, 3, 5, 7, 10, 15, 20, 30, 50, 70, 100, 120, 150, 200 Joules
