Zoom Multistomp MS-70CDR User Manual

7
Turning the Power ON
Turning the Power ON
2

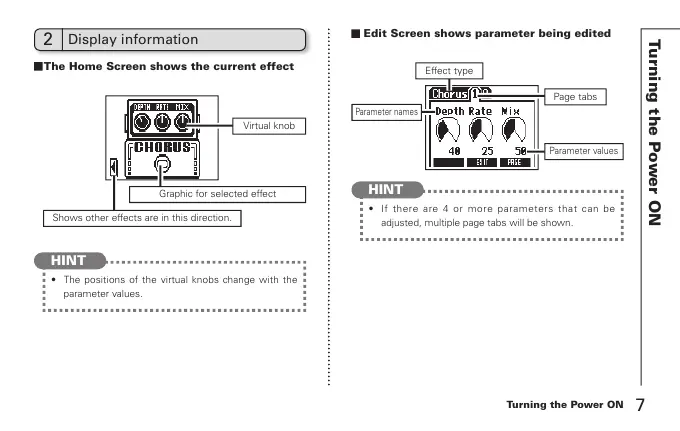

Display information
The Home Screen shows the current effect
Edit Screen shows parameter being edited
HINT
t 5IF QPTJUJPOTPG UIFWJSUVBMLOPCTDIBOHFXJUIUIF
parameter values.
HINT
t *G UIFSF BSF  PS NPSFQBSBNFUFST UIBU DBO CF
adjusted, multiple page tabs will be shown.
Virtual knob
Graphic for selected effect
Shows other effects are in this direction.
Parameter names
Effect type
Page tabs
Parameter values

Zoom Multistomp MS-70CDR Specifications

General

Effects	86
Patches	50 user patches
Display	LCD
Input	1 x 1/4"
Output	1 x 1/4"
Pedal Type	Multi-effects
Bypass Switching	Buffered
Type	Multi-effects
Current Draw	500 mA
Simultaneous Effects	Up to 6
Power	9V DC
Effects Types	Chorus, Delay, Reverb
Power Source	9V DC
Presets	50
