Zoom Multistomp MS-70CDR User Manual

6

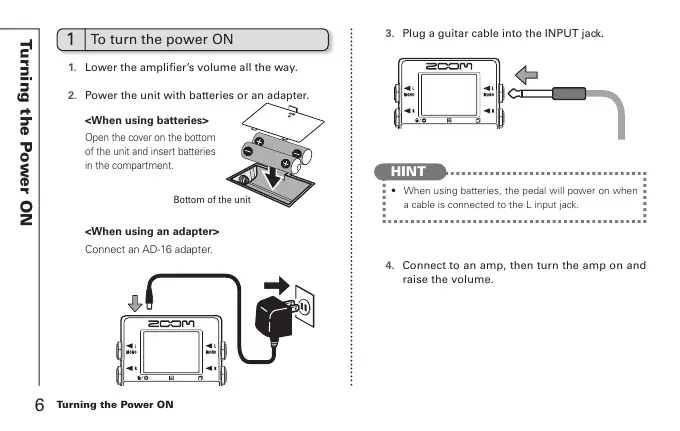

Turning the Power ON
Turning the Power ON
1. Lower the amplifier’s volume all the way.
2. Power the unit with batteries or an adapter.
3. Plug a guitar cable into the INPUT jack.
4. Connect to an amp, then turn the amp on and
raise the volume.
1
To turn the power ON
Open the cover on the bottom
of the unit and insert batteries
in the compartment.
Connect an AD-16 adapter.
<When using batteries>
<When using an adapter>
Bottom of the unit
HINT
t 8IFOVTJOHCBUUFSJFTUIFQFEBMXJMMQPXFSPOXIFO
a cable is connected to the L input jack.

Zoom Multistomp MS-70CDR Specifications

General

Effects	86
Patches	50 user patches
Display	LCD
Input	1 x 1/4"
Output	1 x 1/4"
Pedal Type	Multi-effects
Bypass Switching	Buffered
Type	Multi-effects
Current Draw	500 mA
Simultaneous Effects	Up to 6
Power	9V DC
Effects Types	Chorus, Delay, Reverb
Power Source	9V DC
Presets	50
