Zoom Multistomp MS-70CDR User Manual

4

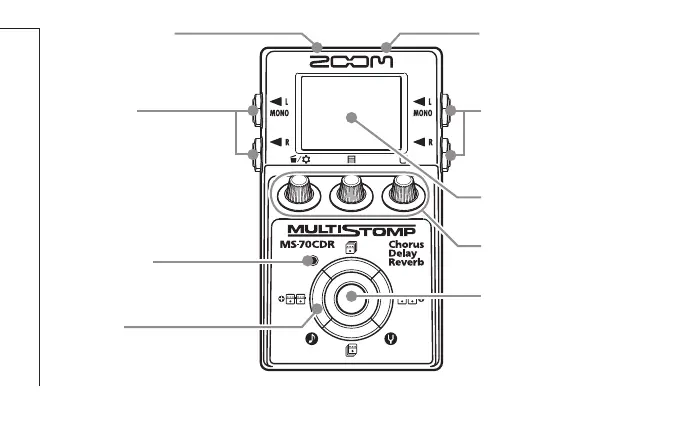

Part Names
Part Names
DC9V AC adapter jack
To power the unit from an outlet,
connect an AD-16 adapter here
(
→
P6).
OUTPUT jacks
Connect to an amp or another
effector.
Use the MONO jack for a mono
connection.
Display
Shows the currently selected effect
and various other screens (
→
P7).
USB connector
Use to connect to a computer and
update firmware (
→
P23).
INPUT jack
Connect the output of a guitar,
bass, other electronic instrument or
effector here.
Use the MONO jack for a mono
connection.
Footswitch
Turns t h e effect shown on the
display ON and OFF (
→
P8).
Press and hold for 1 second to open
the Tuner or Tap Tempo (
→
P14, 16).
ON/OFF indicator
Lights when the current effect is ON.
Does not light when the effect is
OFF (
→
P8).
Cursor keys
(
→
P5)
Parameter knobs
(
→
P5)

Zoom Multistomp MS-70CDR Specifications

General

Effects	86
Patches	50 user patches
Display	LCD
Input	1 x 1/4"
Output	1 x 1/4"
Pedal Type	Multi-effects
Bypass Switching	Buffered
Type	Multi-effects
Current Draw	500 mA
Simultaneous Effects	Up to 6
Power	9V DC
Effects Types	Chorus, Delay, Reverb
Power Source	9V DC
Presets	50
