Operate carefully to avoid the rope from disordering on the drum.
(d) Remove the press nipple from the boom (top section) or the main
hook.
1 Tools necessary: Wrench.
2 Set the parts to the side until they are necessary.

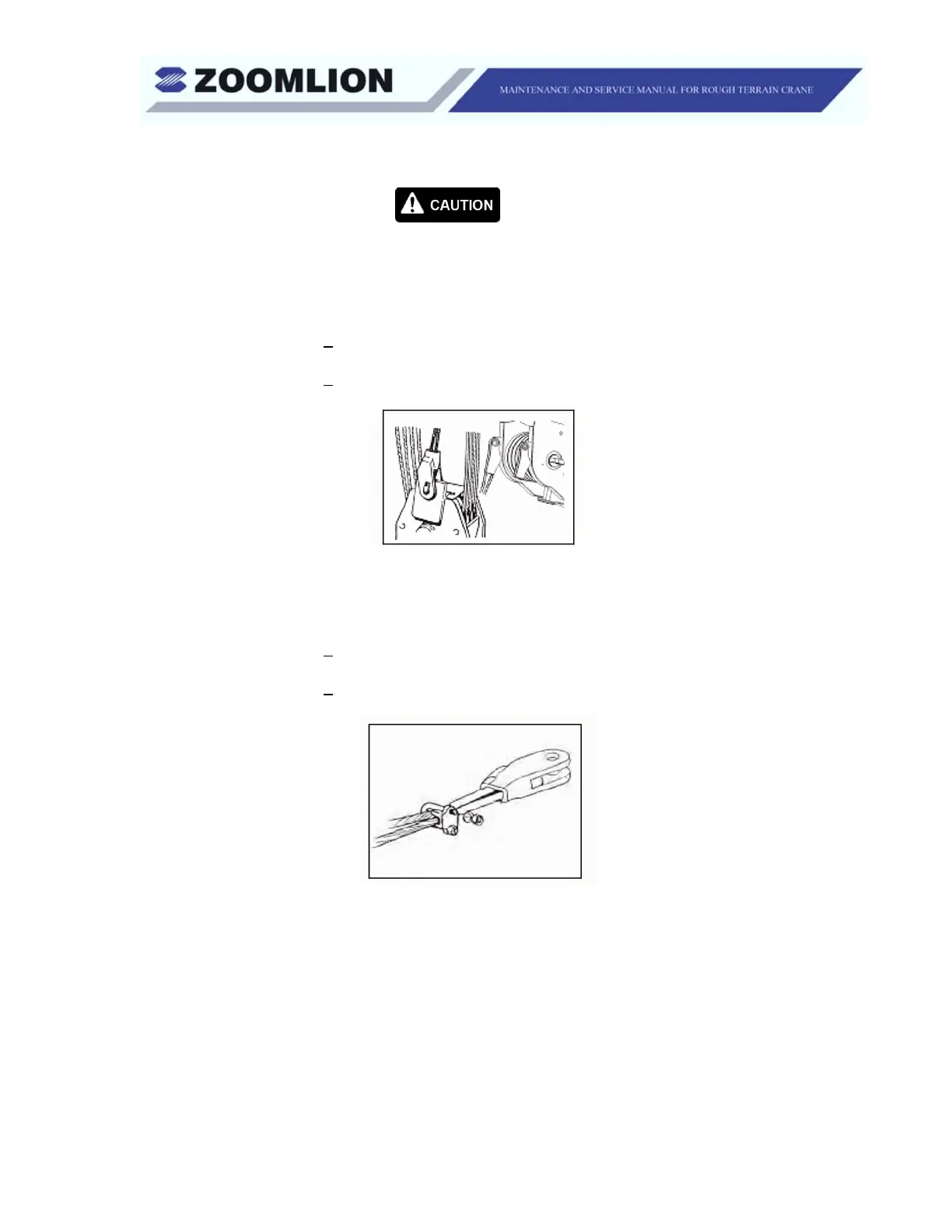

Figure 1-26 Main Hook and Nipple
(e) Remove the wire-rope from the press nipple.
1 Tools necessary: Steel rod (punch), hammer and wrench.
2 Set the parts to the side until they are necessary.
Figure 1-27 Wire-Rope Nipple
(f) Manually pull all the wire-rope from the drum.
