Edition 2 Chapter 1 Page 1-40
Feb/2013 Maintenance and Service

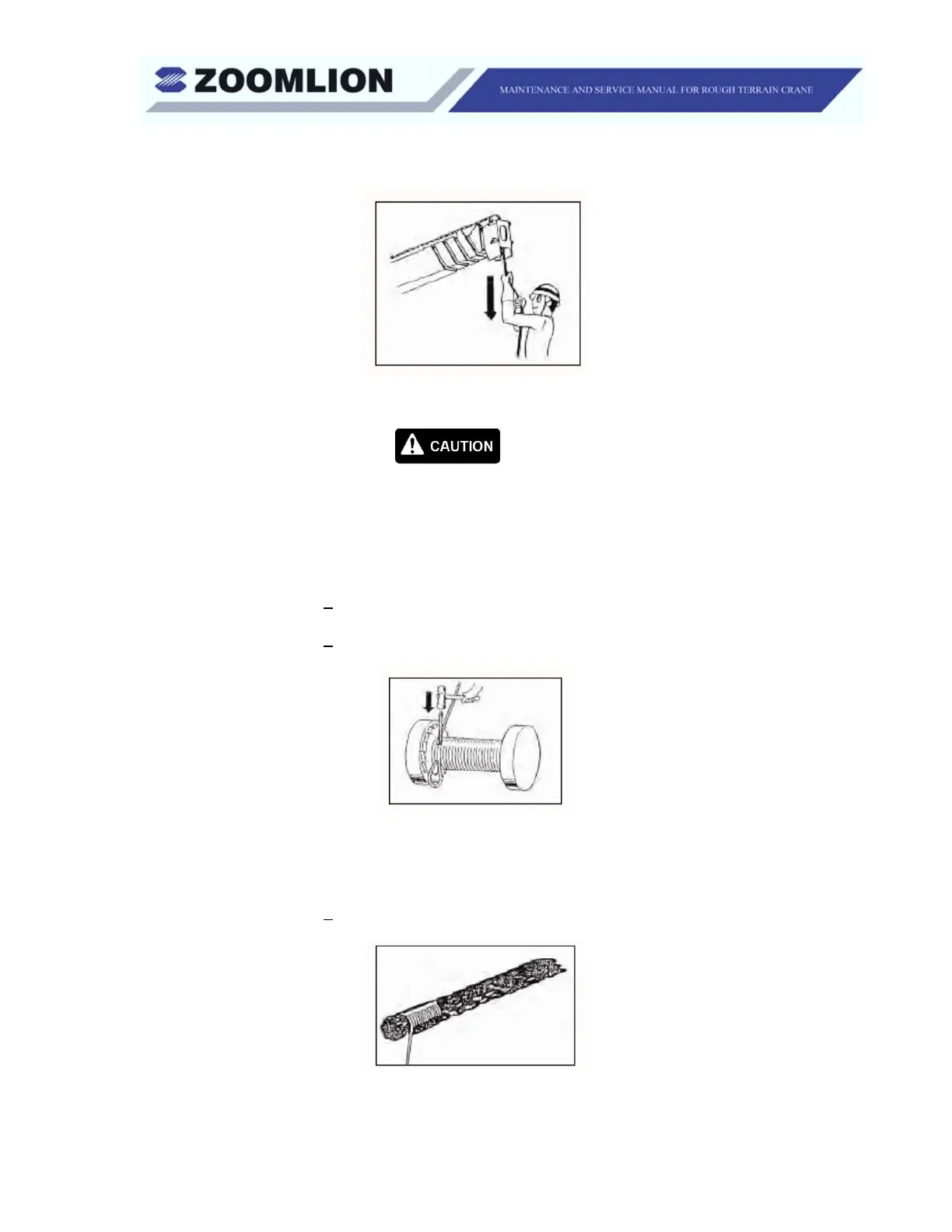

Figure 1-28 Pull Wire-Rope
The 3
rd
(g) Remove the wire-rope from the main winch drum.
wrap warning alarm comes ON when only 3 hoist rope wraps are
left on the main winch. Push the bypass key switch until the wire-rope
stops.
1 Tools necessary: Steel rod (punch) and hammer.
2 You must be careful when you remove the chock.
Figure 1-29 Wire-Rope Off the Drum
(h) Reeve the new wire-rope through the boom sheave.
1 Tools necessary: Thin steel wire or ethylene plastic strap.
Figure 1-30 The End of the New Wire-Rope
