Edition 2 Chapter 1 Page 1-42
Feb/2013 Maintenance and Service
Do not spool-up the wire-rope too quickly. Make sure that the rope
collects on the drum correctly.
(k) Reeve the wire-rope through the top boom head sheave and hook
pulley block in the related line parts.
Make sure that you attach the wire-rope in the correct sequence.

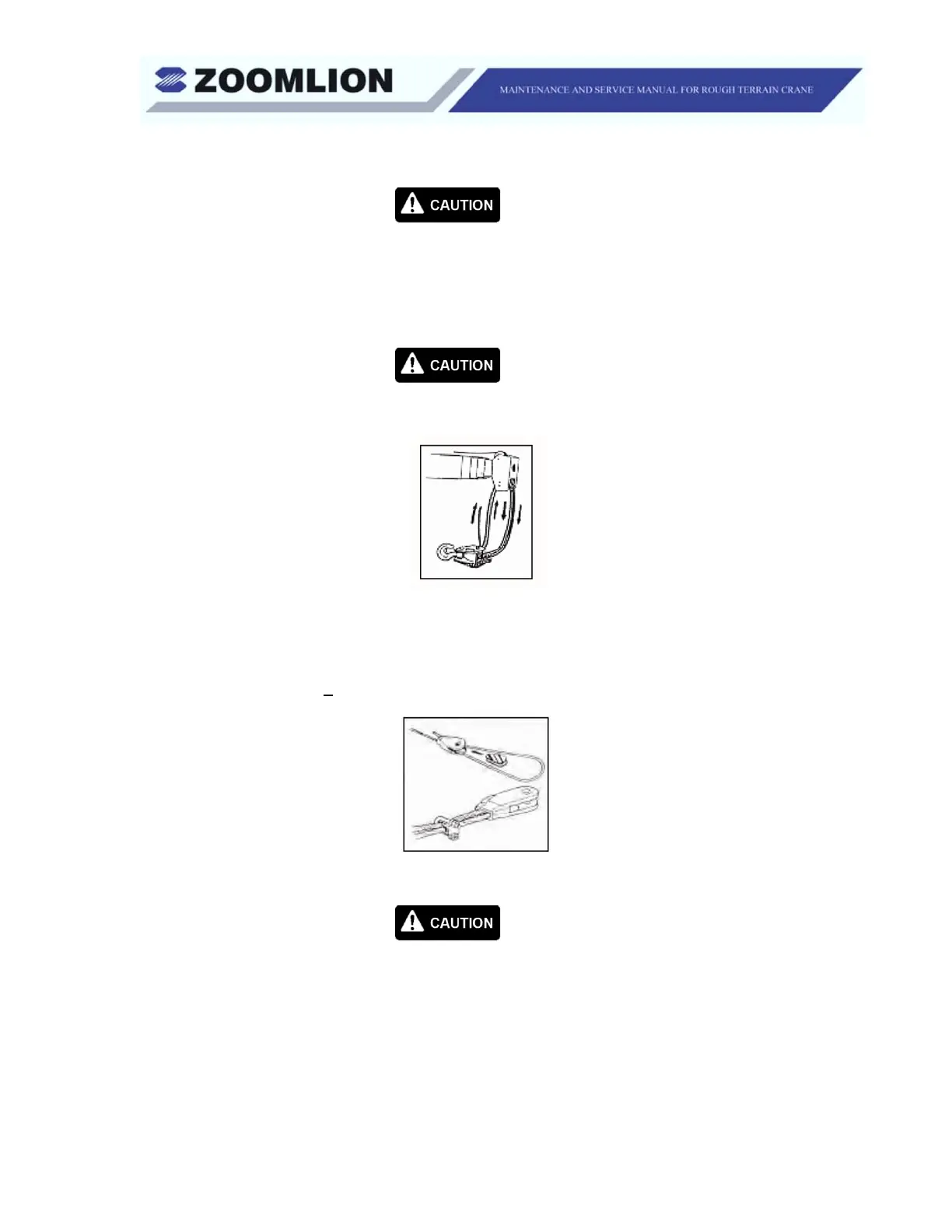

Figure 1-33 Wire-Rope Wrap Sequence
(l) Install the becket and wedge onto the wire-rope.
1 Tools necessary: Wrench and hammer.
Figure 1-34 Becket and Wedge
Make sure that the tapered (beveled) end of the becket is in the same
direction as the end of the wire-rope.
