49

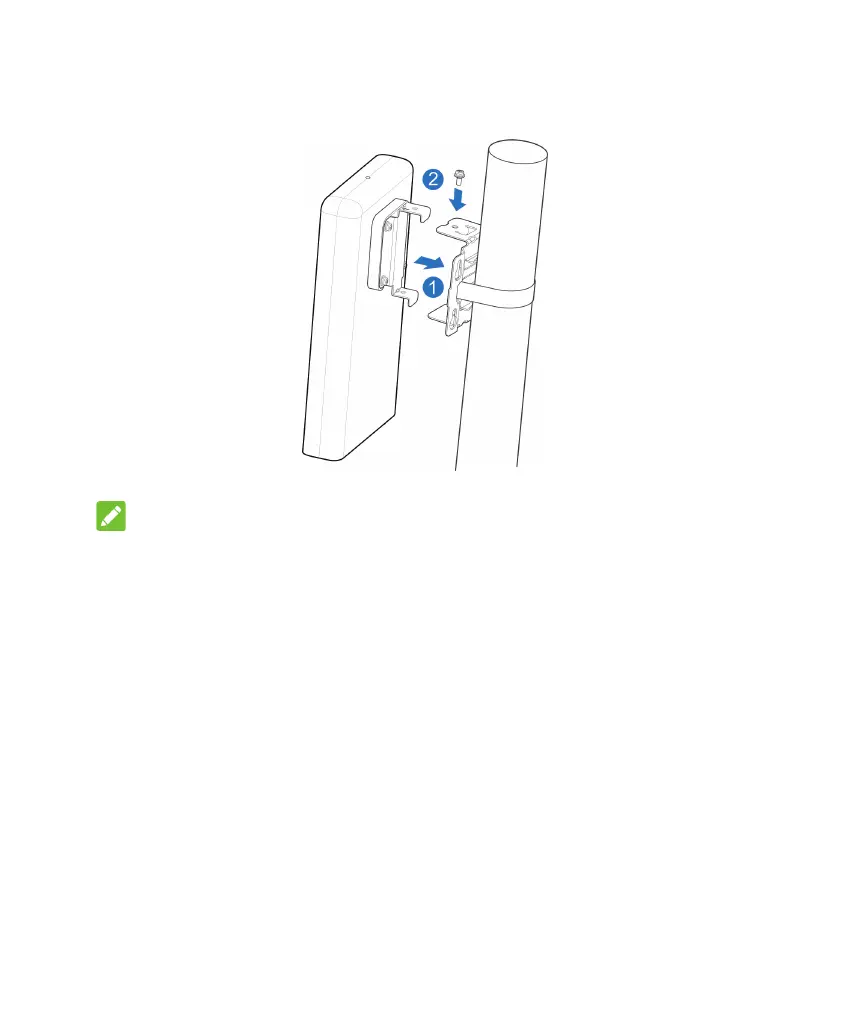

5. Firstly, fasten the backplane to the installed bracket through the upper and
lower slots, and align the hole on the backplane with the hole on the bracket.
Secondly, use one M3 crosshead screw to install the MC889 on the bracket.
NOTE:
Before installing the device on the bracket, you can move the device
horizontally and slowly on the pole to further adjust the position if needed.
