Chapter 4 The Web Configurator
GS1510 Series User’s Guide
40
4.3.2 The Advanced Main Screen
Click Advance to display the following screen that shows the main navigating
components of the Web Configurator screen.

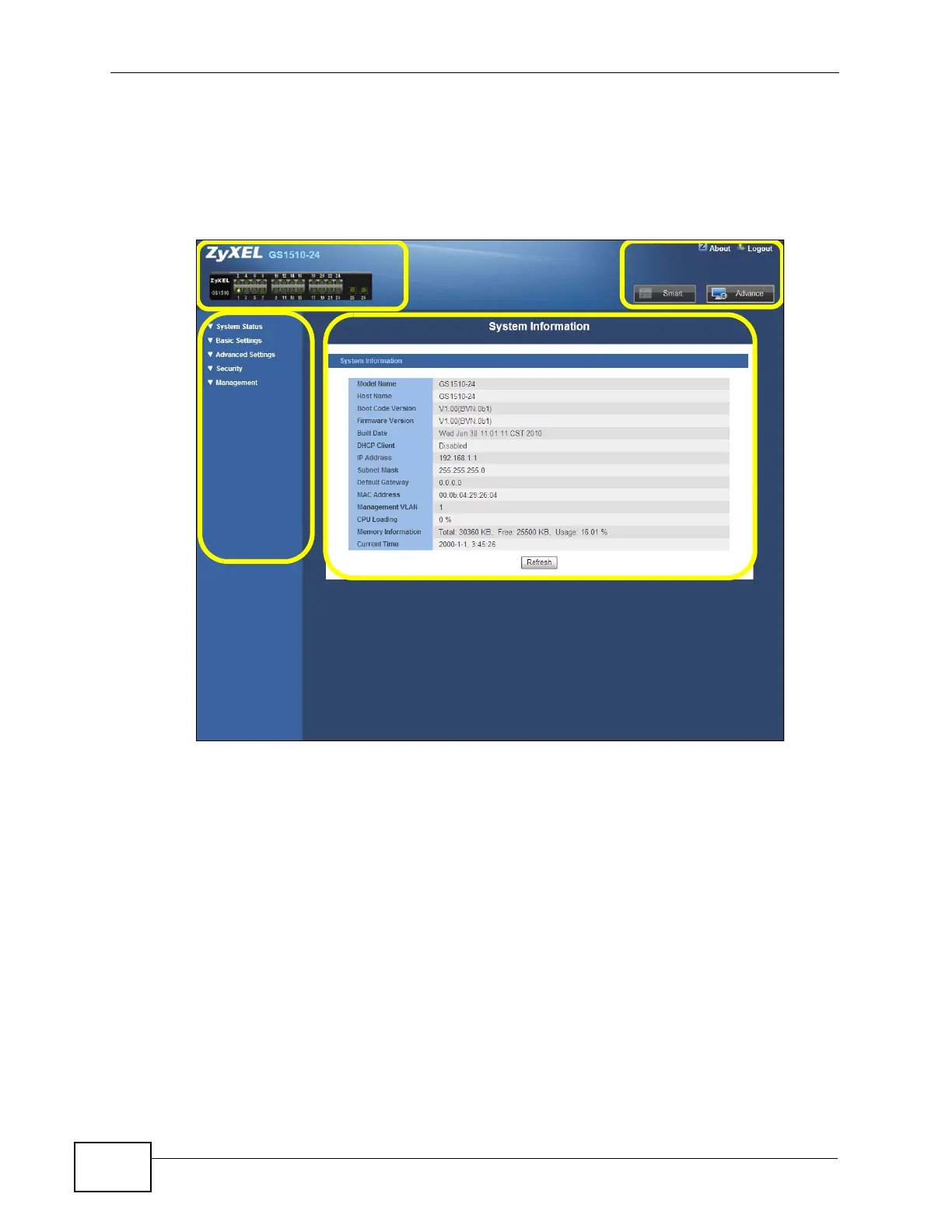

Figure 22 Web Configurator Advanced Screens (System Information)
A - The device graphic displays the status of the ports.
B - Use the About link to view more information about the device’s vendor. Use
the Logout link to exit the Web Configurator. Use the Smart button to go to the
smart screens where you can quickly set up some main functions. Use the
Advanced button to go to the advanced configuration screens.
C - The navigation panel has links to screens that let you configure the Switch’s
features.
D - The function frame allows you to view and edit individual feature settings.
4.3.3 The Navigation Panel
Navigate to individual feature configuration screens from the navigation panel.
A
B
C
D
