FlipFlopRS
The block is a one-bit memory cell (output parameter), whose state FlipFlopRS
changes to 1 or 0 at the rise of defined events. The FlipFlopRS output can be used as a
condition for action control in rather complex applications. It is a 2N
®
Automation
simulation of an RS-type flip-flop circuit.
Input parameters
Set – define the event to set the condition into the 'met' state (1).
Reset – define the event to set the condition into the 'not met' state (0).
ResetValue – set the condition default value upon restart. The parameter is
optional.
Valid values:
0 – condition is not met (default value)
1 – condition is met.
Output parameters
Out
Example

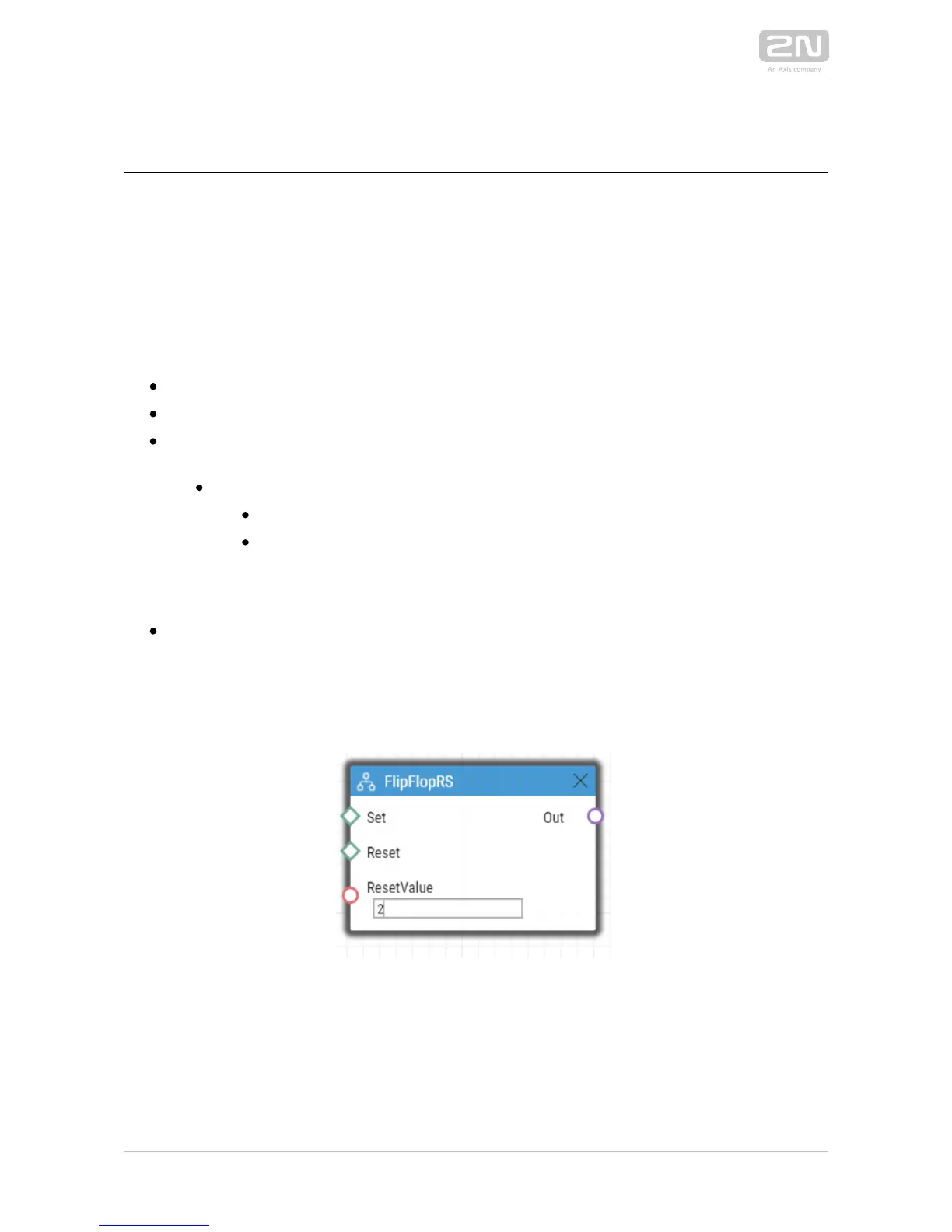

The condition is met at the rise of event 1 and not met at the rise of event 2:
