3-9

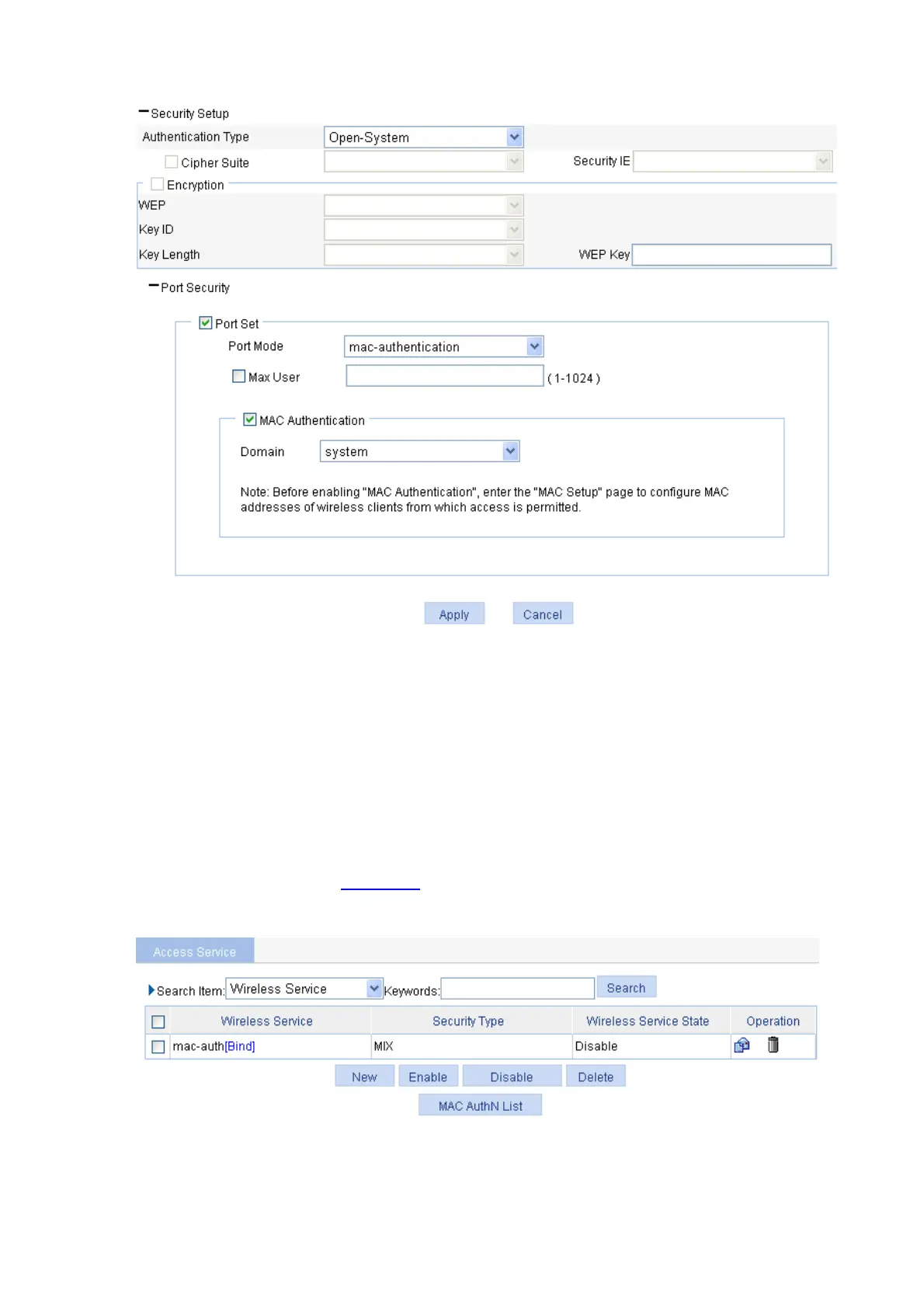

p Figure 3-18 Security setu
z Select the Open-System from the Authentication Type drop-down list.
z Select the Port Set check box, and select mac-authentication from the Port Mode drop-down list.
z Select MAC Authentication check box, and select system from the Domain drop-down list (you
can select Authentication > AAA from the navigation tree, click the Domain Setup tab, and
create a domain in the Domain Name drop-down combo box).
z Click Apply.
4) Bind the radio to the wireless service, and enable the wireless service
Select Wireless Service > Access Service from the navigation tree to enter the page for enabling a
wireless service, as shown in
Figure 3-19:
Figure 3-19 Bind the radio to and enable the wireless service
z Click the Bind link in the Wireless Service column, select the target radio, and click Bind.
z Select the mac-auth check box.
z Click Enable.
