3-14

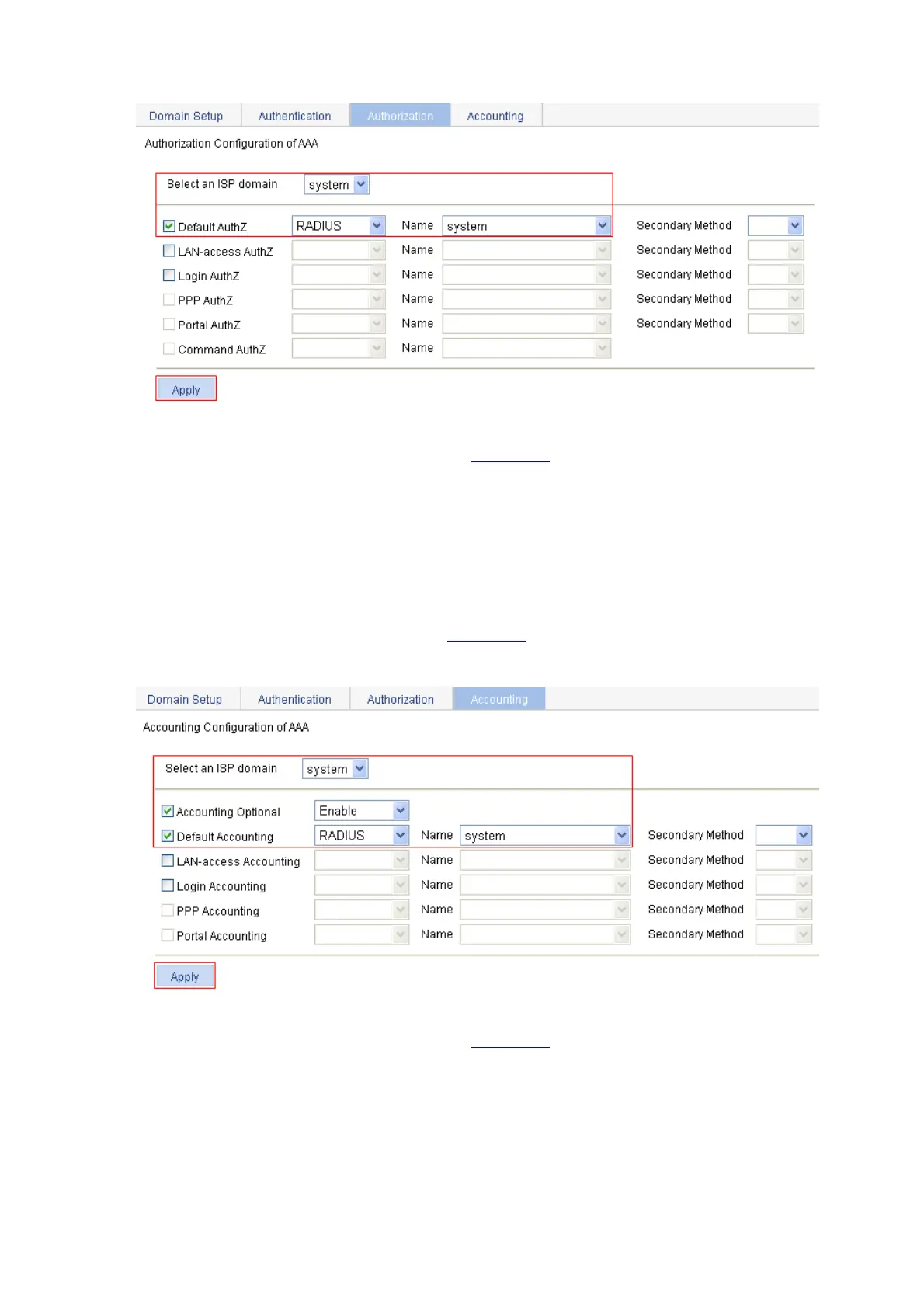

n Figure 3-26 Configure the AAA authorization method for the ISP domai
Perform the following configuration, as shown in Figure 3-26.
z Select the domain name system.
z Select the Default AuthZ checkbox and then select RADIUS as the authorization mode.
z Select system from the Name drop-down list to use it as the authorization scheme.
z Click Apply. A configuration progress dialog box appears.
z After the configuration process is complete, click Close.
# Configure the AAA accounting method for the ISP domain, and enable Accounting Optional.
z Select the Accounting tab, as shown in Figure 3-27.
Figure 3-27 Configure the AAA accounting method for the ISP domain
Perform the following configuration, as shown in Figure 3-27.
z Select the domain name system.
z Select the Accounting Optional checkbox and then select Enable.
z Select the Default Accounting checkbox and then select RADIUS as the accounting mode.
z Select system from the Name drop-down list to use it as the accounting scheme.
z Click Apply. A configuration progress dialog box appears.
z After the configuration process is complete, click Close.
4) Configure wireless service
