3-19
r
In the Network > VLAN page, create a VLAN on the fat AP, and in the Device > Interface
Management page, configure the VLAN interface.
2) Configure a RADIUS scheme
# Configure the RADIUS authentication server.
From the navigation tree, select Authentication > RADIUS. The RADIUS server configuration page
appears.

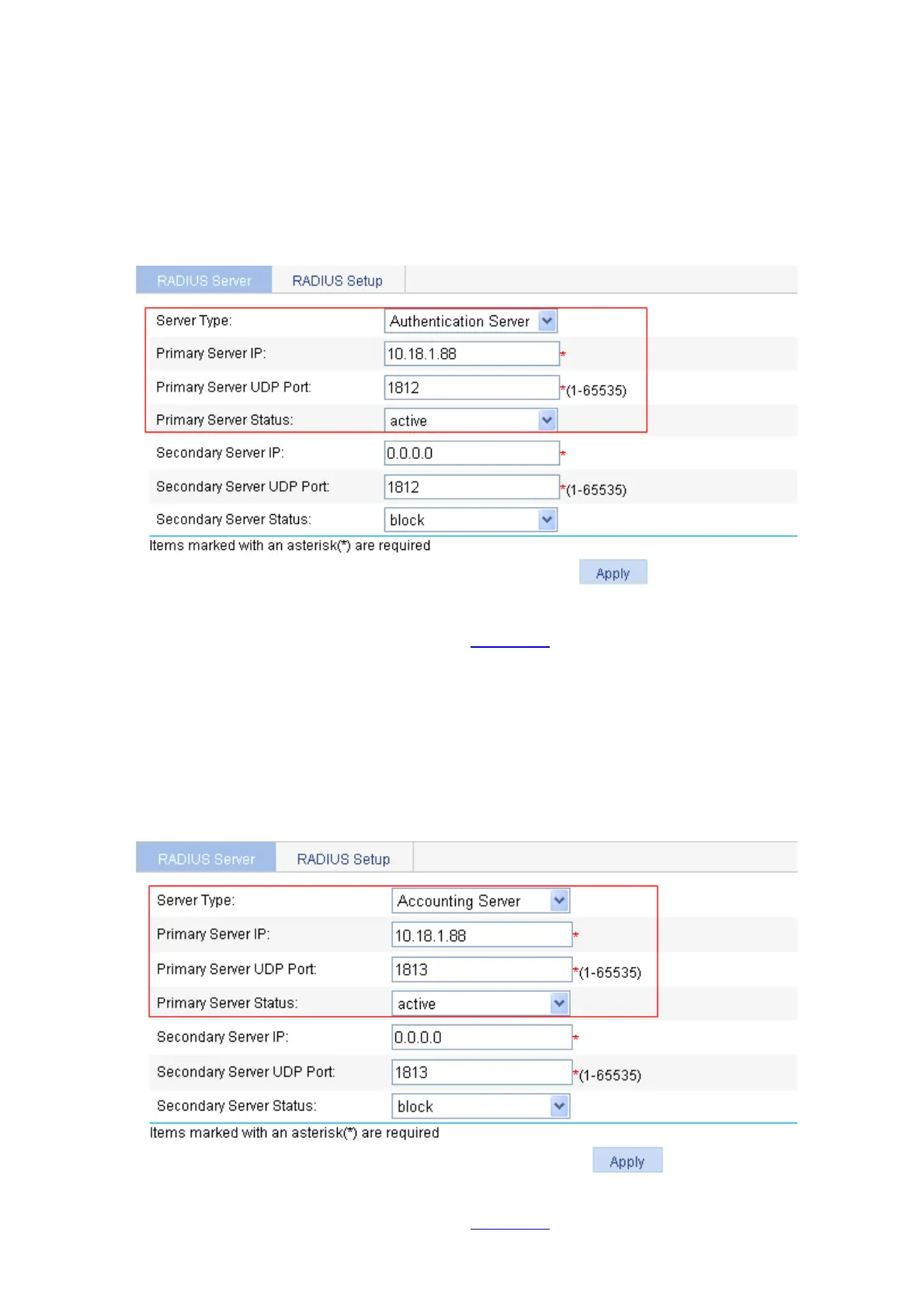

Figure 3-35 Configure the RADIUS authentication serve
Perform the following configuration, as shown in Figure 3-35.
z Select Authentication Server as the server type.
z Enter 10.18.1.88 as the IP address of the primary authentication server
z Enter 1812 as the UDP port of the primary authentication server.
z Select active as the primary server status.
z Click Apply.
# Configure the RADIUS accounting server.
Figure 3-36 Configure the RADIUS accounting server
Perform the following configuration, as shown in
Figure 3-36.
