Pannoramic DESK 1.18.1 User’s Guide 1 Product Description
1.2 System Overview
The standard scope of delivery of the product includes the following hardware and software items.
1.2.1 Pannoramic DESK system
The following figure shows the main components of the Pannoramic DESK system.

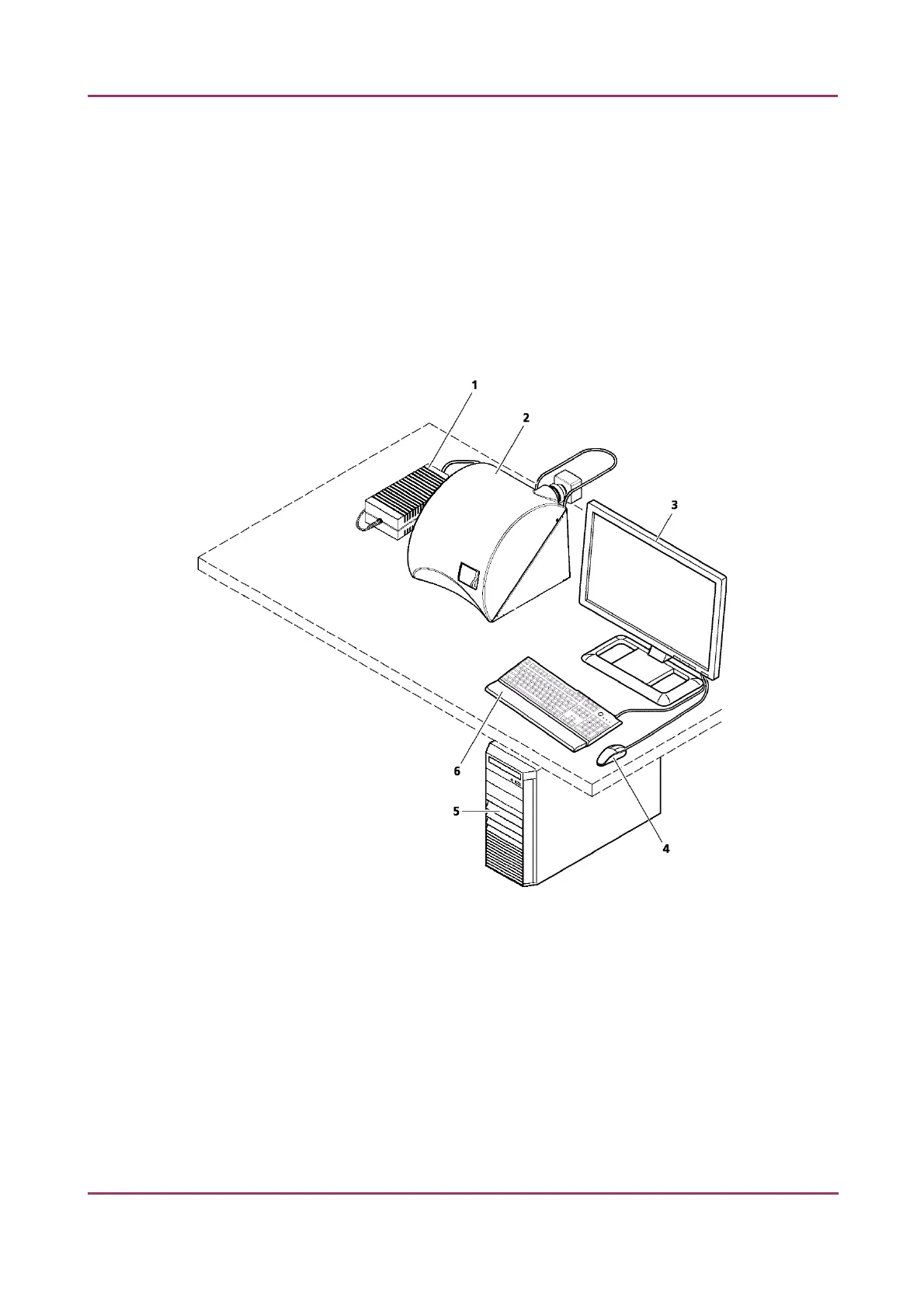

Figure 3 – Pannoramic DESK system overview
1. 24 V external power supply unit
2. Pannoramic DESK base unit
3. Monitor
4. Mouse
5. Control computer
6. Keyboard
May 29, 2014 – Rev. 1 3DHISTECH Ltd. 15(77)
