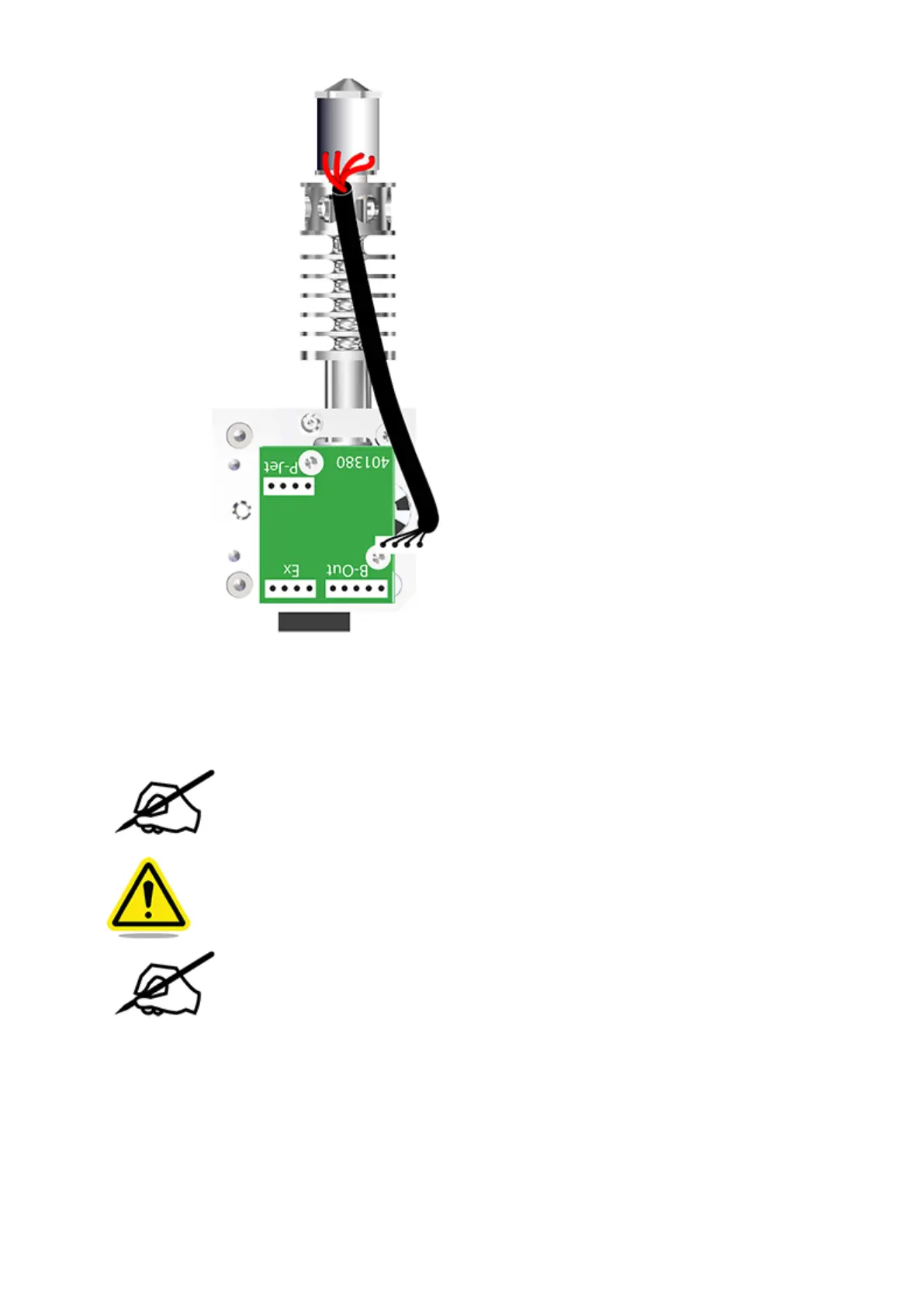

Vertically center print jet 2 in the pinch clamp of the extruder housing and tighten the28.
T10 torx screw (A) enough that the print jet is securely held.
NOTE: For printers with 2 or 3 print jets, the height for print jets 1 and 3 will
be adjusted to the height of print jet 2 after the extruder assembly has been
reinstalled. Tighten the T10 torx screw enough that the print jet is securely
held.
CAUTION: If tightened too tight, the threads in the extruder might begin to
pull making it impossible to secure the print jet to the extruder. Exercise
caution when tightening the torx screw.
NOTE: For illustration purposes, the board was removed from this image. It is
unnecessary to remove the board while adjusting the height of the print jet.
