Replacing Extruder or Print Jet
The material upgrade kit includes a replacement print jet for extruder 2 which has a larger
diameter opening. For this upgrade, only print jet 2 should be replaced with the part
included in the kit.
WARNING: ONCE PRINT JET 2 HAS BEEN UPGRADED, ABS, PLA AND
NYLON SHOULD NEVER BE INSTALLED IN CARTRIDGE BAY 2. THIS BAY IS
RESERVED FOR UPGRADED MATERIALS. WHEN PRINTING WITH WOOD
MATERIAL, ANY ABS MATERIAL CURRENTLY INSTALLED MUST BE
PROPERLY REMOVED.
Tools Needed
2.5 mm Hex Head Driver
T10 Torx Driver
WARNING: BEFORE SERVICING THESE COMPONENTS, GROUND
YOURSELF TO THE SYSTEM BEFORE HANDLING ELECTRICAL
COMPONENTS. ESD PROTECTION IS REQUIRED.
WARNING: NEVER PULL WIRES TO DISCONNECT THE CONNECTORS. THIS
COULD DAMAGE THE WIRES AND THE CONNECTORS AND VOID THE
MANUFACTURER’S WARRANTY.
The following procedure is intended to provide instructions about how to replace print jet 2
for the material upgrade kit.

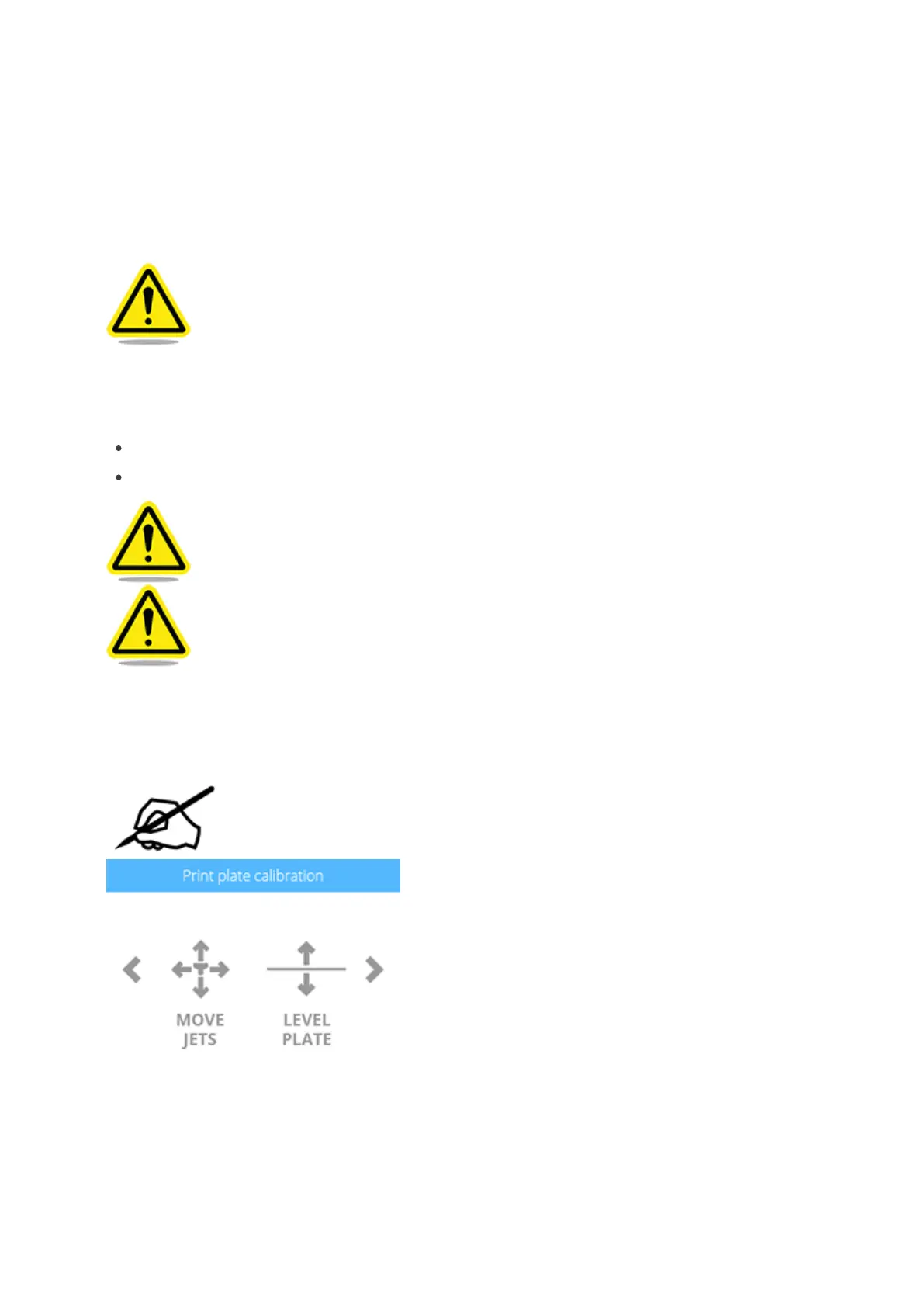

Navigate to the Print Plate Calibration screen and select LEVEL PLATE.1.
NOTE: The print pad will raise and the print jets will maneuver to the left rear
of the printer.
