3D Systems CubePro Replacement Guide

Extruder 1 Motor Connector
Extruder 2 Motor Connector
Extruder 3 Motor Connector

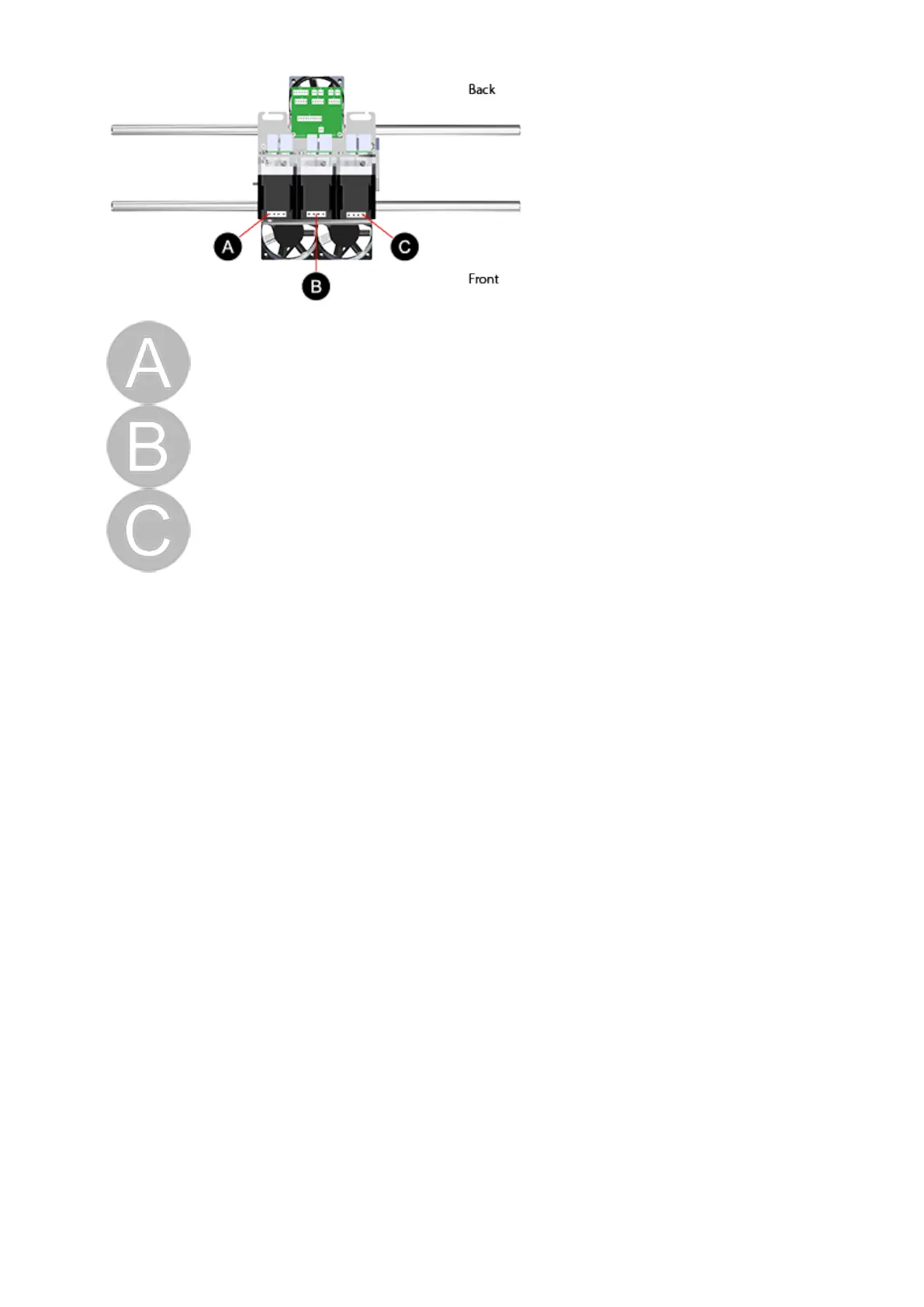

Electrical Connections
Main Extruder
PCB
Cable Extruder PCB Connector Component
X1 (A) - 401889-00
Extruder 1
Motor: Junction
X2 (A) - 401889-00
Extruder 2
Motor: Junction
X3 (A) - 401889-00
Extruder 3
Motor: Junction
X1 (B) - 401889-00 Extruder 1 PCB: Junction Ex
X2 (B) - 401889-00 Extruder 2 PCB: Junction Ex
X3 (B) - 401889-00 Extruder 3 PCB: Junction Ex
J1 401888-00 Extruder 1 PCB: Junction B-Out
J2 401888-00 Extruder 2 PCB: Junction B-Out
J3 401888-00 Extruder 3 PCB: Junction B-Out
Print Jet 1 Extruder 1 PCB: Junction P-Jet
Extruder 1:
403022-00
(Print Jet 1)
Print Jet 2 Extruder 2 PCB: Junction P-Jet
Extruder 2:
403022-00
(Print Jet 2)
Print Jet 3 Extruder 3 PCB: Junction P-Jet
Extruder 3:
403022-00
(Print Jet 3)
J4 P3 - 401888-00

3D Systems CubePro Specifications

General

Product color	Black, White
Viewing window	Yes
Maximum extruder tip temperature	280 °C
Input current	6 A
AC input voltage	100-240 V
AC input frequency	50 - 60 Hz
Print technology	Plastic Jet Printing (PJP)
Printing material	ABS, Polylactic acid (PLA)
Layer thickness (max)	0.3 mm
Layer thickness (min)	0.07 mm
Layer thickness supported	0.2, 0.3 mm
Number of printing colors	3
Maximum build size (WxDxH)	- mm
Vertical print speed (max)	54000 mm/h
Minimum RAM	2 GB
Minimum processor speed	2 GHz
Mac operating systems supported	Mac OS X 10.9 Mavericks
Windows operating systems supported	Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64
Minimum display resolution requirement	1024 x 768 pixels
Ethernet LAN	-
Accuracy	1 %

Weight and Dimensions

Depth	581 mm
Width	566 mm
Height	606 mm
Weight	41000 g
