NOTE: For more information, refer to the section titled Applying Cube Glue.
NOTE: It may take several minutes to print the file.
When finished, remove the print pad and verify the Level Gap.7.
NOTE: Refer to the sections titled Reading The Z-Gap Calibration Print and
Reading The Print Pad Level Calibration Print.
NOTE: If any adjustments are needed, perform this procedure again after
making the adjustments. Make sure all glue and plastic residues have been
removed prior to performing this procedure again.
Adjustment Knob Measurement
Adjusting the level plate adjustment knob should initially be performed in 1-step
increments. If a finer adjustment becomes necessary, adjust the knobs in 1/2 step
increments.

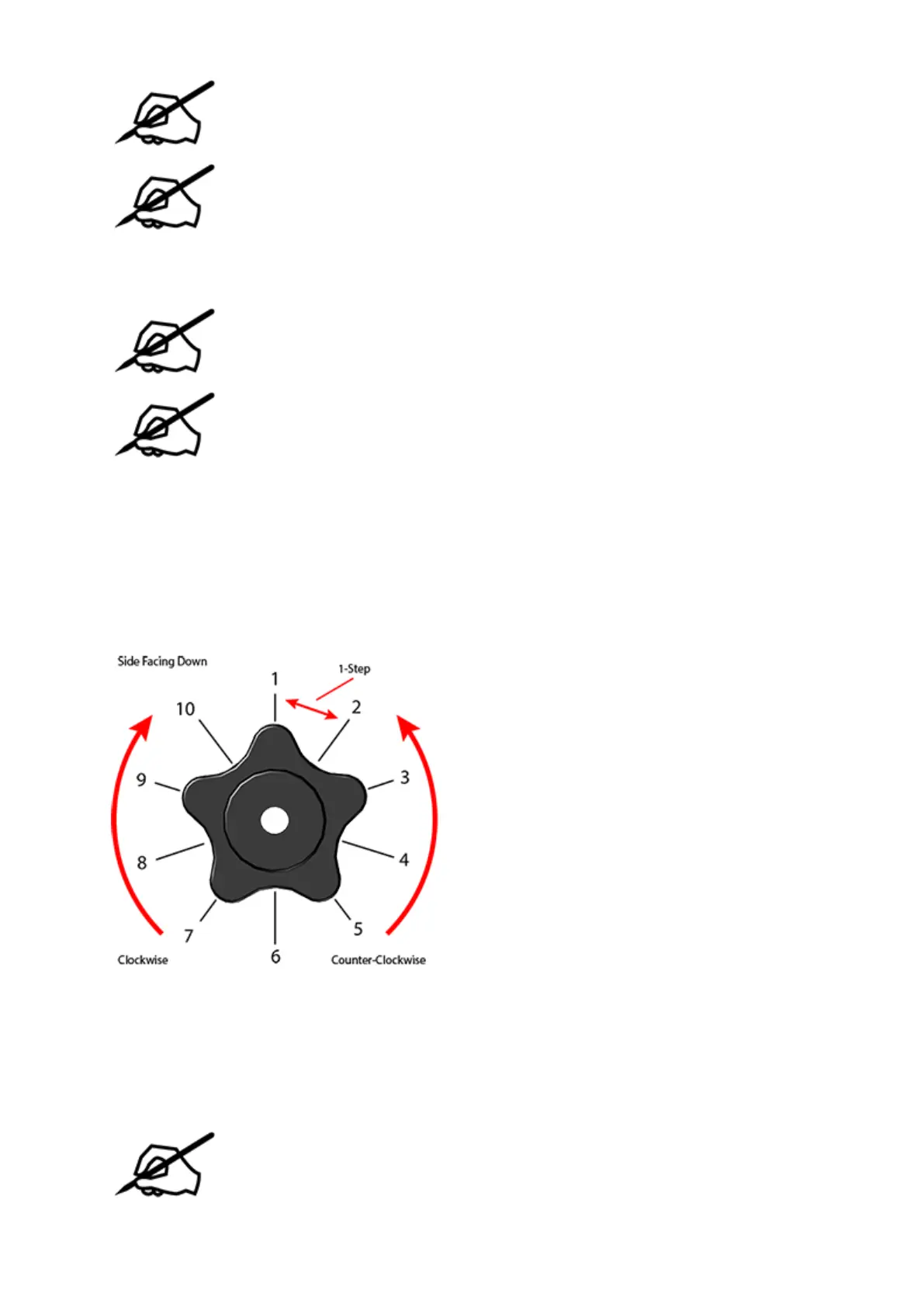

In the following illustration, the measurement between 1 and 2 is considered 1-step.
Adjusting the Z-Gap
The Z-Gap should be within specifications before adjusting the Level Gap. If adjustments to
the Z-Gap are necessary, perform the adjustments and then print the calibration file again
to verify the correct Z-Gap. A correct Z-Gap is indicated when there is no gap in the Closed
Z-Gap measurement and there is a gap in the Open Z-Gap measurement.
NOTE: The Closed Z-Gap (A) and the Open Z-Gap (B) are two different
measurements but should be read together.
