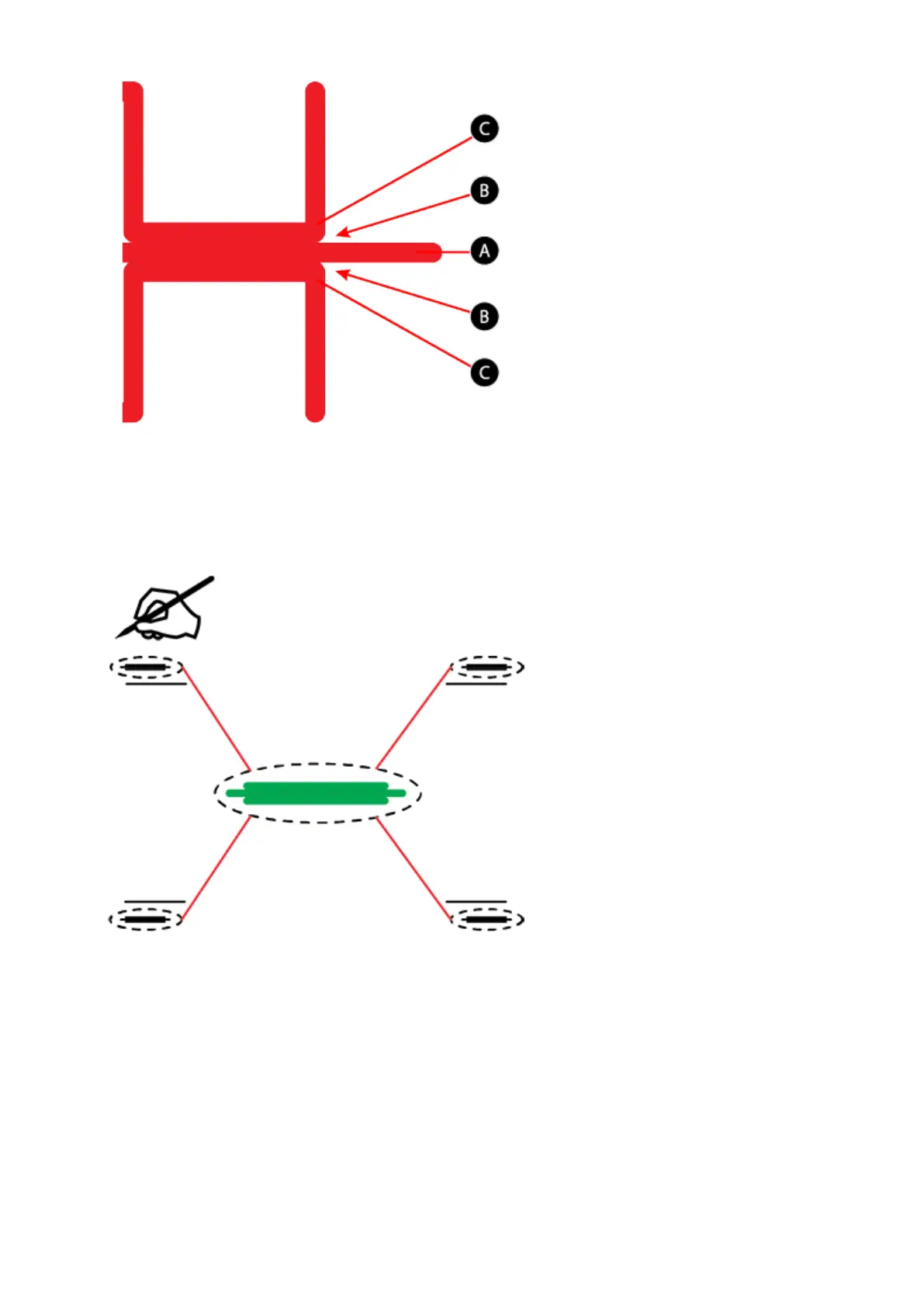

Reading the Print Pad Level Calibration Print
Correct Print Pad Level
The Print Pad Level is correct when each of the four (4) corner calibration points have no
gaps between the Print Pad Level calibration lines and the baselines.
NOTE: Before making any adjustments to the Print Pad Level, the Z-Gap
must be correct.
Incorrect Print Pad Level
In the illustration, there is an incorrect gap between the Print Pad Level calibration lines
and the baselines on the front of the print pad and no gap between the Print Pad Level
calibration lines and the baselines on the back of the print pad. The front of the print pad
needs to be raised.
To correct the Print Pad Level in this instance, turn the front print pad adjuster knob
counter-clockwise (left) 1-step. Reprint the file and verify that all four corner calibration
points are correct.
To Next Page
