7-INSTALLATION AND SET-UP (continued)

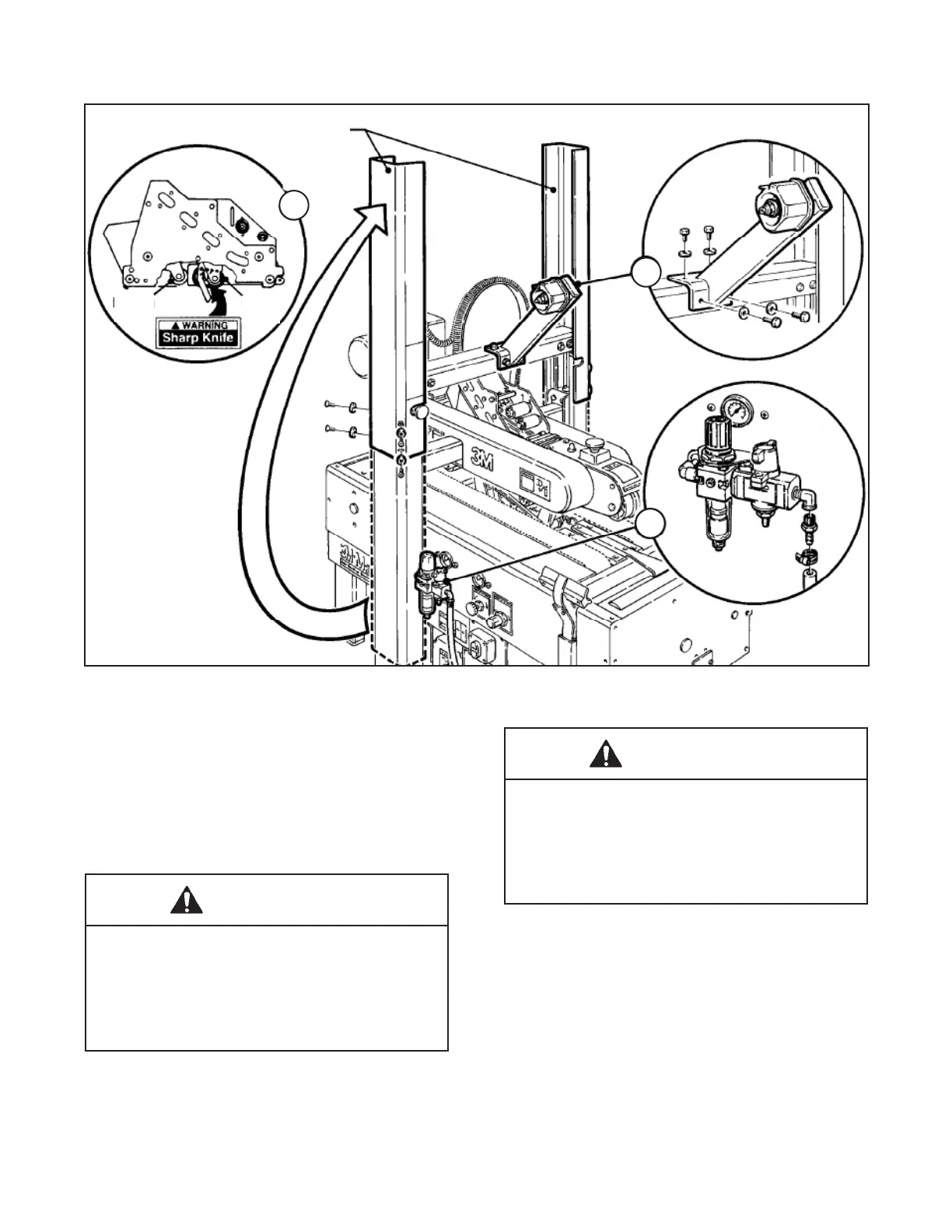

Figure 7-7 – 700rks Frame Set-Up
7. Hold taping head BUFFING ROLLER and cut
and remove cable tie that holds applying/buffi ng
arms retracted (Applying/buffi ng rollers are held
retracted for shipment - See Figure 7-6). Allow
buffi ng/applying arms to extend slowly.
Also cut and remove cable tie at rear of lower
taping head.
8. Check for free action of both upper and lower
taping heads. Push buffi ng roller into head to
check for free, smooth action of taping heads.
9. Ensure that the tape drum bracket assembly,
located on the lower taping head, is mounted
straight down, as shown in Figure 7-8A. The
tape drum bracket assembly can be pivoted to
provide tape roll clearance in certain cases.
• To reduce the risk associated with sharp
blade hazards:
− Keep hands and fi ngers away from tape
cutoff blades under orange blade
guards. The blades are extremely sharp
• To reduce the risk associated with sharp
blade hazards:
− Keep hands and fi ngers away from tape
cutoff blades under orange blade
guards. The blades are extremely sharp
700rks
2010 January
Column Guards
Buffi ng
Roller
Cable
Tie
C
A
B
Note:
Column Guards
are removed
before
Installing the
Bumper Supports
(see Figure 2-6
and Figure 6-1).
Column Guards
are then reinstalled
(as shown in a ro-
tated 180° position)
WARNING
WARNING
To Next Page
