32
8.1 Description of the Working Cycle
After having closed the top fl aps of the carton, the
operator pushes it under the top infeed end in order
to avoid the opening of the top fl aps. Further push-
ing causes the two top and bottom belts to drive the
box through the taping heads which automatically
seal the top and bottom seams. The carton is then
expelled on the exit conveyor.
8.2 Defi nition of Running Mode
The case sealer 700rks-NA has only one (automatic)
operating mode with:
- The EMERGENCY STOP BUTTON unlocked
(Figure 8-1)
- The main start switch “ON”
(Figure 8-2)
8.3.1 Normal Stop Procedure
When the main switch is turned OFF, the machine
stops immediately at any point of the working cycle.
The same thing happens in case of electrical fail-
ure or when the machine is disconnected from the
mains.
8.3.2 Emergency Stop
The LATCHING EMERGENCY STOP BUTTON is
located on the top center of the machine
(Figure 8-3).
8-THEORY OF OPERATION
2010 January
700rks-NA

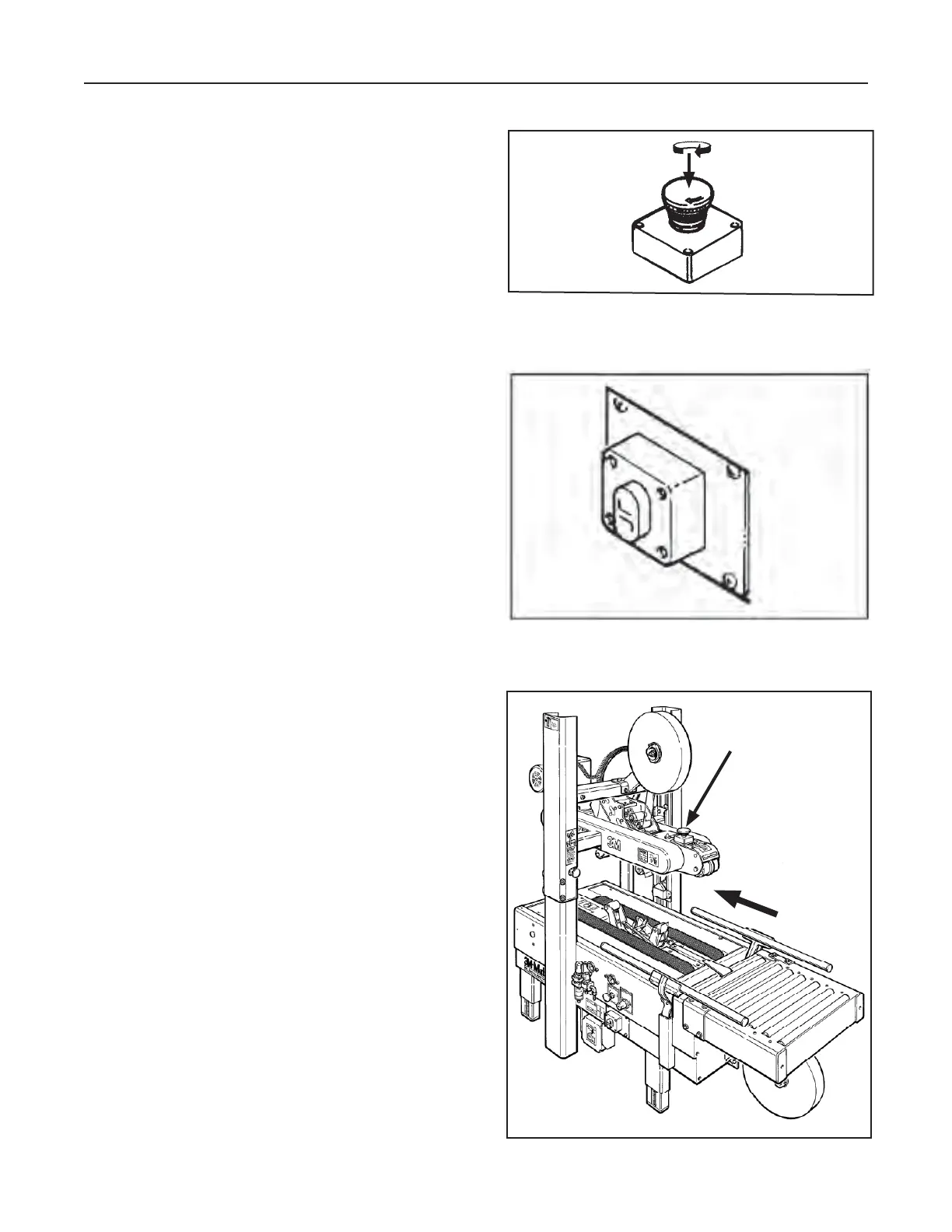

Figure 8-1
Figure 8-2
Figure 8-3
E-Stop Location
Belt
Direction
To Next Page
