Operation
Section 1
Page 26
RFL Example 2, continued
Fault resistance,
strap checks

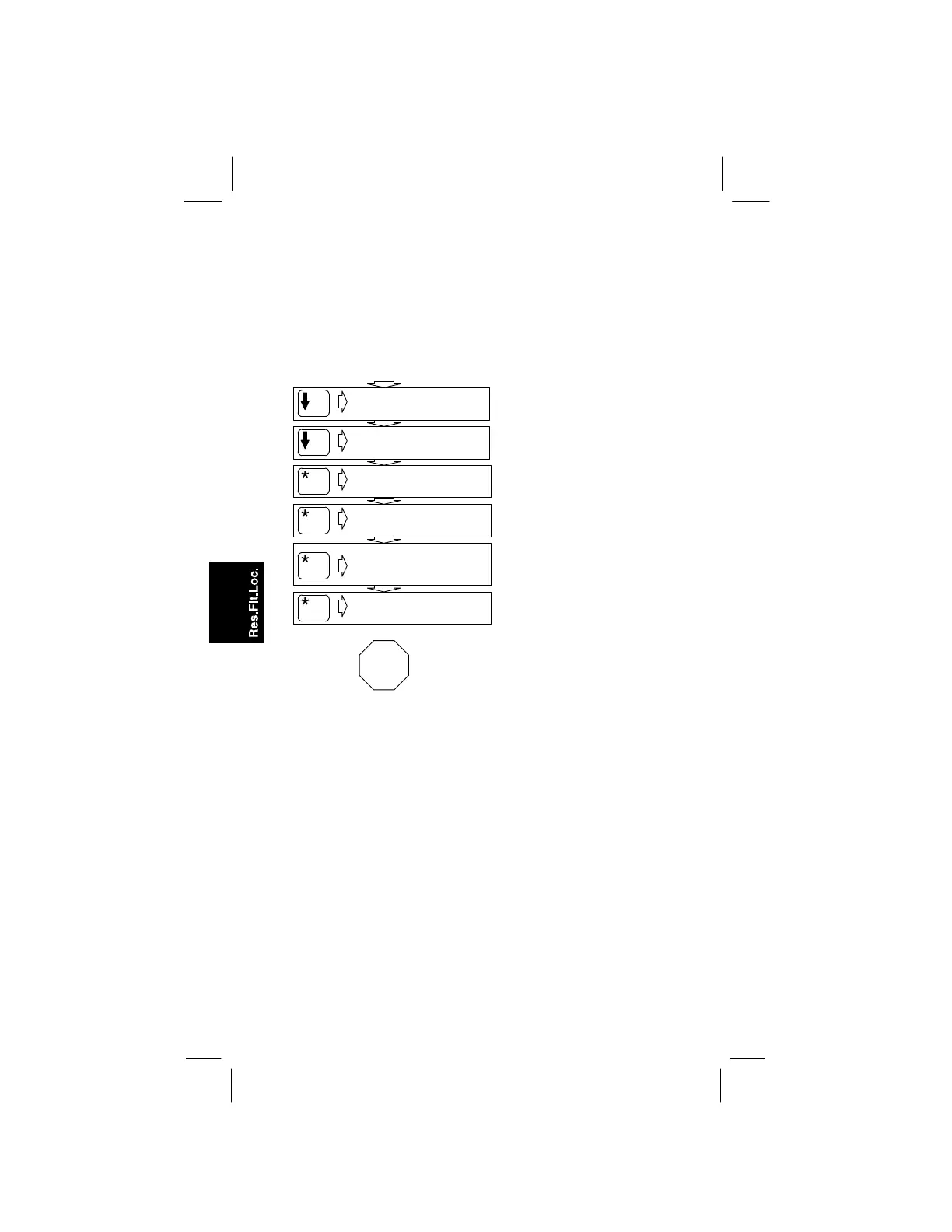

In the field, use the arrow
keys here to view the rest of
the instructions and continue
making the hookup.
The display may tell you
“wait” while the tests run.
You can press the # (pound
key) to repeat the test.
Display computed
temperature
Additional message, if
any
End
of
Test
Continue hookup as
instructed
You can press the # (pound
key) to repeat the
temperature calculation.
Continue hookup as
instructed
continued from previous page...
DTF=1210 ft/369 m
STF= 11120 ft/3319 m
DTS=12100 ft/3688 m
The numbers displayed may
vary due to variations in the
resistors in the Cable Self Test
Circuit. See page 85 for limits.
