Operation
Section 1
Page 27

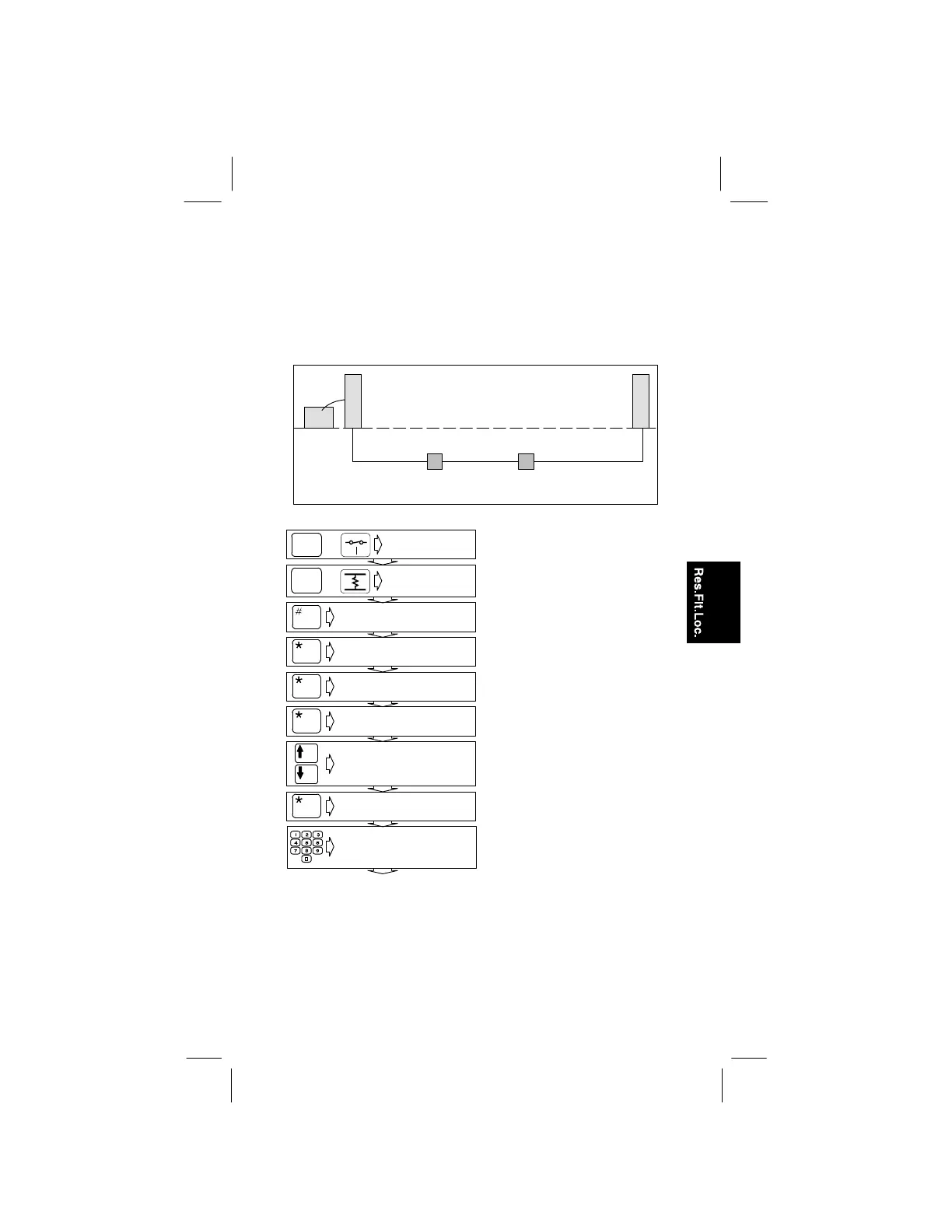

RFL Example 3
Fault Locate – Multiple Gauge
1. Set up the unit for the locate:
Strap
Unit measures DTS
Temp. 70° F or 21° C
3 sections
Test
Set
Section 1 Section 2 Section 3
Unit measure DTS
Res
Fault
Locate
Turn unit on.
Stored setups –
Change setups
Temperature
Use arrow keys to
move cursor to
“multiple gauge”
Press the
✽
(star key) to use
the stored setups if they are
correct.
continued on next page...
Gauge selection
Number of sections
in cable
Use keypad to enter
number of sections: 3
For this example, use three
sections.
On
Reset
Display distance in
units of feet or meters
For this example, press the
✽
(star key) to use the
temperature default (21
°
C or
70
°
F)
OR
OR
To Next Page
