3M S15 - Arrangement

11
Setting up
Arrangement

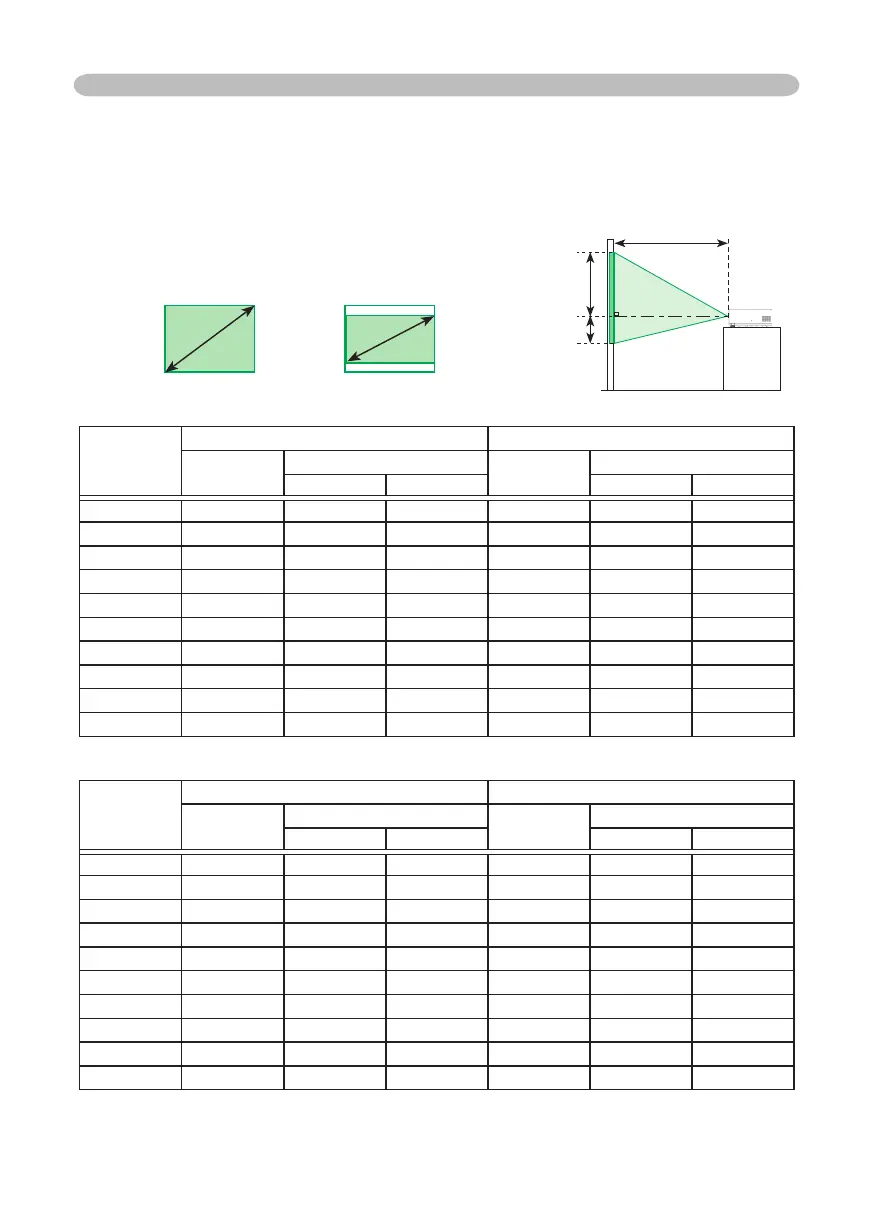

Refer to the illustrations and tables below to determine the screen size and projection distance.
The values shown in the table are calculated (±3%) for a full size screen of
800x600 for the model S15, or 1024x768 for the model X15.
4:3
(a)
16:9
(a)
(c) up
(c) down
(b)
(a) Screen size
[inch (m)]
At 4:3 Screen At 16:9 Screen
(b) Projection
distance[m(inch)]
(c) Screen height [cm (inch)]
(b) Projection
distance[m(inch)]
(c) Screen height [cm (inch)]
down up down up
40 (1.0) 1.5 (57)
8.7 (3) 52.3 (21)
1.6 (63)
1.2 (0) 48.6 (19)
50 (1.3) 1.8 (72) 10.9 (4) 65.3 (26) 2.0 (78) 1.5 (1) 60.8 (24)
60 (1.5) 2.2 (87) 13.1 (5) 78.4 (31) 2.4 (94) 1.8 (1) 72.9 (29)
70 (1.8) 2.6 (101) 15.2 (6) 91.4 (36) 2.8 (110) 2.1 (1) 85.1 (34)
80 (2.0) 2.9 (116) 17.4 (7) 104.5 (41) 3.2 (126) 2.4 (1) 97.2 (38)
90 (2.3) 3.3 (130) 19.6 (8) 117.6 (46) 3.6 (142) 2.7 (1) 109.4 (43)
100 (2.5) 3.7 (145) 21.8 (9) 130.6 (51) 4.0 (158) 3.0 (1) 121.6 (48)
120 (3.0) 4.4 (174) 26.1 (10) 156.8 (62) 4.8 (190) 3.6 (1) 145.9 (57)
150 (3.8) 5.5 (218) 32.7 (13) 195.9 (77) 6.0 (238) 4.4 (2) 182.3 (72)
200 (5.1) 7.4 (291) 43.5 (17) 261.3 (103) 8.1 (317) 5.9 (2) 243.1 (96)
(a) Screen size
[inch (m)]
At 4:3 Screen At 16:9 Screen
(b) Projection
distance[m(inch)]
(c) Screen height [cm (inch)]
(b) Projection
distance[m(inch)]
(c) Screen height [cm (inch)]
down up down up
40 (1.0) 1.3 (53)
8.7 (3) 52.3 (21)
1.5 (58)
1.2 (0) 48.6 (19)
50 (1.3) 1.7 (66) 10.9 (4) 65.3 (26) 1.8 (72) 1.5 (1) 60.8 (24)
60 (1.5) 2.0 (80) 13.1 (5) 78.4 (31) 2.2 (87) 1.8 (1) 72.9 (29)
70 (1.8) 2.4 (93) 15.2 (6) 91.4 (36) 2.6 (102) 2.1 (1) 85.1 (34)
80 (2.0) 2.7 (107) 17.4 (7) 104.5 (41) 3.0 (117) 2.4 (1) 97.2 (38)
90 (2.3) 3.1 (121) 19.6 (8) 117.6 (46) 3.3 (131) 2.7 (1) 109.4 (43)
100 (2.5) 3.4 (134) 21.8 (9) 130.6 (51) 3.7 (146) 3.0 (1) 121.6 (48)
120 (3.0) 4.1 (161) 26.1 (10) 156.8 (62) 4.5 (176) 3.6 (1) 145.9 (57)
150 (3.8) 5.1 (202) 32.7 (13) 195.9 (77) 5.6 (220) 4.4 (2) 182.3 (72)
200 (5.1) 6.8 (269) 43.5 (17) 261.3 (103) 7.5 (294) 5.9 (2) 243.1 (96)
For the model S15
For the model X15
© 3M 2005. 3M™ Digital Projector S15/X15
