CONSOLE BUTTONS
There are three (3) buttons on the SEMS II Pro Control Console:
MANUAL ALARM Red To activate the PASS alarm manually
WITHDRAW Gray To signal withdraw and scan ID card
RESET Yellow Used for various functions.
CONSOLE DISPLAY
The console display has four (4) icons that light in response to specic conditions:
EVAC/WITHDRAW
The EVAC/WITHDRAW symbol lights in the following situations:
– The Base Station sends a call to the user(s) to evacuate (ashing
red) or the user acknowledges the EVAC command (solid red).
– The user presses the WITHDRAW button on the Control Console
(ashing yellow) or the Base Station acknowledges the WITHDRAW
request (solid yellow).
– The System Integrity Alarm activates (solid red).
RANGE
The RANGE symbol lights when the user is out of range of the Base
Station. The Base Station displays a similar message.
PASS ALARM
The PASS ALARM symbol lights when the user’s PASS is activated. The
Base Station displays a similar message.
ID
The ID symbol lights in the following situations:
– The console is in the ID programming mode (solid green) or the
input from the user’s accountability tag has been accepted (ashing
green).
– An ePAR command has been initiated by the Base Station (ashing
yellow) or the ePAR command has been acknowledged by the user
(solid yellow).
USING THE SEMS II PRO WIRELESS SCBA TELEMETRY
SYSTEM
WARNING
TRAINING IS REQUIRED BEFORE USE OF THIS
EQUIPMENT IN A HAZARDOUS SITUATION.
USE OF THIS EQUIPMENT MUST BE A PART
OF A COMPLETE INCIDENT MANAGEMENT
AND PERSONNEL ACCOUNTABILITY SYSTEM
PROGRAM. THE TRAINING MUST INCLUDE
AN UNDERSTANDING OF THE LIMITATIONS
OF THE EQUIPMENT ALONG WITH EXTENSIVE
PRACTICE WITH THE SYSTEM IN A VARIETY OF
ENVIRONMENTS. ALWAYS UPDATE TRAINING
WITH EACH NEW PIECE OF EQUIPMENT.
USE OF THE SEMS II PRO WIRELESS SCBA
TELEMETRY SYSTEM WITHOUT PROPER
TRAINING MAY PLACE THE USERS AT HIGHER
RISK IN DANGEROUS SITUATIONS, WHICH
COULD RESULT IN SERIOUS INJURY OR DEATH.
The following section describes the features of the SEMS II Pro Wireless SCBA
Telemetry System. Training is required before use of this equipment. Use of
this equipment must be part of a complete incident management and personnel
accountability program.
WARNING
SEMS II PRO COMMUNICATES ONLY WITH
FIREFIGHTER RESOURCES (RESPIRATOR
USERS) USING A 3M SCOTT FIRE & SAFETY
SCBA EQUIPPED WITH THE SEMS II & SEMS
II PRO WIRELESS SCBA TELEMETRY SYSTEM
INTEGRATED INTO THE PASS DEVICE. OTHER
FIREFIGHTER RESOURCES WHO ARE NOT
USING A PROPERLY EQUIPPED 3M SCOTT
FIRE & SAFETY SCBA MAY BE ADDED FOR
ACCOUNTABILITY PURPOSES, BUT THEY
WILL NOT BE AUTOMATICALLY ACCESSIBLE
THROUGH THE COMMUNICATIONS
FUNCTIONS OF THE SYSTEM. FAILURE TO
RECOGNIZE THE STATUS OF FIREFIGHTER
RESOURCES MAY RESULT IN SERIOUS
INJURY OR DEATH,

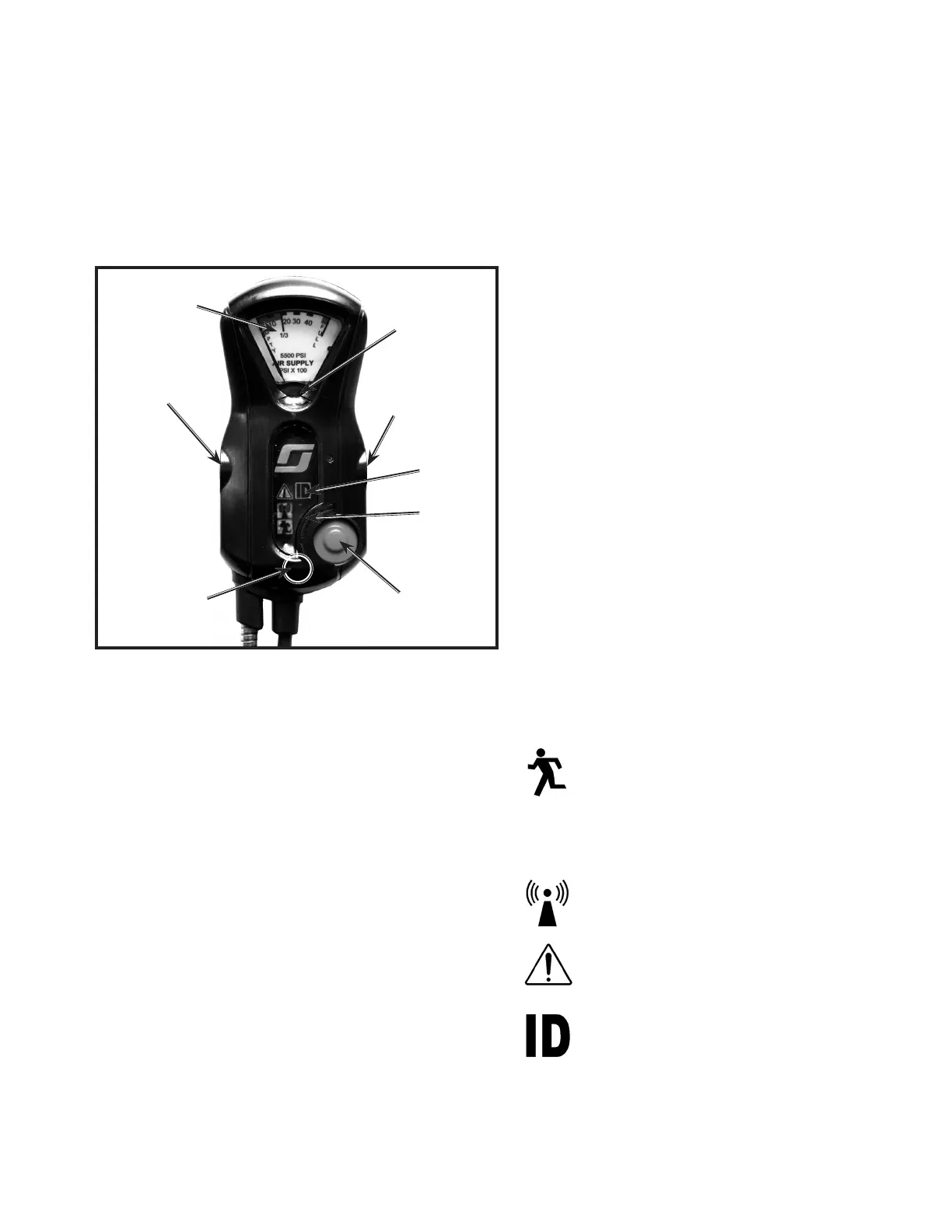

THE SEMS II PRO CONTROL CONSOLE
RESET BUTTON
(YELLOW BUTTON)
MANUAL ALARM
BUTTON
(RED BUTTON)
CONSOLE
DISPLAY
WITHDRAW
BUTTON
(GRAY BUTTON)
EXTERNAL
HEADS UP
DISPLAY
(HUD)
PASS
SIGNAL
LIGHT
AIR
PRESSURE
GAUGE
NOTE
SEMS II PRO-EQUIPPED SCBA'S HAVE
BIDIRECTIONAL COMMUNICATION
CAPABILITIES AND CAN BOTH TRANSMIT
AND RECEIVE DATA BETWEEN THE PASS
DEVICE AND THE BASE STATION.
BLUETOOTH
LED LIGHT
(BLUE)
