Page 7 of 28
P/N 595369-01 Rev B 07/19
RESET
BUTTON
(YELLOW
BUTTON)
MANUAL ALARM
(RED BUTTON)
PASS
SIGNAL
LIGHTS
WARNING
THE INFORMATION BELOW IS MEANT TO
SUPPLEMENT, NOT REPLACE, THE TRAINING,
SUPERVISION, MAINTENANCE, AND
OTHER ELEMENTS OF YOUR ORGANIZED
RESPIRATORY PROTECTION PROGRAM.
SEE THE WARNING ON THE COVER OF THIS
DOCUMENT. FAILURE TO COMPLY WITH THESE
INSTRUCTIONS MAY RESULT IN SERIOUS
INJURY OR DEATH.
WARNING
USERS OF RESPIRATORS EQUIPPED WITH
A PASS DEVICE MUST BE AWARE OF THE
PROPER OPERATION OF THE PASS DEVICE.
FAILURE TO RECOGNIZE A MALFUNCTION
OF THE PASS DEVICE AND TAKE PROPER
CORRECTIVE ACTION MAY RESULT IN SERIOUS
INJURY OR DEATH.
USING THE PASS DEVICE
ACTIVATION
Prepare the respirator for use according to the user instructions provided with
the respirator. Install the batteries in the PASS device according to the BATTERY
INSTALLATION section of this instruction.
The PASS device is automatically activated when the respirator is pressurized
by opening the cylinder valve of the respirator. To indicate activation, the Sensor
Module will sound 3 quick audible chirps and the green light located on the Control
Console will ash approximately once every three (3) seconds. The PASS device is
now in sensing mode.
Once activated, the PASS device constantly monitors motion of the respirator
backframe. The Sensor Module is located on the respirator backframe beneath the
air cylinder and contains the motion sensor and the audible alarm. If the Sensor
Module does not sense motion of the respirator for twenty (20) seconds, the PASS
device will signal a pre-alarm condition. If there is still no motion of the respirator for
the next twelve (12) seconds, the full alarm will sound.
The PASS device will remain activated until turned OFF according to these
instructions.

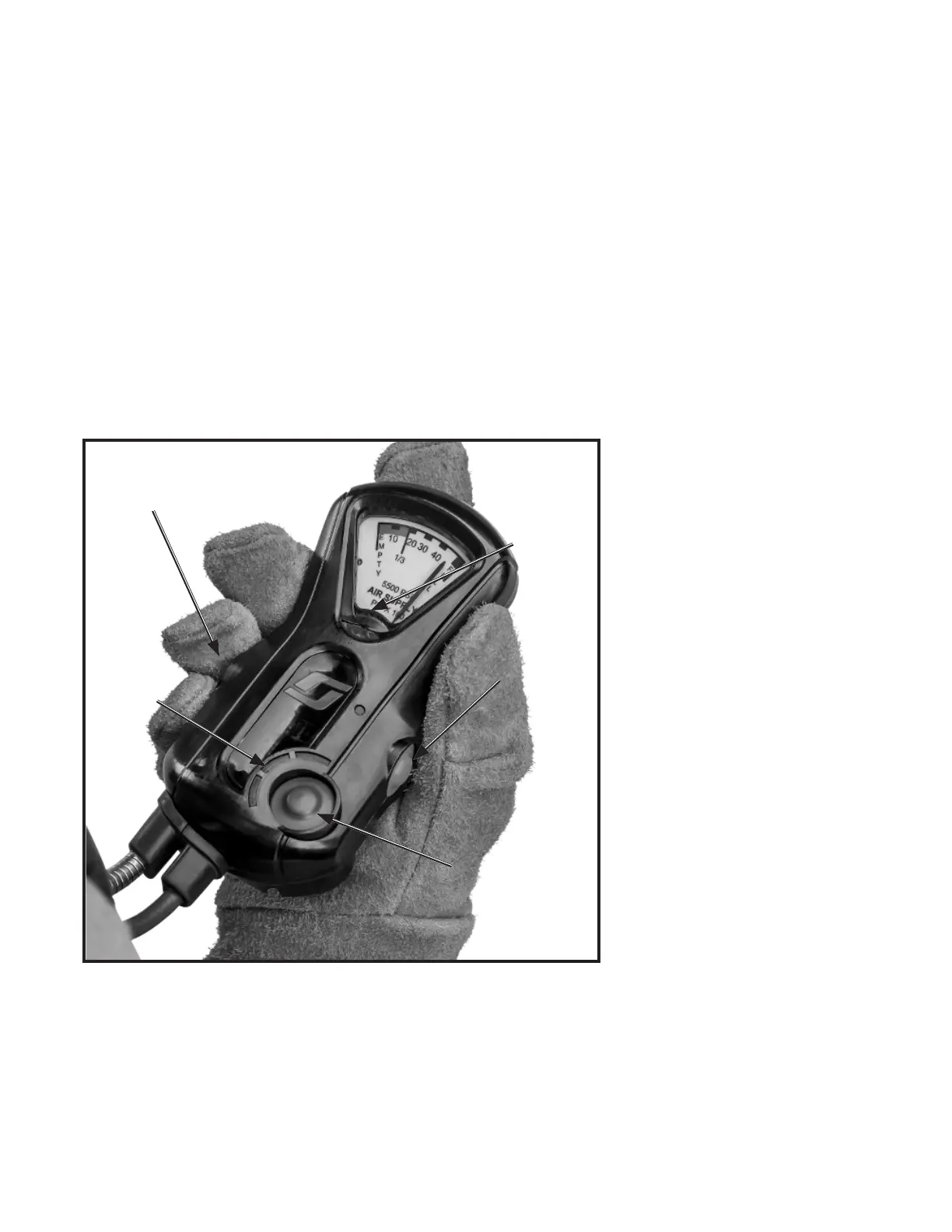

THE SEMS II PRO CONTROL CONSOLE
EXTERNAL
HEADS UP
DISPLAY
(HUD)
WITHDRAW BUTTON
(GRAY BUTTON)
