3xLogic VISIX S-Series User Manual

VISIX S-Series Network Camera | USER MANUAL v6.0
10385 Westmoor Drive, Suite 210, Westminster, CO 80021 | www.3xlogic.com | (877) 3XLOGIC
25

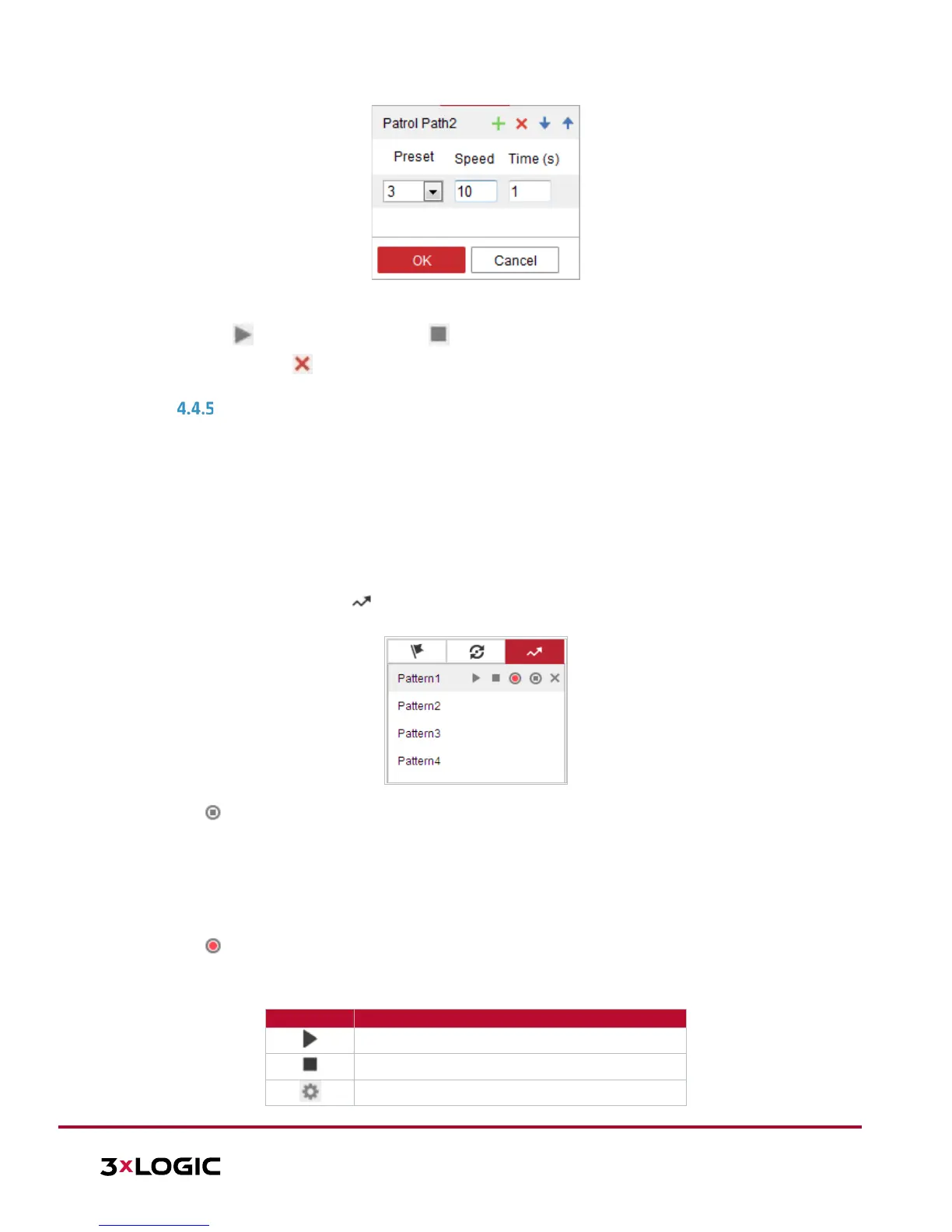

Figure 4-8 Add Patrol Path
6. Click OK to save a patrol.
7. Click to start the patrol, and click to stop it.
8. (Optional) Click to delete a patrol.
SETTING/CALLING A PATTERN
Purpose:
A pattern is a memorized series of pan, tilt, zoom, and preset functions. It can be called on the pattern settings
interface. There are up to 4 patterns for customizing.
NOTE: Pattern function varies depending on different camera models.
 Setting a Pattern:
Steps:
1. In the PTZ control panel, click
to enter the pattern settings interface.
2. Select a pattern number from the list as shown in Figure 4-9.
Figure 4-9 Patterns Settings Interface
3. Click
to enable recording the panning, tilting and zooming actions.
4. Use the PTZ control buttons to move the lens to the desired position after the information of PROGRAM
PATTERN REMAINNING MEMORY (%) is displayed on the screen.
 Pan the camera to the right or left.
 Tilt the camera up or down.
 Zoom in or out.
 Refocus the lens.
5. Click
to save all the pattern settings.
 Buttons on the Patterns interface:
Buttons
Description
Start the selected patrol/pattern.
Stop current patrol/pattern.
Set the selected preset/patrol.
