VISIX S-Series Network Camera | USER MANUAL v6.0
10385 Westmoor Drive, Suite 210, Westminster, CO 80021 | www.3xlogic.com | (877) 3XLOGIC
38

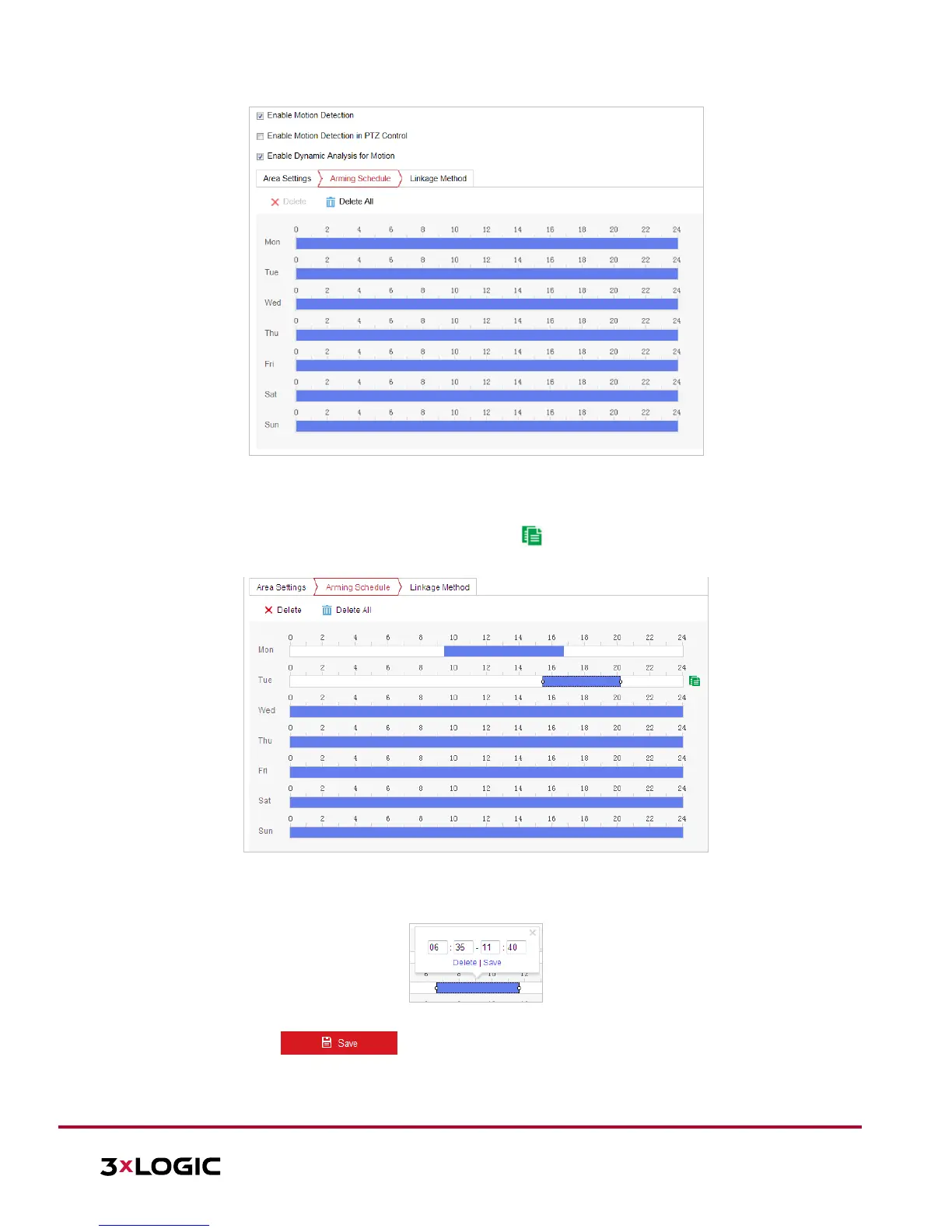

Figure 5-11 Arming Schedule
(2) Select the timeline of a specific day, and drag the mouse to set the arming schedule (the
start time and end time of the arming task).
(3) After you set the scheduled task, you can click and copy the task to other days
(optional).
Figure 5-12 Arming Time Schedule
(4) After setting the arming schedule, you can click a segment to display the segment arming
settings interface to edit the segment record parameters (optional).
Figure 5-13 Segment Arming Settings
(5) Click to save settings.
NOTE: The time of each period cannot be overlapped. Up to 8 periods can be configured for each
